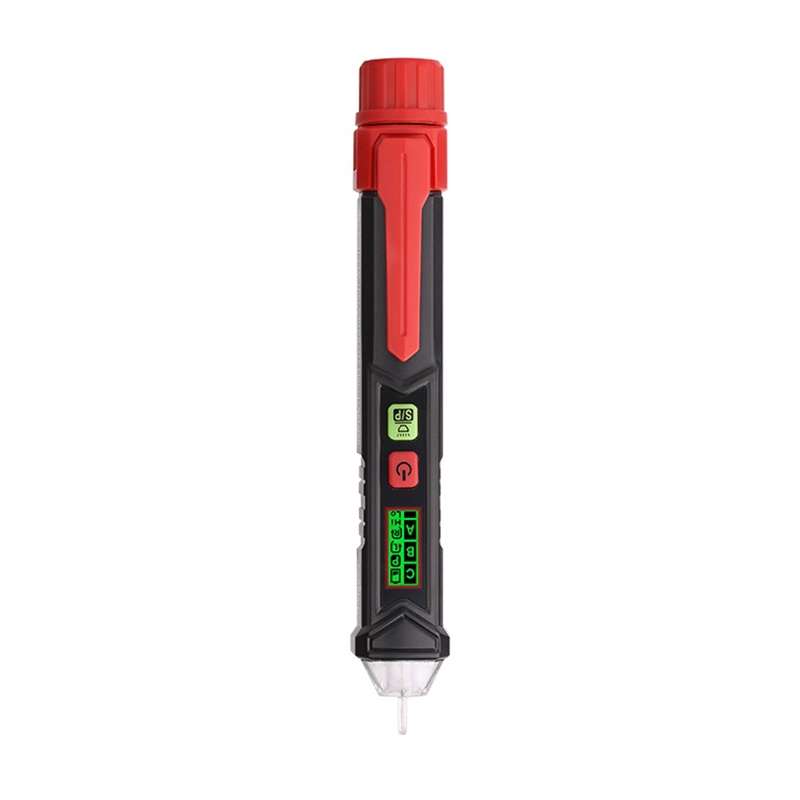

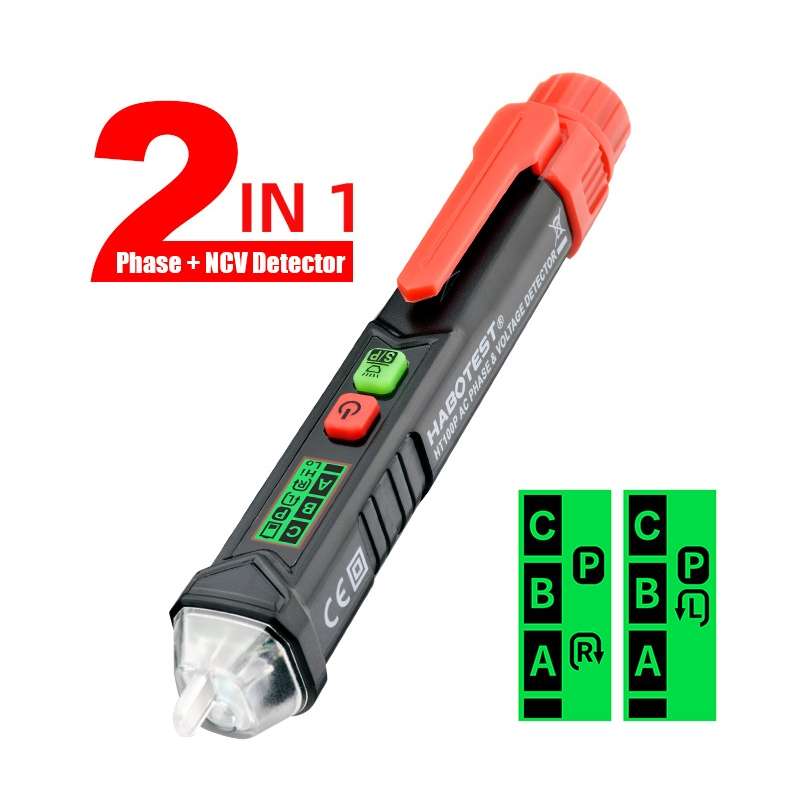

HABOTEST HT100P Non Contact 3 Phase Rotation Indicator AC LCD Display Detector Pen Tester

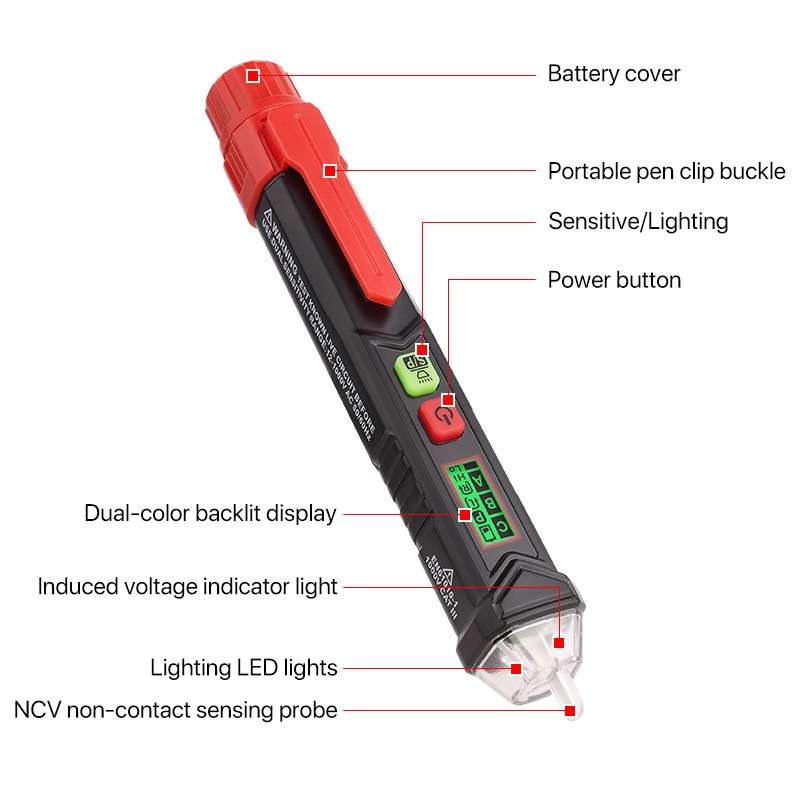

Feature
1. NCV High/Low Sensitivity Adjustable: dual sensitivity AC voltage range of 12V~1000V & 48V~1000V with switching S button.
2. AC Voltage Detection: detect AC voltage by contacting the power socket or getting near the live wire with non-contact tip.

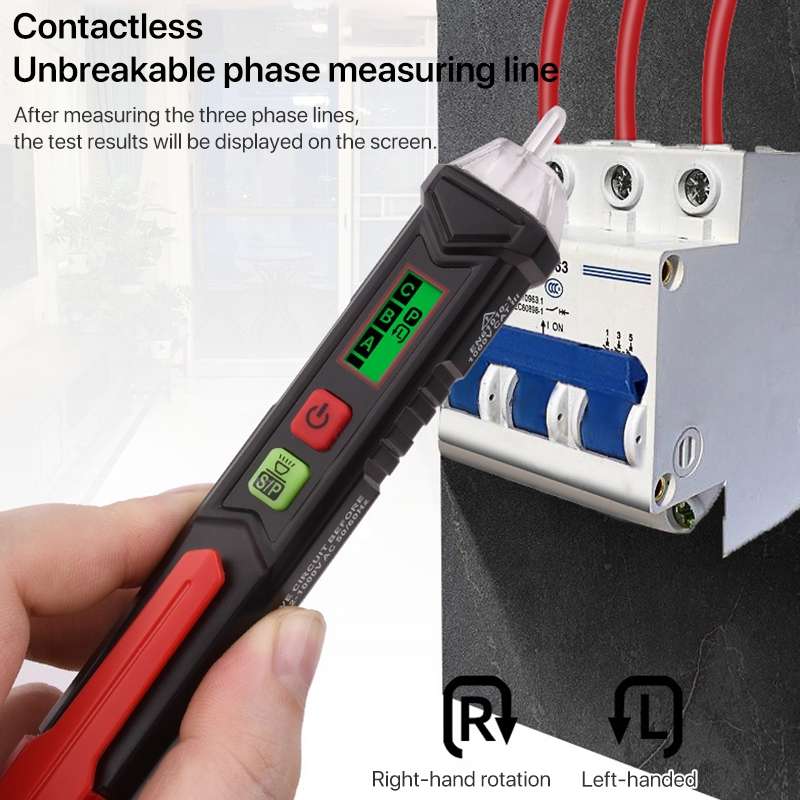

3. NCV Phase Sequence Detection: designed with the function of phase sequence measurement.
4. LED Illumination: with flashlight for auxiliary lighting up the working area, convenient to use at night or dark corner.
5. Other Functions: breakpoint checking, high voltage circuit alarm function, live wire measurement and full wire measurement.
6. Auto Power-off: automatically turn off when no operation and no detection of AC voltage after 3 minutes.

Specifications
1. Voltage detection range:
- High sensitivity: AC12-1000V
- Low sensitivity: AC48-1000V
2. Frequency: 50/60Hz
3. Alarm mode: sound and light alarm
4. Probe shape: flat and long
5. Backlight: red and green two colors
6. Zero live line judgment:
- Green: Neutral line
- Red: Live line
7. Signal strength display: analog bar four-level sensitivity
8. Signal strength indication method: the beep changes from slow to fast, the backlight color changes from green to red, and the analog bar changes from low to high
9. Power supply method: AAA battery x2 (not included)
10. Size: 157x27x23mm
11. Weight: about 32g
