HackRF One 1MHz to 6GHz Radio Platform Development Board Software-Defined RTL SDR Demoboard Kit Dong

20 available / new

R3,207.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3508

93.41 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643380553

Common problem: Q. The computer cannot find the machine. / USB is not recognized. A: Requires firmware installation. If the firmware still does not work after you install the firmware, you can reflash the firmware.
Other files:

Feature: HackRF One is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz. Designed to enable test and development of modern and next-generation radio technologies, HackRF One is an open-source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation. Specifications: - 1MHz to 6 GHz operating frequency - Half-duplex transceiver - Up to 20 million samples per second - 8-bit quadrature samples (8-bit I and 8-bit Q) - Compatible with GNU Radio, SDR#, and more - Software-configurable RX and TX gain and baseband filter - Software-controlled antenna port power (50 mA at 3.3 V) - SMA female antenna connector - SMA female clock input and output for synchronization - Convenient buttons for programming - Internal pin headers for expansion - Hi-Speed USB 2.0 - USB-powered - Open-source hardware

Parameters: - Frequency band: 1MHz-6Ghz - Data bandwidth: 20MHz - Sampling accuracy ( ADC/DAC) : 8BIT - Sampling speed ( ADC/DAC): 20Mbps - Interface: USB2.0 - Open-source - Maximum transmitting power: 10dbm - 64QAM transmitting EVM: 1.5% - Complex sampling bandwidth: 20Mhz Hardware: - Mixer RFFC5072: 80MHz-4200MHz - Wireless bandwidth RF transceiver MAX2837: 2.3Ghz-2.7Ghz - Processor LPC4330: Main frequency 204MHz - Amplifier MGA-81563: 0.1-6Ghz, 3V, 14dbm

Package includes:

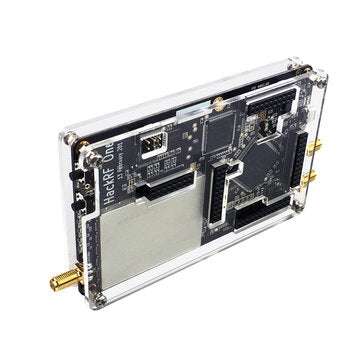

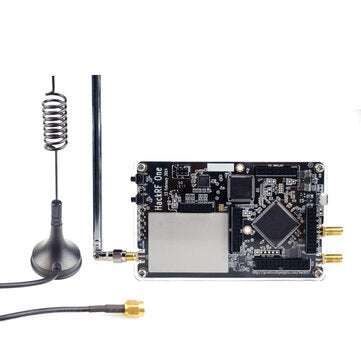

1 x HackRF One board with Acrylic Shell 1 x UHF Antenna (40Mhz-6GHz)

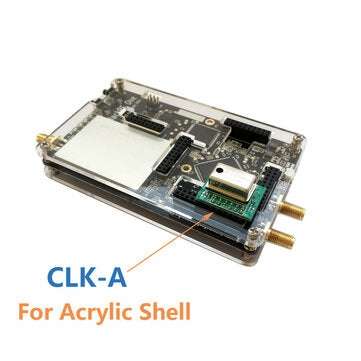

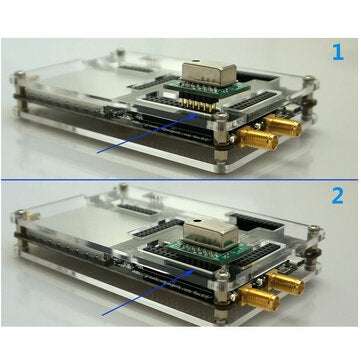

1 x UHF/VHF Antenna 1 x USB Cable 1 x TCXO clock 0.1PPM
