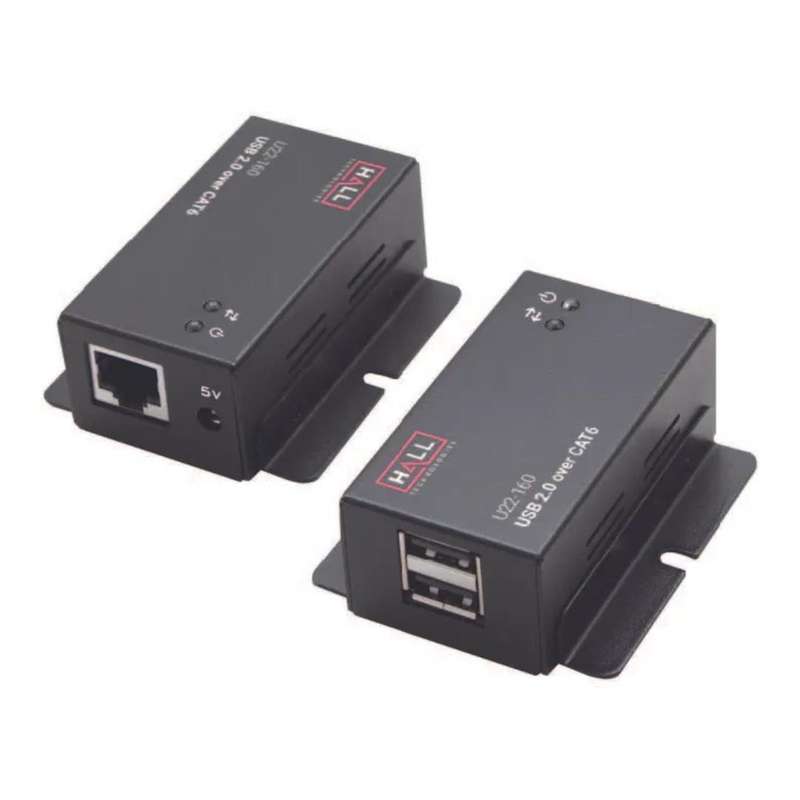

Hall Technology 2-Port Type-A to UTP Extender Adapter U22-160
The U22-160 extends your host PC's USB 2.0 port across a single Cat5e/6 cable to 50m with data rates up to 480 Mb/s.
In most instances, no power supply is needed for either side as the local (host) side gets its power from the PC and it sends PoC (Power-over-Cable) to the remote (device) side. However for convenience a power supply is included that can be plugged in to the remote end for power hungry USB devices. The remote end has a two port hub built-in to allow connection of 2 USB Devices. The U22-160 is a perfect solution for industrial and commercial applications.
This product can be used to extend a broad range of USB devices like webcams, printers, keyboards, and disk drives up to 50 m using single Cat 5/6 cable.
- Extends USB 2.0 devices up to 50m using Cat5
- Supports high-speed, full-speed, and or low-speed devices
- Status LEDs indicate Power and Data
- Supports Hot Plug/Unplug
- Can power most USB devices without power supply
- Plug and Play installation
- Surface/Wall mount brackets included
Specifications
Bus Interface: USB 2.0
Number of Ports: 2 (on the Remote Unit)
Local unit: 1 x USB type B female; 1 x RJ45 Ethernet female; 1 x DC Power supply
Remote Unit: 2 x USB type A female; 1 x RJ45 Ethernet female; 1 x DC Power supply
LEDs: 1 x Power, 1 x Data
Max Data Rate: 480 Mbps
Max Cable Distance: 50m
Cable Type: Cat 5e/6/6a
Power Supply: 5V DC 2A
Operating Temperature: 0 to 50 °C
Operating Humidity: 20% - 80% RH
Dimensions: 65 x 35 x 25 mm
Weight: 450g
