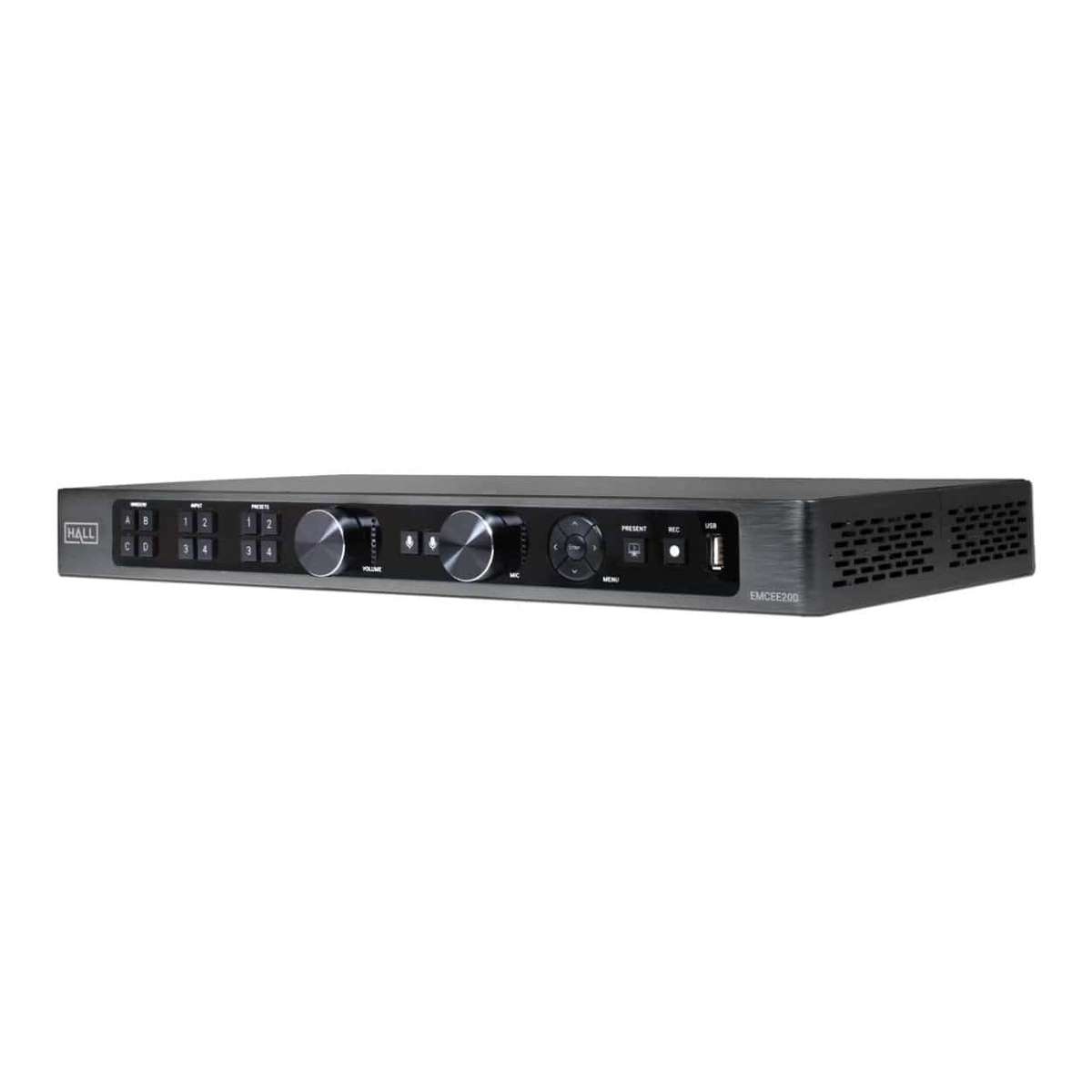

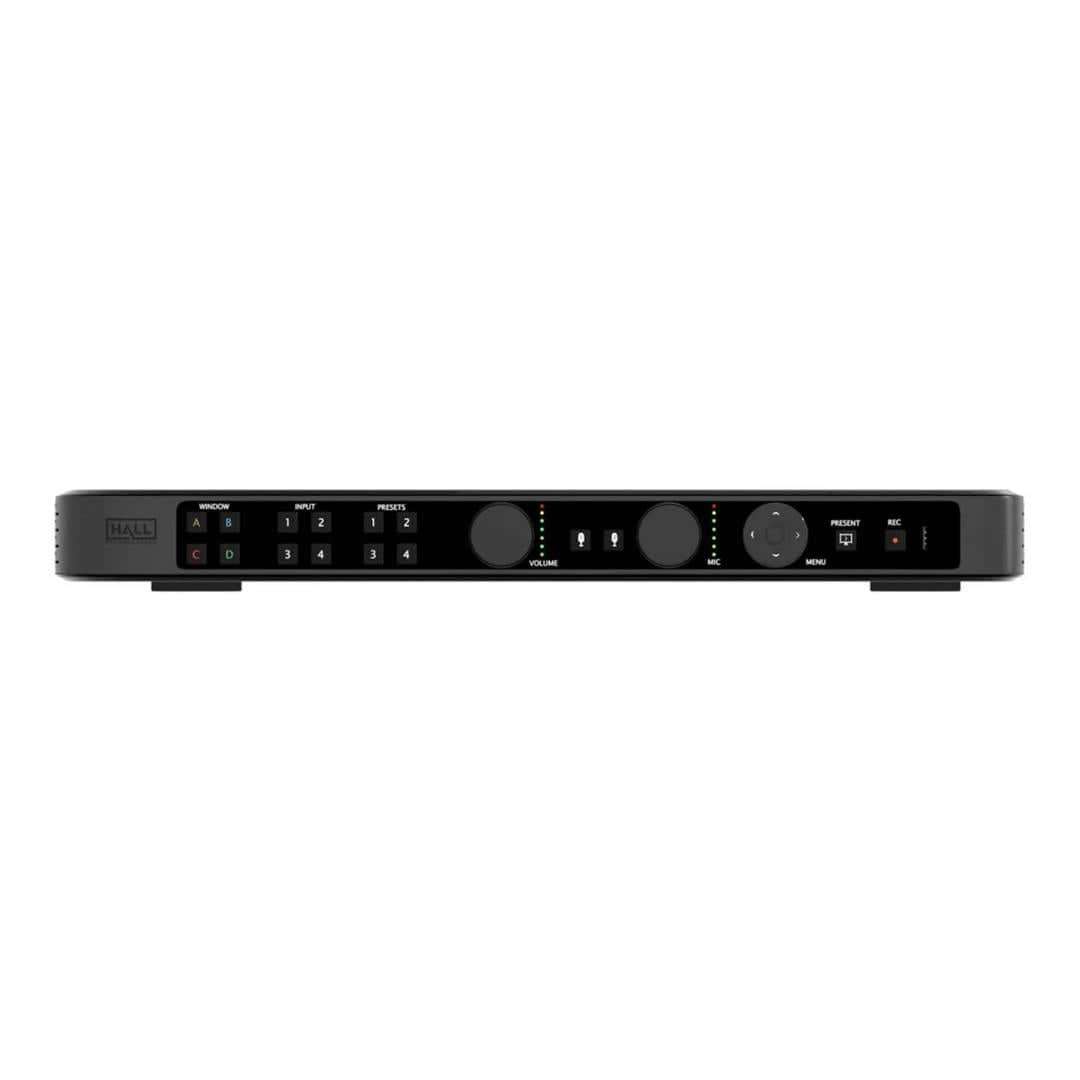

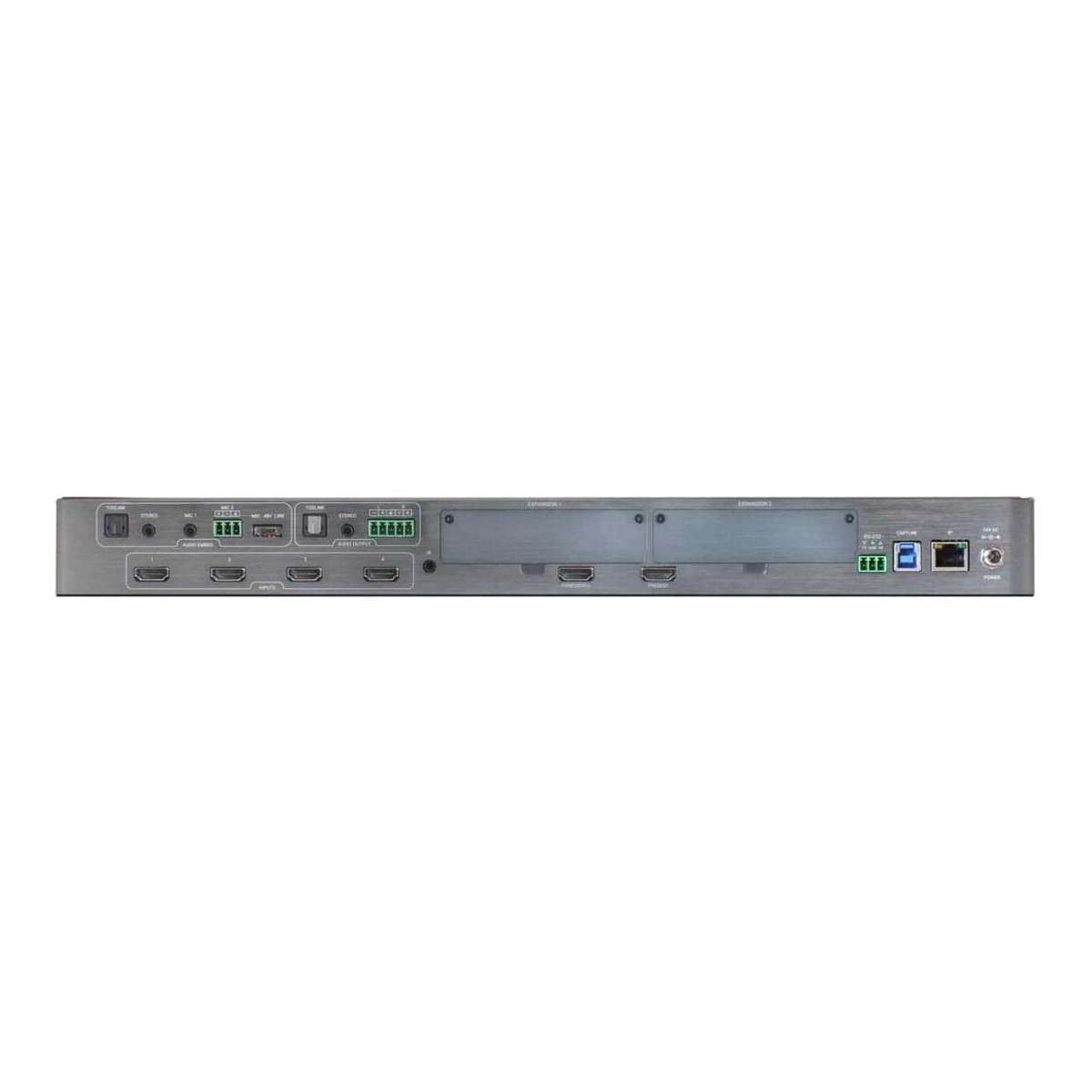

Hall Technology EMCEE200 Multiview Presentation Switcher
EMCEE200 is a multiview presentation switcher with Picture-in-Picture (PIP) and Picture-Over-Picture (POP) capabilities. It can process up to four 4K-60 video sources with zero latency and gives CONFIDENCE and PRESENT HDMI outputs in different window layouts. With a built-in dual MIC mixer and a wide range of Audio Embedding and De-Embedding options, EMCEE is a perfect companion for any type of presentation. EMCEE can not only record the presentation to an external storage device but also provides USB3.0 4K capture to stream live with no additional hardware.
- Virtually Seamless Switching
- 4K-60 4:4:4 on all Inputs and Outputs
- Picture-In-Picture (PIP) and Picture-Over-Picture (POP) with Multiview
- Recording and 4K Soft Codec Support
- Dual MIC Mixer
- Audio Embedding and De-Embedding
- Confidence and Present Output with Splash Screen Support
- Built-in WEB Page with IR, RS-232, TCP/IP, and Telnet Control
- HDBaseT™ 3.0 and Amplifier Plugin Module Support
Specifications
Mount: 1RU Rack
Dimensions: 440 mm W x 200 mm D x 45 mm H
Housing: Aluminum
ESD: Human body model — ±12kV [air-gap discharge] & ±8kV
Supply: 12V 3A DC (US/EU Standards/CE/FCC/UL Certified)
Consumption: 32 Watt Max
Video Standards
Input: 4x HDMI 2.0 a
Output: 2x HDCP 1.4/2.2; 18 Gbps BandwidthUp to 4K2K-60 (4:4:4)
USB 3.0 Capture: USB 3.0 SuperSpeed Type-B Female350MBpsCompatible with Windows 7/8.1/10, Mac, and Linux OSCapture up to 4K2K-60 4:4:4 8Bits
USB Recording: USB 2.0 Type-B Female1080p-60 Recording
Audio
HDMI: PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D-TrueHD, DTS-HD 16/20/24 bits per sample up to 96kHz Sampling Rate
MIC Input: 1x 3.5mm Audio Jack1x 3pin Phoenix Connector48V Phantom and Line level audio support
Embedding: 1x Digital TOSLINK1x STEREO L/R 3.5mm Audio Jack
De-embedding: 1x Digital TOSLINK1x STEREO L/R 3.5mm Audio Jack1x BAL-STEREO 6pin Phoenix Connector
Control
RS232: 115200 bps3pin Phoenix Connector
IP: Embedded WEB-GUI, PC-GUI (Window Only)TCP/IP, Telnet Commands
IR Remote: 36KHz
Temperature
Operation: 0~40°C [32~104°F]
Storage: -20~60°C [-4~140°F]
Relative Humidity: 20~90% RH [non-condensing]
