Product details
Water flow sensor flowmeter Hall flow sensor Water control 1-30L/min 2.0MPa is available now from our US and UK warehouse
Excelent shipping to US and UK in 3-6 business days
ship to Canada, Brazil in 7-10 days in US warehouse
ship to European countries in 7-10 days in UK warehouse

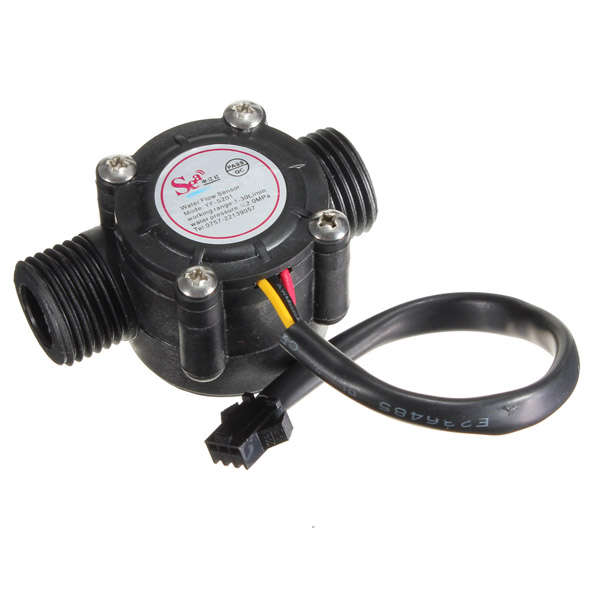

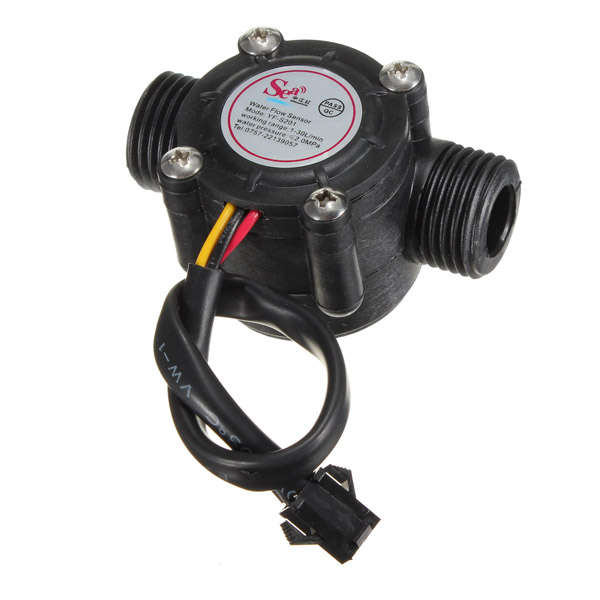

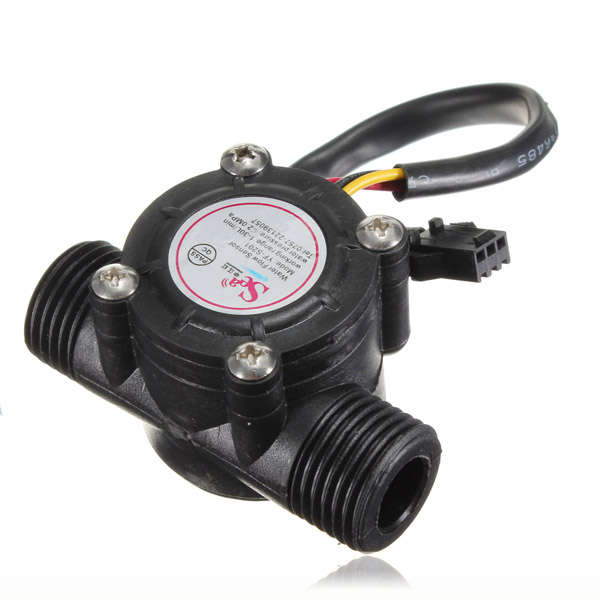

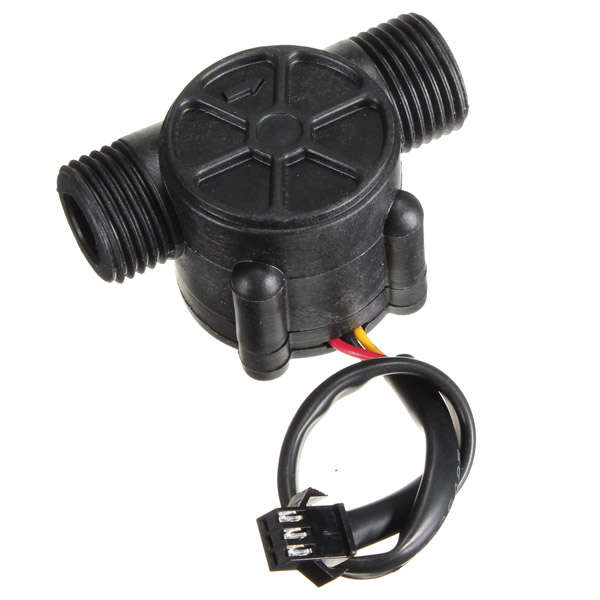

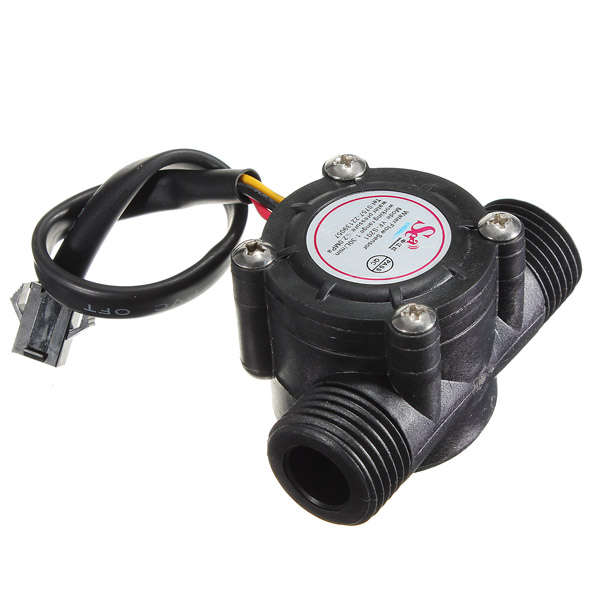

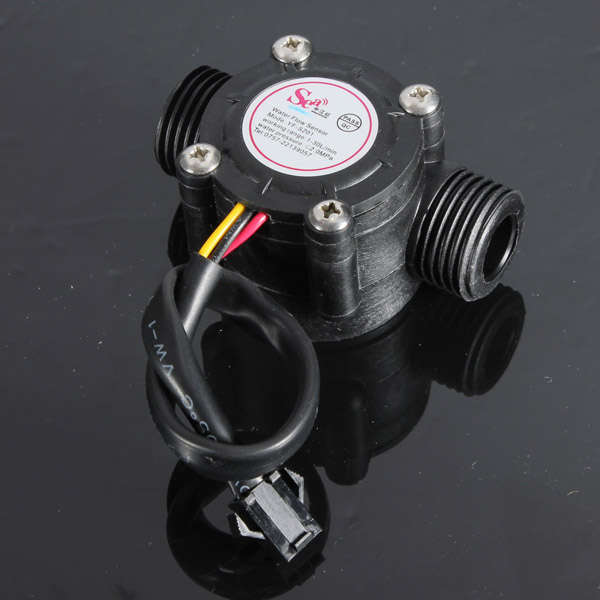

Hall Water Flow Sensor Flowmeter Water Control 1-30L/min 2.0MPa
Description:
This product mainly used for water testing, water cooling system
High amplitude ≥ 4.6V
Low amplitude ≤ 0.5V
Electric strength 1250V/min
Insulation resistance ≥ 100MΩ
Hydrostatic pressure testing ≤ 2.0Mpa
Specification:
The lowest rated working voltage: DC4.5 5V-24V
Maximum operating current: 15 mA (DC 5V)
Working voltage range: DC 5~18 v
Load capacity: ≤ 10 mA (DC 5V)
Use temperature: ≤ 80°C
Operating humidity range: 35%~90%RH (no frost)
Allowing pressure: pressure 2.0Mpa
Temperature: -25~+80 °C
External threads: 1/2"
Outer diameter: 20mm
Intake diameter: 9mm
Outlet diameter: 12mm
Application:
Water heaters, credit card machines, water vending machine, flow measurement device!
Package included:
1x Water flow sensor
