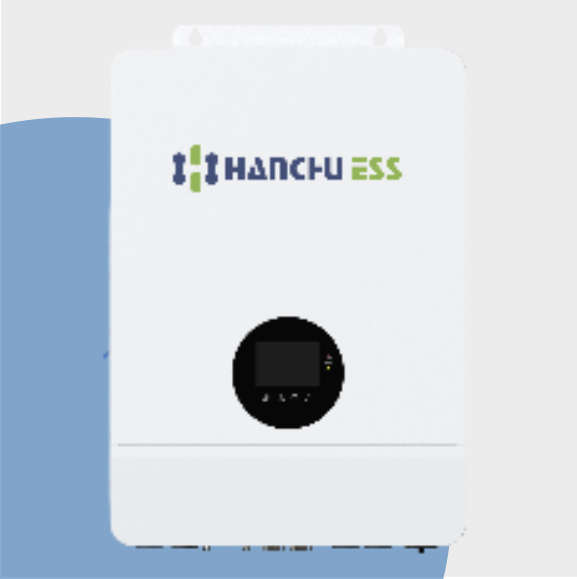

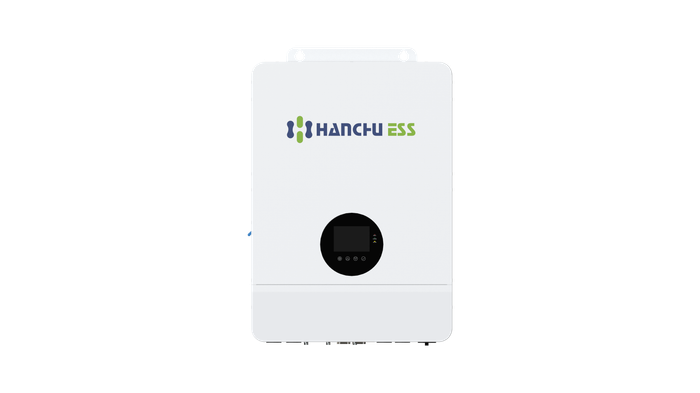

Hanchu 10kW Offgrid Inverter (HESS-OF-S-10.0K)

Introducing the HESS-OF-S-10K: High-Power, Intelligent Hybrid Inverter for Advanced Energy Management

The HESS-OF-S-10K is a cutting-edge all-in-one hybrid inverter designed to meet the demanding energy needs of modern households with exceptional efficiency and intelligence.

Key Features:

• High Capacity: 10,000W rated output with 15,000W peak power
• Dual MPPT: Up to 99.9% efficiency with 22A PV input current per tracker
• Versatile Battery Support: Compatible with Li-ion, Lead-Acid, and user-defined batteries
• Pure Sine Wave Output: Ensures clean, stable power for sensitive electronics
• Powerful Charging: Up to 200A solar charging current
• Intelligent BMS Communication: Supports Li-ion battery BMS with dual activation
• Time-Slot Function: Optimize energy usage with peak-valley tariff

Technical Specifications:

• Output: 230Vac, 50/60Hz, Pure Sine Wave
• Battery: 48Vdc nominal (40-60Vdc range)
• PV Input: Dual MPPT, max 5,500W per tracker, 125-425Vdc MPPT range
• Max. Charging Current: 200A (MPPT + Mains/Generator)
• Transfer Time: 10ms typical
• High Inverter Efficiency: Up to 92%

Advanced Features:

• Dual MPPT Trackers: Maximize energy harvest from different solar array orientations
• High PV Input Current: 22A per tracker for high-power solar arrays
• Flexible Battery Options: Works with various battery types and supports BMS communication
• Smart Energy Management: Time-slot function for cost savings with variable electricity rates

Safety and Reliability:

• 360-degree security from hardware to software
• International certifications: IEC62109-1, IEC62109-2, EMC standards
• IP20 protection for indoor use
• Operating Temperature: -15°C to 55°C (derating above 45°C)

User-Friendly Design:

• Modern aesthetic look with industrial-grade build
• Easy installation and operation
• Compact dimensions: 620x445x130mm
• Weight: 27kg
• Low noise operation: 60dB

Connectivity:

• Multiple Interfaces: RS485, CAN, USB, Dry contact
• Optional WiFi/GPRS module for enhanced remote monitoring and control

The HESS-OF-S-10K is the perfect solution for larger residential and small commercial applications, providing powerful, efficient, and intelligent energy management. Whether you're looking to optimize solar power usage, ensure robust backup power, or manage your energy consumption intelligently, the HESS-OF-S-10K delivers exceptional performance and flexibility.

Experience the pinnacle of home energy management with the HESS-OF-S-10K where high power meets smart technology to power your world efficiently and sustainably.
