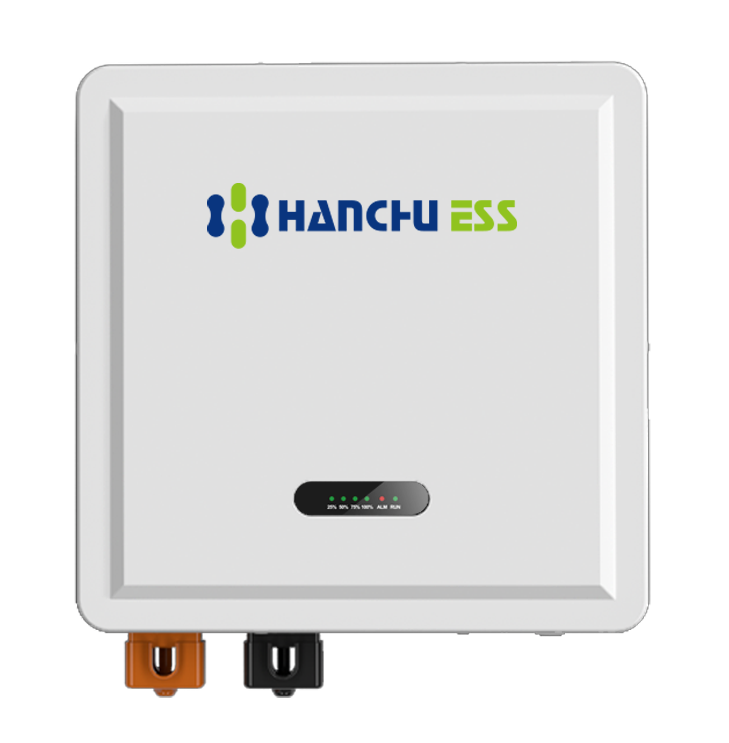

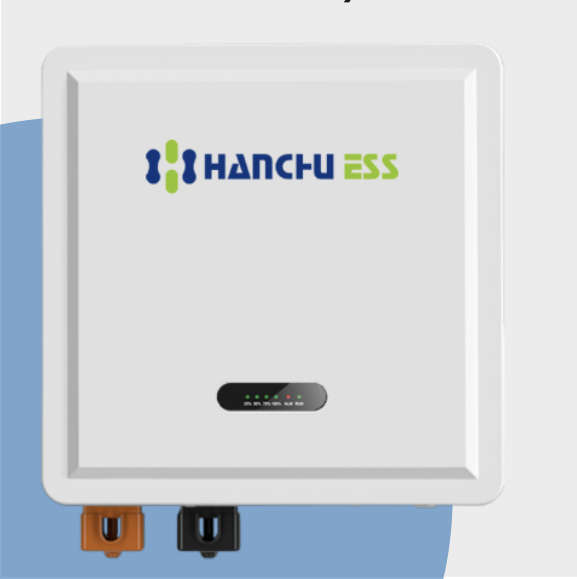

Hanchu 2.56kW Lithium Battery - 25.6V - DOD95% (HOME-ESS-LV2.56K)

"Introducing the HOME-ESS-LV-2.56K: Your Smart, Safe, and Efficient Home Energy Solution

The HOME-ESS-LV-2.56K is a state-of-the-art energy storage system designed for modern homes. This versatile unit combines cutting-edge technology with user-friendly features to deliver reliable power and energy independence.

Key Features:

• Modular Design: Scalable from 2.56kWh to 20.48kWh to suit various energy needs
• Ultra-Thin Profile: Sleek 340x160x340mm dimensions for easy handling and installation
• High Performance: 100A rapid charge and discharge capability per unit
• Maximum Efficiency: 95% Depth of Discharge for optimal energy utilization
• Smart Technology: Real-time power display and intelligent auto-addressing
• Flexible Communication: Supports both CAN and RS485 protocols
• Superior Safety: Top-quality LFP (LiFePO4) batteries with advanced BMS protection

Technical Specifications:

• Nominal Voltage: 25.6V (Operating range: 21.6-28.8V)
• Weight: 24.5Kg
• Temperature Range: Charging 0°C to 50°C, Discharging -20°C to 55°C
• IP54 Rated: Protected against dust and water splashes
• Certifications: IEC 62619, CE, UN38.3 for safe transportation

Ideal for both new installations and retrofits, the HOME-ESS-LV-2.56K offers a concealed wall bracket for seamless integration into your home. With its natural convection cooling and parallel connection capability of up to 16 units, this system provides a scalable and efficient solution for your energy storage needs.

Documents

Hanchu 2.56kW Lithium Battery - 25.6V - DOD95% (HOME-ESS-LV2.56K) - Datasheet
