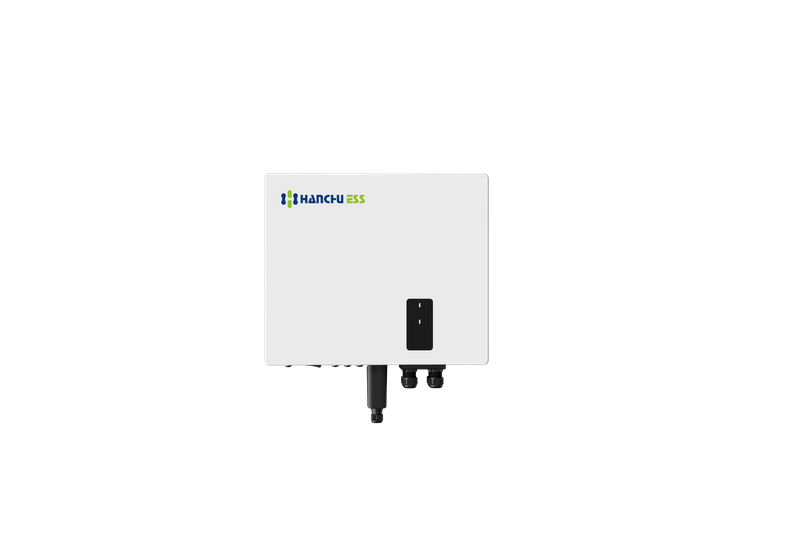

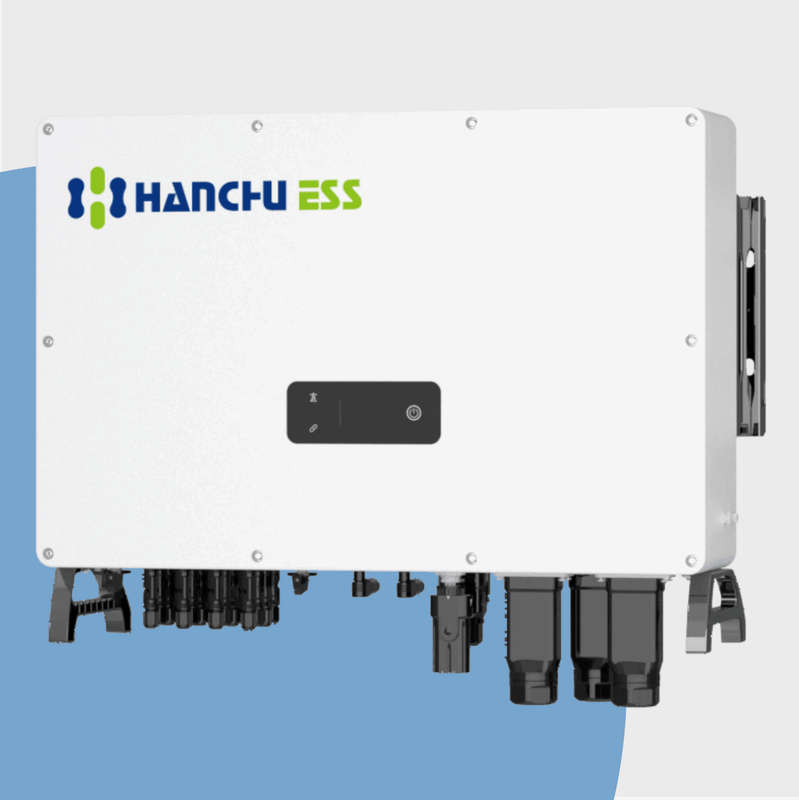

Hanchu 50kW Hybrid Inverter 3P HV (CESS-HY-50K)

Hanchu 25-50kW Hybrid Inverter 3 Phase (CESS-HY-25-50K) Product Description

Product Overview: The Hanchu 25-50kW Hybrid Inverter is an advanced three-phase solution designed for commercial and industrial applications. This powerful hybrid inverter series combines high efficiency, reliability, and intelligent energy management, making it ideal for a wide range of energy solutions from kilowatt to megawatt scale.

Key Features:

• High Efficiency: Boasts a maximum efficiency of 98.8% with a wide battery voltage range of 135-750V and a charge/discharge current of up to 100A.
• Reliable Performance: Features IP65 protection, ensuring long-term operation in various environments. The advanced heat dissipation design guarantees optimal performance and longevity.
• Powerful Output: Supports up to 100% unbalanced load and 110% AC output overloading, with the capacity for parallel operation to scale system sizes from kilowatts to megawatts.
• User-Friendly Design: Easy installation and maintenance with a horizontal design and quick plug terminals. Data can be easily accessed via OLED display and mobile app, with simple WiFi configuration.
• Advanced Protection: Equipped with comprehensive protection features, including DC reverse polarity, battery input reverse connection, insulation resistance, surge, over-temperature, residual current, islanding, AC over-voltage, overload, and short-circuit protections.

Technical Specifications:

• Model Variants: Available in 25kW, 30kW, 36kW, 40kW, and 50kW models.
• PV Input: Maximum input power ranges from 37.5kW to 75kW with a PV input current of 30A and a start-up voltage of 135V.
• Battery Compatibility: Supports lithium batteries with BMS, operating within a voltage range of 135-750V.
• Grid and Back-Up Side: Provides seamless switching within 20ms for UPS-level performance, with a rated output voltage of 220/380V, 230/400V, or 240/415V at 50/60Hz.
• Dimensions and Weight: Compact design with dimensions of 800×620×300 mm and a weight of 72 kg.
• Environmental Adaptability: Operates in a temperature range of -30°C to 60°C with a noise level of less than 50dB, suitable for altitudes up to 3000 meters with derating above this level.

Certifications: Complies with international standards including IEC/EN 62109, IEC/EN 61000, EN50549-1, TOR Generator Type A, and VDE-AR-N-4105.
