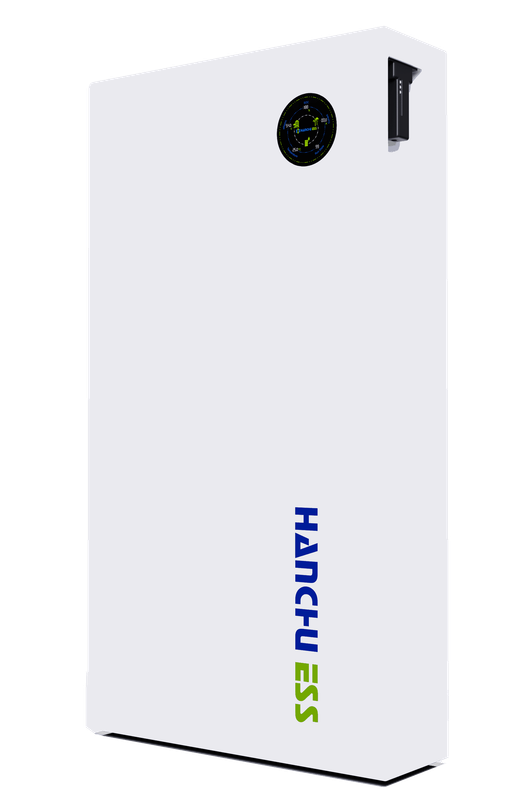

Hanchu 9.4kW Lithium Battery - DOD95% (HOME-ESS-LV9.4K)

Introducing the HOME-ESS-LV-9.4K: Cutting-Edge Home Energy Storage Solution

The HOME-ESS-LV-9.4K represents the pinnacle of residential energy storage technology. This advanced system combines industry-leading safety features, exceptional performance, and smart management capabilities to deliver a superior energy solution for modern homes.

Key Features:

• Scalable Capacity: Expandable from 9.4kWh to 75.2kWh to suit diverse energy needs
• Compact Design: Efficient 430x150x800mm dimensions for easy integration
• High Performance: 100A rapid charge and discharge capability
• Maximum Efficiency: 95% Depth of Discharge for optimal energy utilization
• Advanced Safety: Blade LFP battery with aerosol fire-protection system in every unit
• Smart IoT Platform: Comprehensive online configuration, monitoring, and upgrading

Technical Specifications:

• Nominal Voltage: 51.2V (Operating range: 43.2-57.6V)
• Weight: 72Kg - lighter than comparable models
• Temperature Range: Charging 0°C to 50°C, Discharging -20°C to 60°C
• IP65 Rated: Superior protection against dust and water jets
• Certifications: IEC 62619, CE, UN38.3 for safe transportation

Leading Technology:

• Best-in-class Blade LFP battery with CTP (Cell to Pack) technology
• Multi-level high-efficiency heat dissipation system for long-term stability
• Advanced smart BMS (Battery Management System) and EMS (Energy Management System)

Smart Features:

• IoT-based platform for seamless energy optimization
• 24/7 automatic monitoring and remote diagnostics
• Predictive maintenance to extend battery life
• User-friendly app for easy configuration and monitoring

The HOME-ESS-LV-9.4K sets new standards in home energy storage with its blend of cutting-edge technology, uncompromising safety, and intelligent management. The built-in heat dissipation system ensures long-term reliability, while the comprehensive IoT platform provides unparalleled control and visibility over your energy usage.

Experience the future of home energy management with the HOME-ESS-LV-9.4K where advanced technology meets reliability to power your life efficiently and sustainably.

Documents

Hanchu 9.4kW Lithium Battery - DOD95% (HOME-ESS-LV9.4K) - Datasheet
