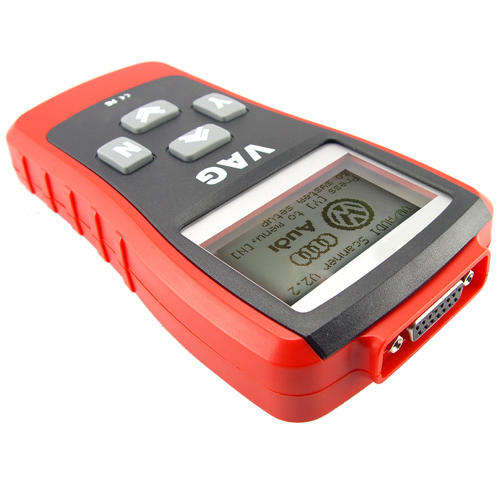

Hand Held VAG Diagnostics Code Scanner with LCD Display

 Specifications

• Primary Function: Car troubleshooting and code scanner
• Display: 3 inch LCD 128x64 (adjustable contrast)
• Protocols:
  -V's proprietary diagnostic protocol, ISO 9141-2 (CARB)
  -ISO 14230 (KWP2000)
  -ISO 15765 (CAN-BUS)

  General List of VAG Compliant Vehicles (from 1990 - current year)++:
• European VAG compliant vehicles
  - VW / Audi / Seat / Skoda / Golf / Beetle / Touareg / GTI / Passat
• Japanese compliant vehicles
  - Toyota, Nissan, Honda
• American and Korean compliant vehicles
  - Chrysler, Ford, General / Kia, Daewoo

• Operating Temperatures: 0-50 degrees C (32-122 F)
• Power: 8-16V via car battery
• Car Cable Plug: 16Pin (Male)
• Onboard Ports:
  -15 pin Serial (Female)
• Onboard Buttons:
  -Up Button
  -Down Button
  -Y Button
  -N Button
• Dimension: L:178 x W:95 x H:35 (mm)

Other Features

• Works primarily on vehicles that are VAG compliant
• ++Note: Refer to your car user manual or check with your vehicle manufacturer, dealer or local mechanic to verify that your model is VAG compliant
• Reads and clears generic trouble codes of cars using ISO 9141-2 ( "CARB"), ISO 14230 ("KWP-2000") and ISO-15765 ("CAN") protocols

Package Contents

• Model: diagnostics code scanner
• Code Scanner to Car Cable
• Carry Case
• User Manual - English

FAQ - Frequently Asked Questions

• Does this code scanner work on my Honda Civic 2006 model? The diagnostics code scanner only works on vehicles that's are VAG compliant, the best way check if your car is VAG compliant is to check the car user manual or contact your local car dealer
• Can I test my 1986 Toyota Corolla with code scanner? This model diagnostics code scanner only works on cars manufactured from 1990 onwards and are VAG compliant, to check to see whether earlier models are VAG compliant, you should refer to your car user manual or contact your local Toyota car dealer.
