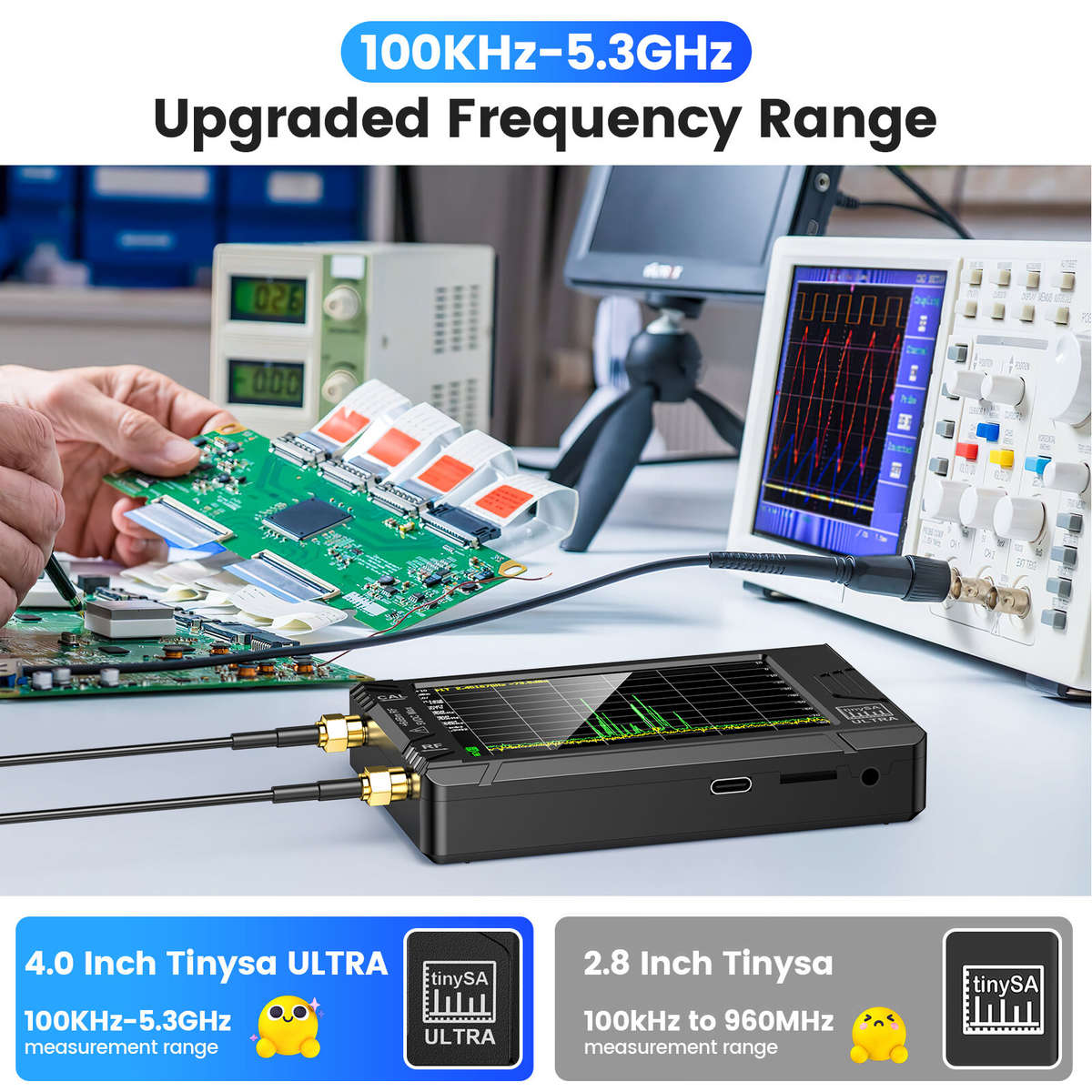

Handheld 4" Display Tiny Spectrum Analyzer TinySA ULTRA 100kHz to 5.3GHz with 32GB Card Version V0.4
Check my rate
View locations
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Official version, supports the latest firmware, cooperates with Zeenko
Features:

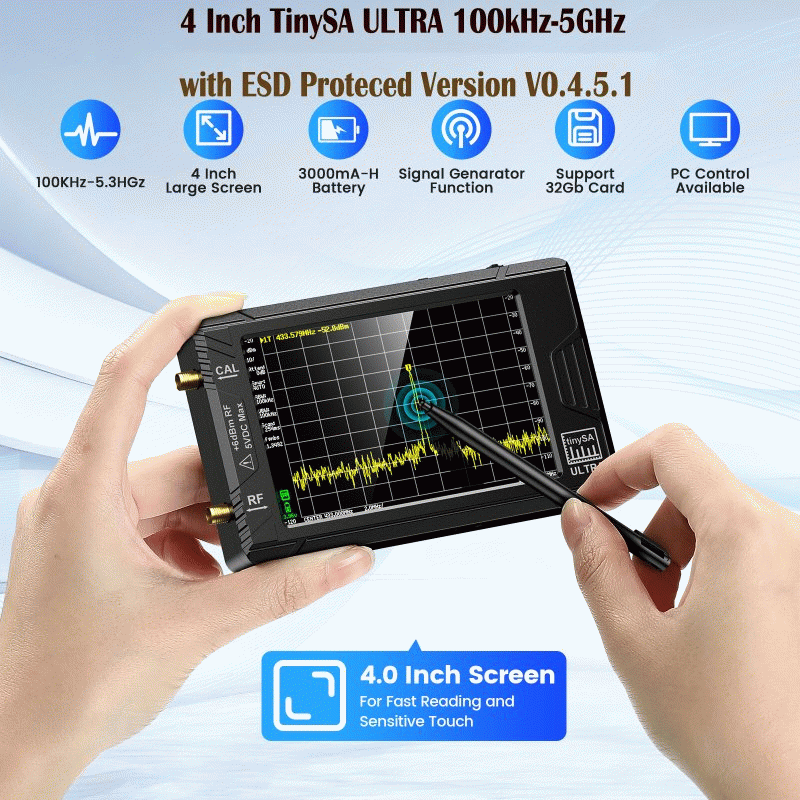

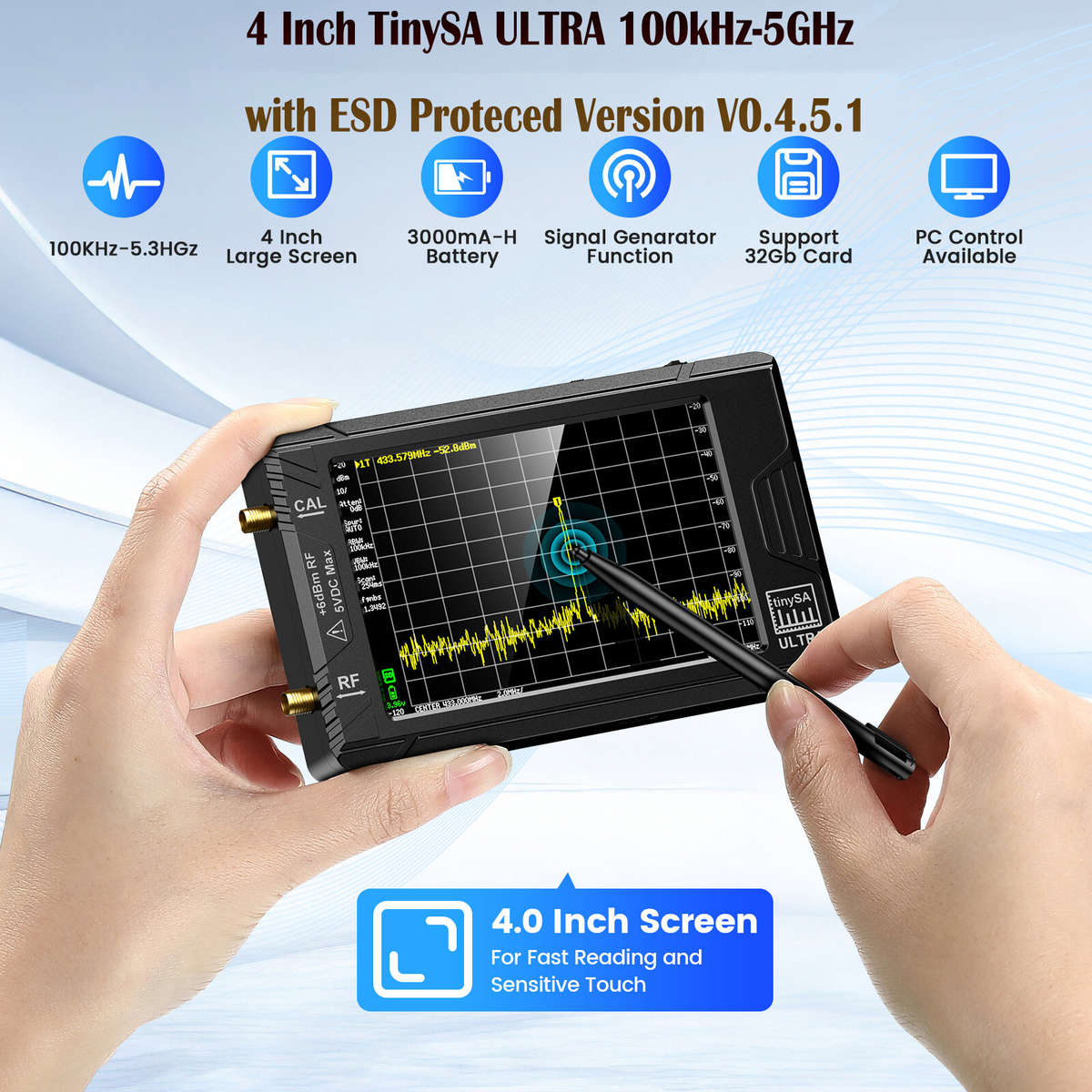

- Screen size 4 inch

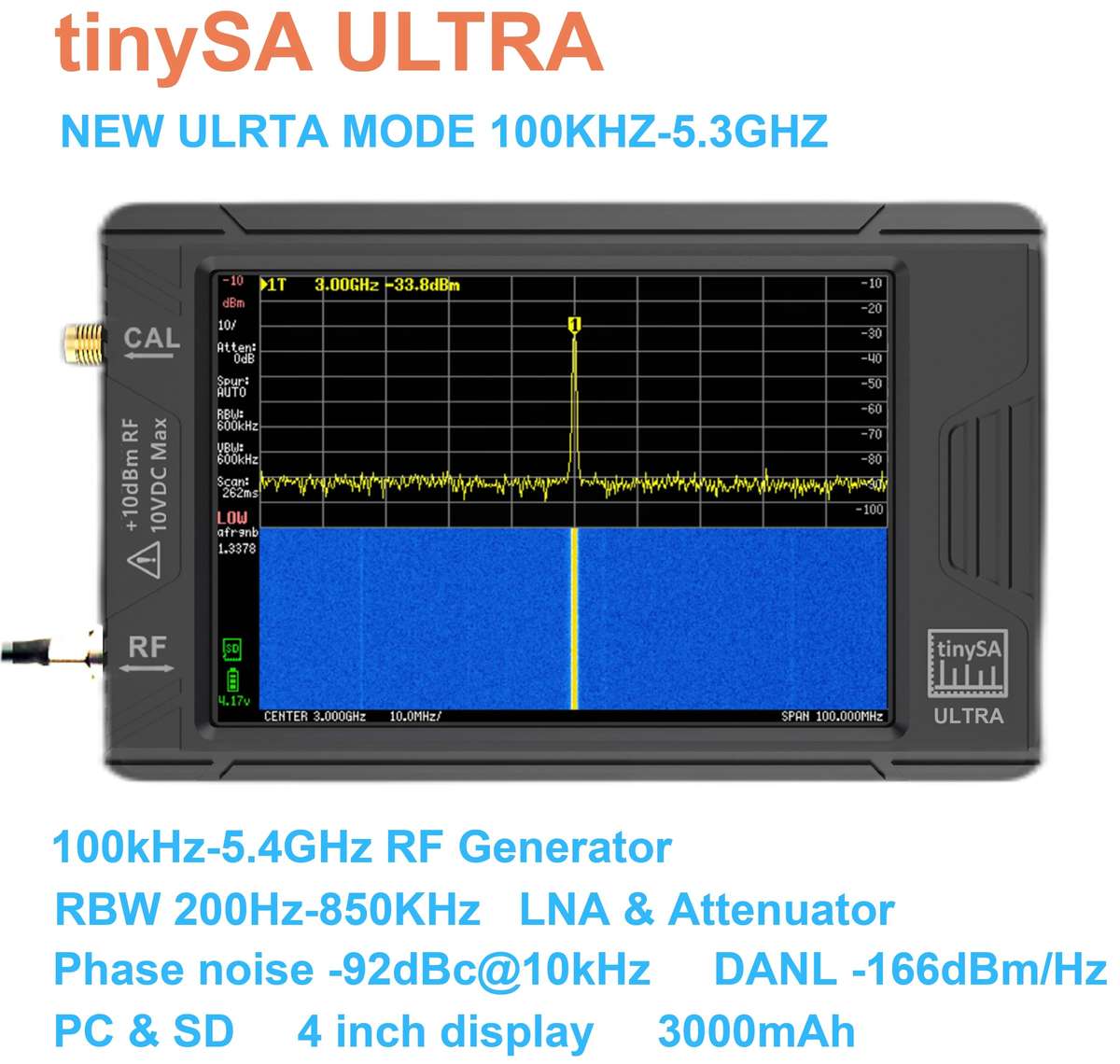

- Spectrum Analyzer for 0.1-800MHz or, with Ultra mode enabled, 0.1MHz-6GHz
- Signal Generator with sine wave output between 0.1-800MHz or dual tone output up to 4.4GHz when not used as Spectrum Analyzer.
- Switchable resolution bandpass filters for both ranges between 200Hz and 850kHz
- Built-in 20dB optional LNA
- Color display showing 450 scan points covering up to the full frequency range.
- Input Step attenuator from 0dB to 31dB (not in combination with LNA).
- A built-in calibration signal generator that is used for automatic self test and (low) input calibration.
- Connected to a PC via USB it becomes a PC controlled Spectrum Analyzer or Signal Generator
- Rechargeable battery allowing a minimum of at least 2 hours portable use
- Max input level +10dBm. Do not destroy your tinySA
- Due to the low cost and very small form factor there are certain relevant tinySA limitations and tinySA Ultra limitations
Specification
| Parameter | Specification |
| Display size | 4" TFT LCD (480×320) |
| Max low input frequency | 800MHz, 6GHz in Ultra mode |
