Handheld Adjustable Current Voltage Analog Simulator 0-10V/2-10V 0-20mA/4-20mA Signal Generator

New

20 available

R876.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4016

92.46 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654099745

Specification:

Working voltage :DC 15~27V /Mirco USB 5V
1CH analog output, optional voltage type (output range 0/2-10V) or current type (output range 0/4-20MA)
Voltage-type output load impedance requirements a 2K, current-type output impedance requirements a 500
3 voltage, current output, a key switch

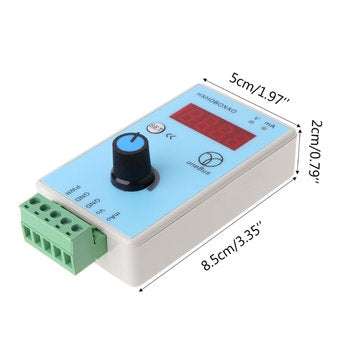

Size: 85 x 50 x 22mm

Indicator description:
V (red) is bright, output is 0-10V voltage signal; flashing, output is 2-10v voltage signal mA (green) is bright, output is 0-20mA current signal; flashing, output is 4-20mA current signal Port description:

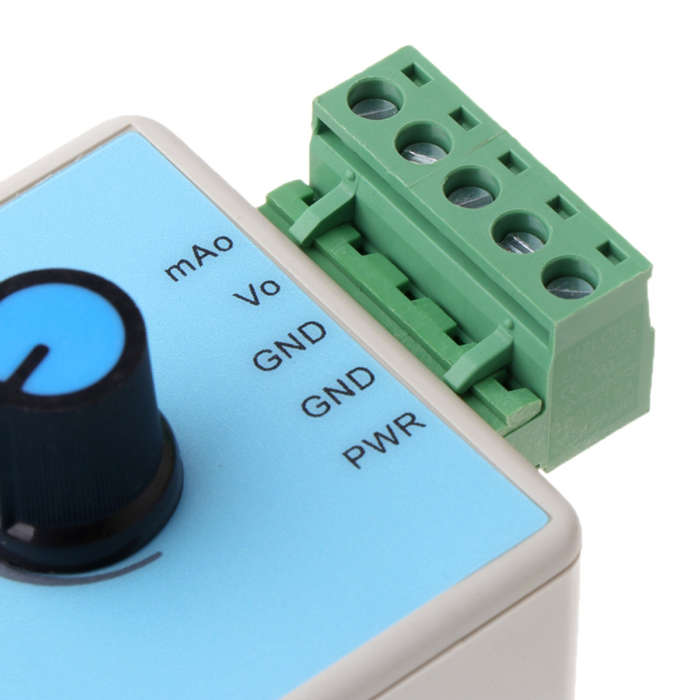

PWR: Connect to DC15-27V Positive Supply GND: power and signal ground GND: power and signal ground V0: Voltage analog output interface mA0: Current Output Analog Output Interface Package Included:

1 xHandheld Adjustable Current Voltage Analog Simulator Details Pictures:
