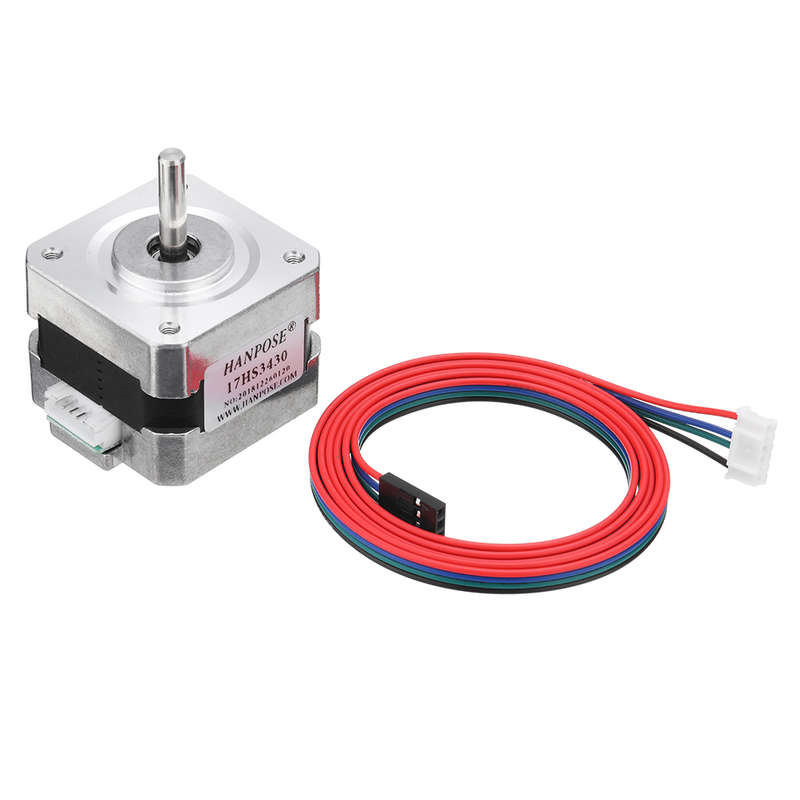

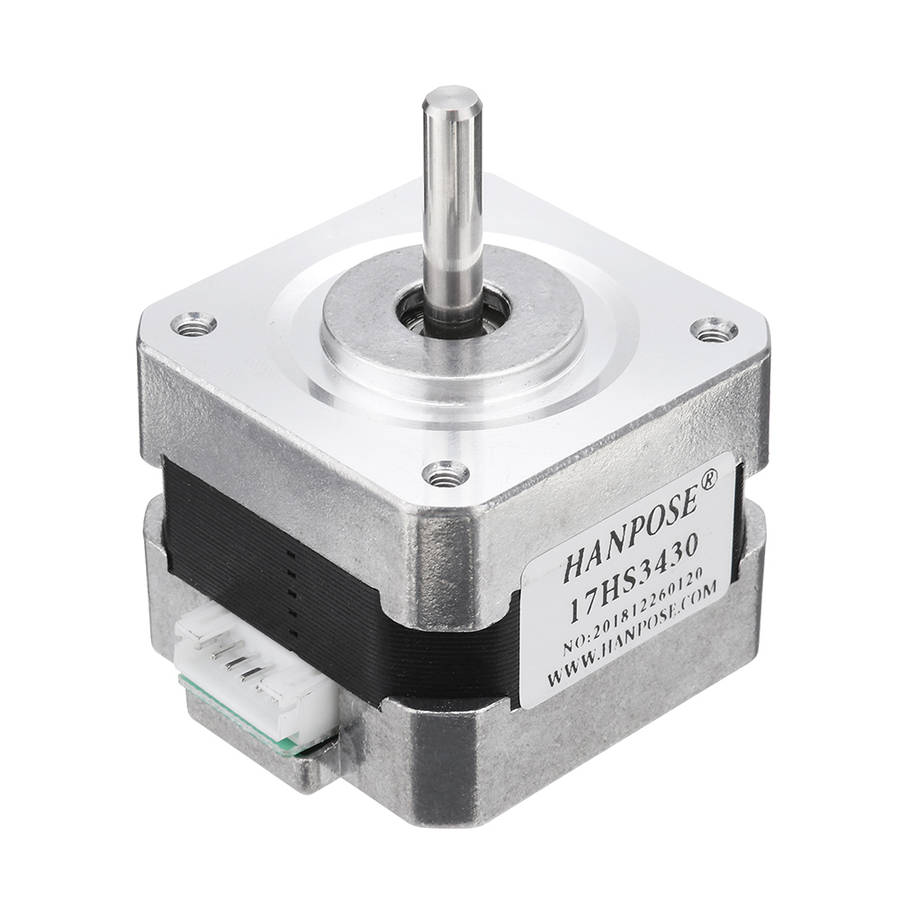

| Model | 17HS3430 |
| Phase | 2 |
| Step Angle | 1.8° |

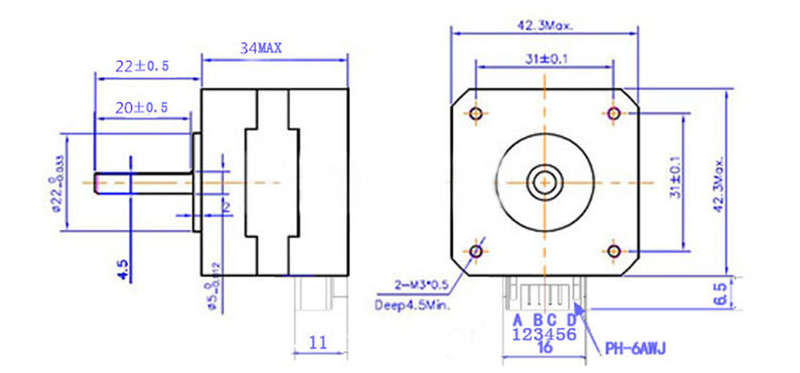

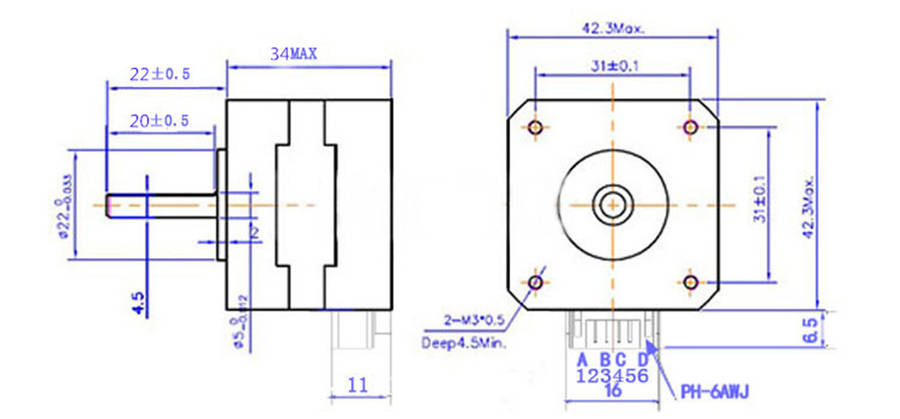

| Motor Size | 42 x 34mm |

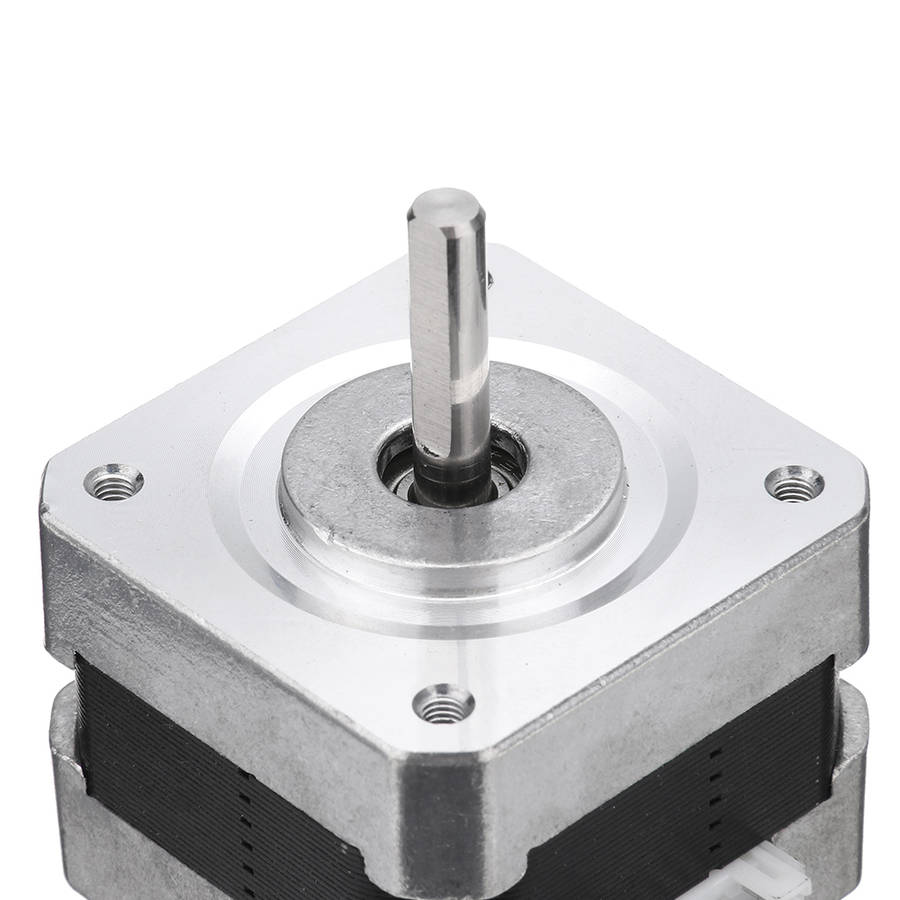

| Shaft | "D" shaft 21 x Ф5mm |

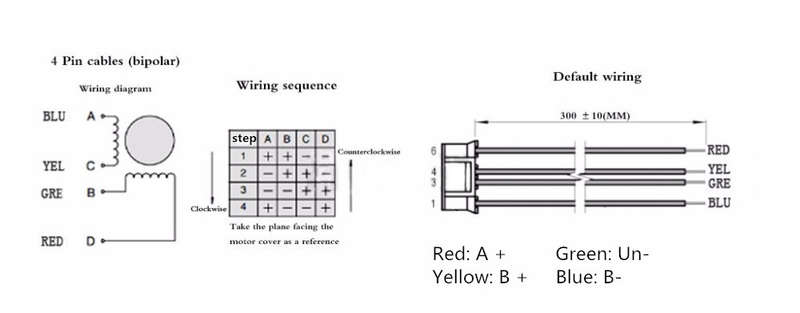

| Outlet way | "4" plug line |

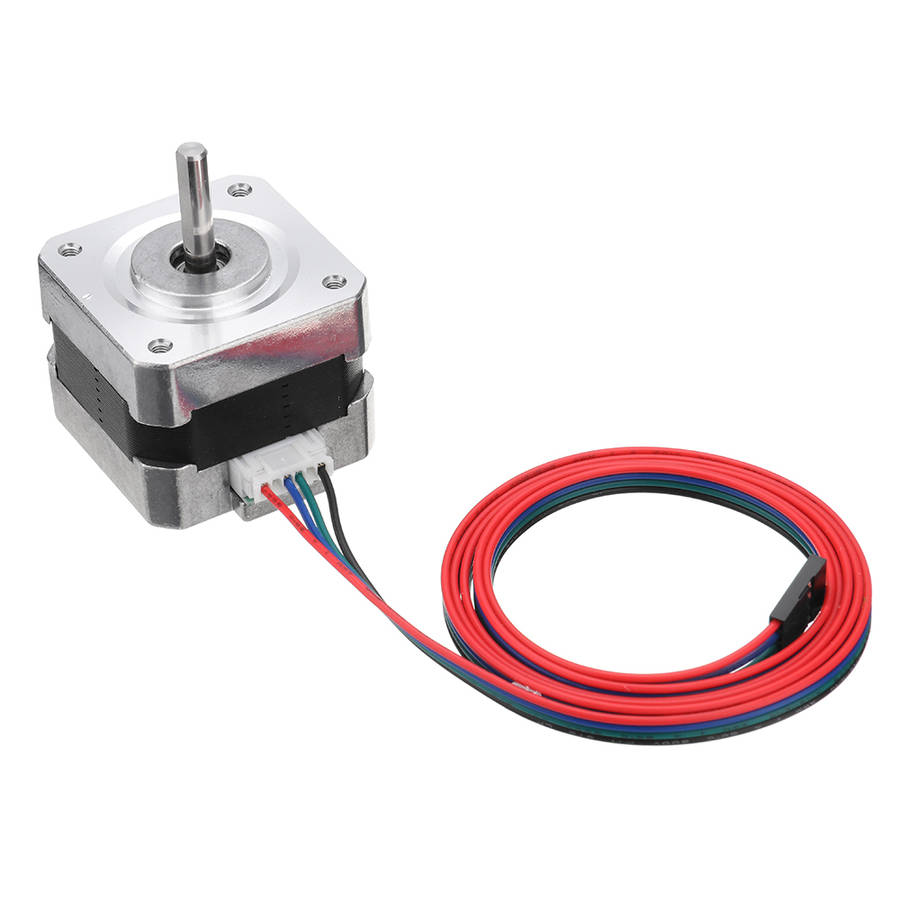

| Motor leads | Dupont line(1M) |
| Adapter drive | Two-phase step drive |
| Scope | 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser engraving, Automation Equipment, Non-standard Equipment, Placement machine ect. |
| Model No. | Step Angle | Motor Length | Rated Current | Resistance /Phase | Inductance /Phase | Holding Torque | Couple Relaxing | Inertia Of Rotor | Lead |
| ( °) | (L)mm | (A) | (Ω) | (mH) | (N.cm) | (N.cm) | (G. cm²) | (No.) | |
| 17HS3430 | 1.8 | 34 | 0.4 | 30 | 35 | 28 | 1.6 | 34 | 4 |
| Precision angle step | ±5% (full step, no charge) |
| Resistance accuracy | ±10% |
| Precision inductance | ±20% |
| Temperature rise | 80deg Max (rated current, 2 phase on) |
| Ambient temperature | ( - 20°)-(+ 50°) |
| Insulation resistance | 100MΩ Min, 500VDC |
| Insultion Force | 500VAC for a minute |
