HANPOSE 17HS4401S-D150S Double Shaft 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.6A 45N.cm 4-lead f

20 available / new

R515.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3519

93.51 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643380729

Description:

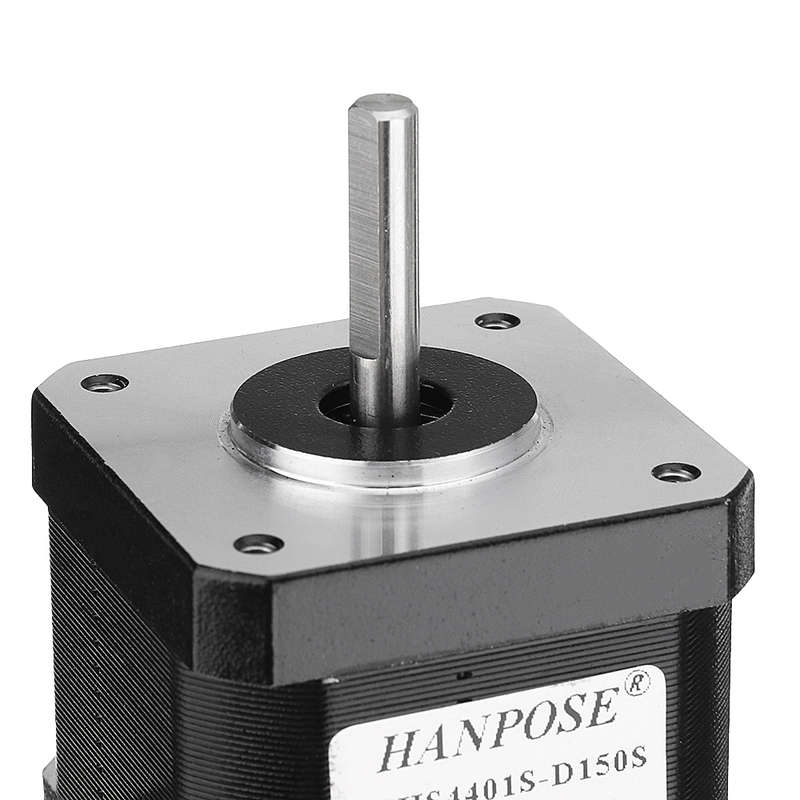

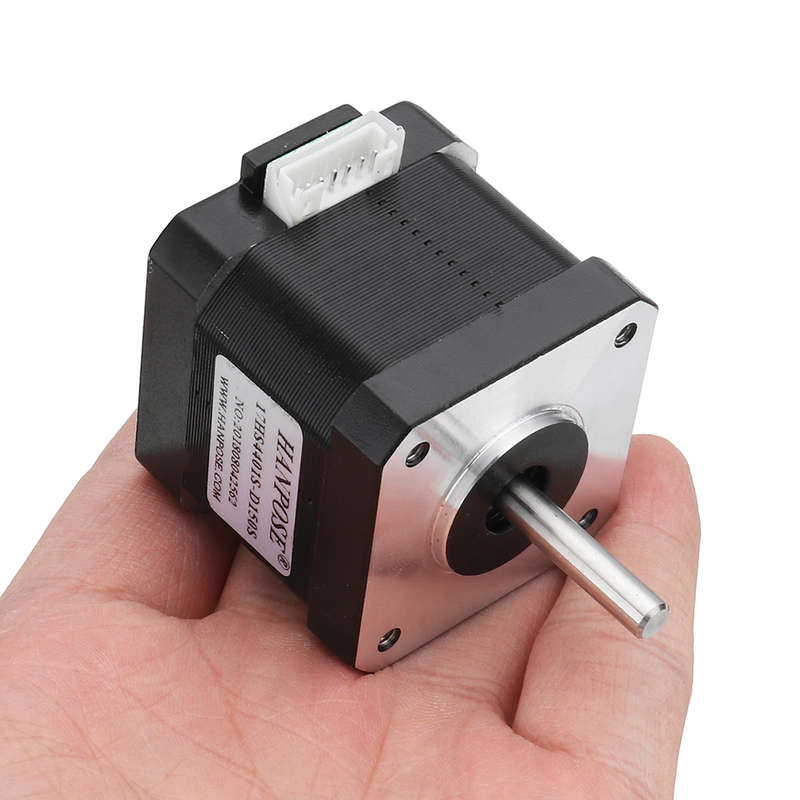

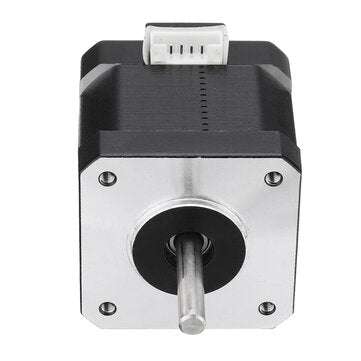

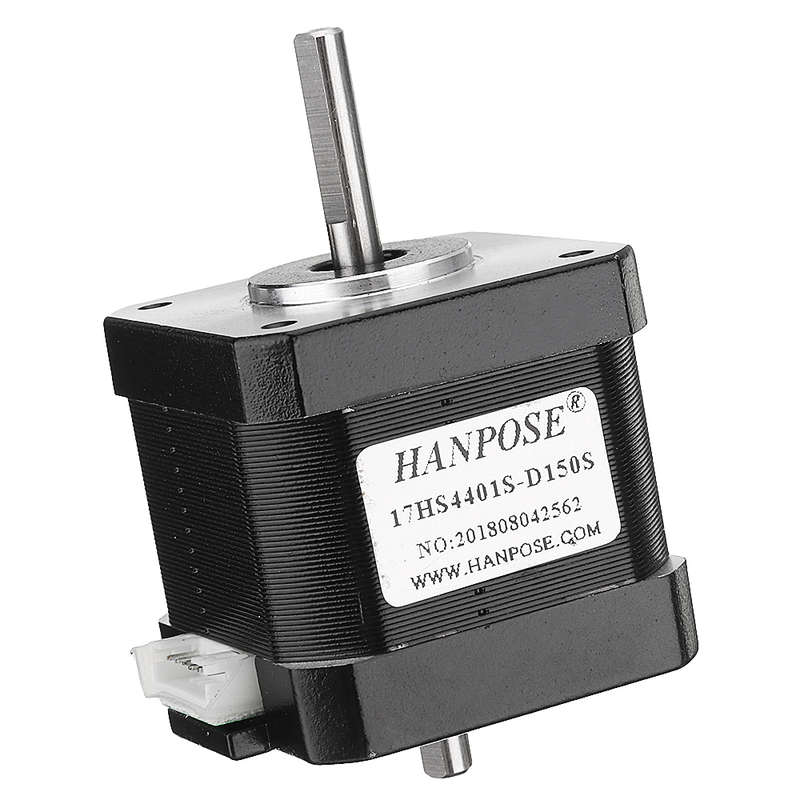

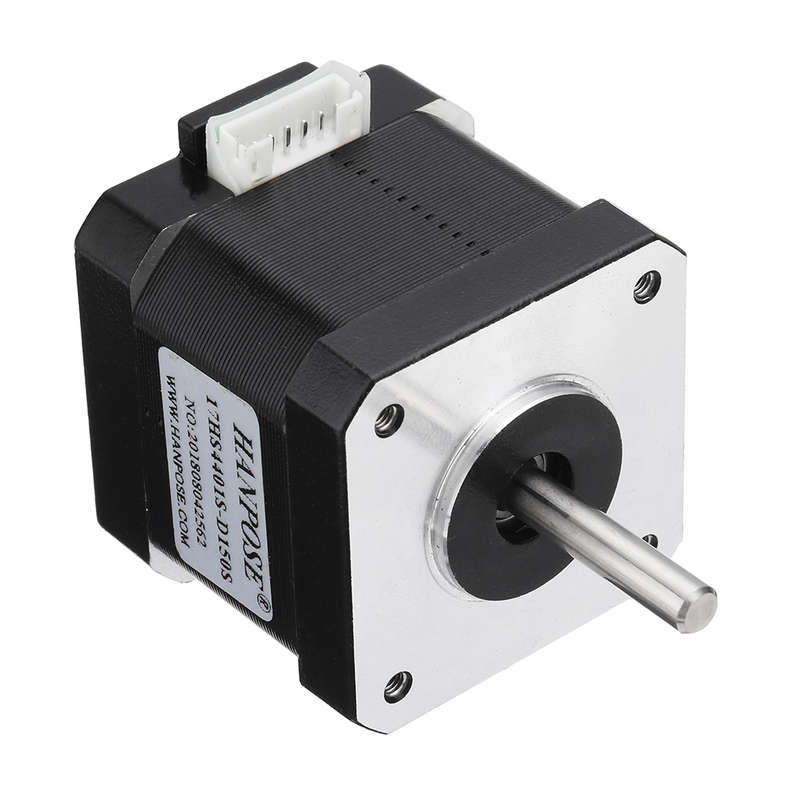

HANPOSE17HS4401S-D150SDouble Shaft 48mm Nema 17 Stepper Motor 42 Motor 42BYGH1.6A 45N.cm4-lead for CNC Laser 3D Printer
Certification:CE,ROSH,ISO,FCC
Color:Black(SurfaceTreatment)

Specification:

Model	17HS4401S-D150S
Type	Hybrid

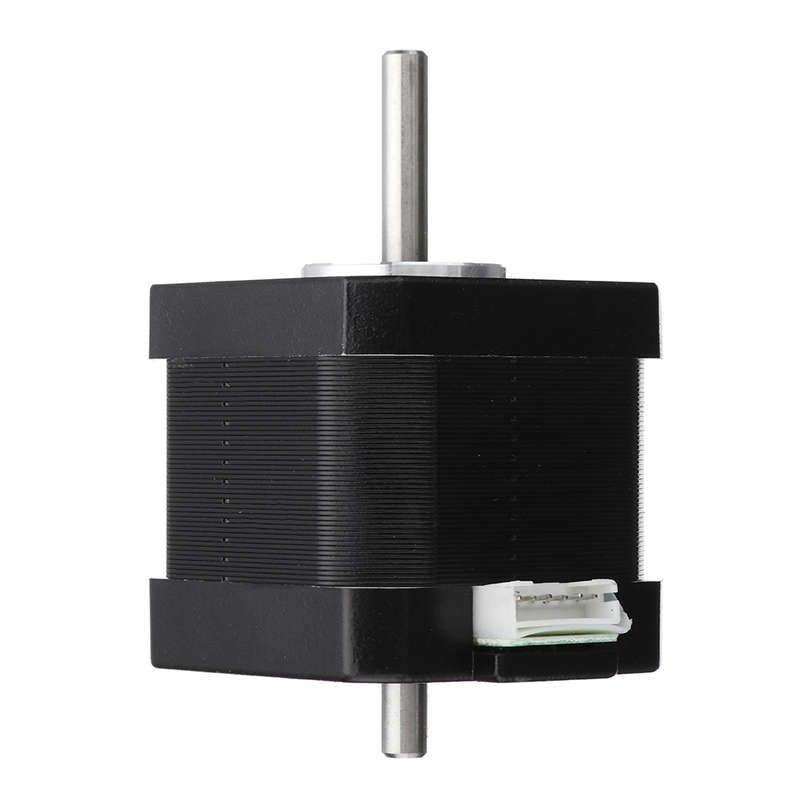

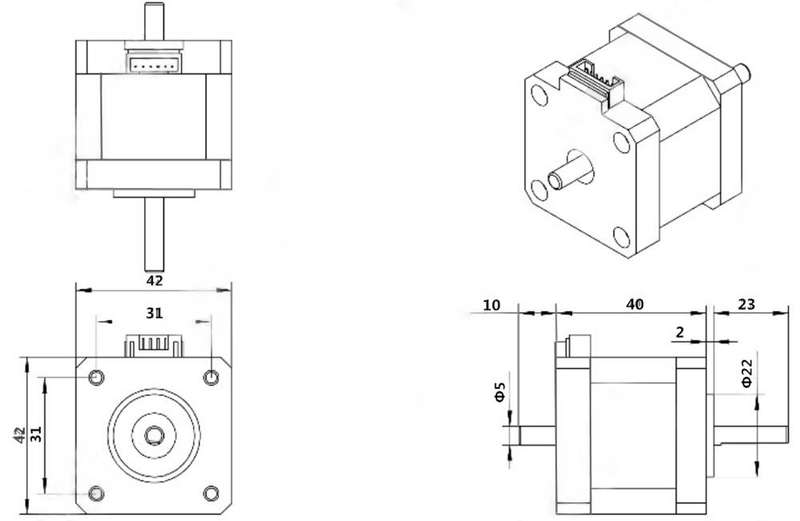

Shaft	Double shaft(1. D Shaft:23xD5mm 2. DShaft: 10xD5mm)
Phase	2
Step Angle	1.8ﾣ
Motor Frame Size	42 x 40mm

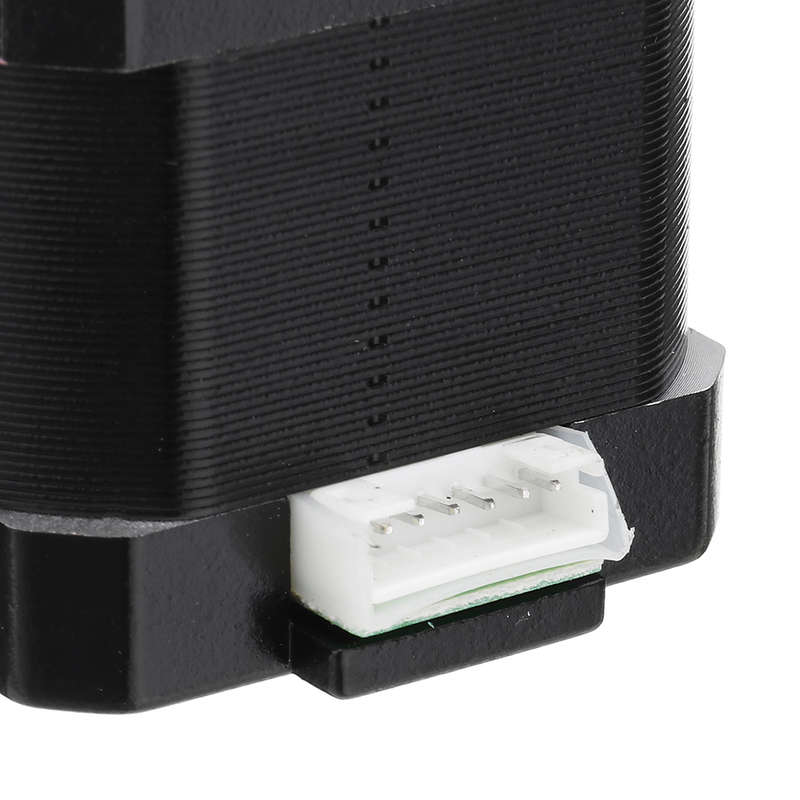

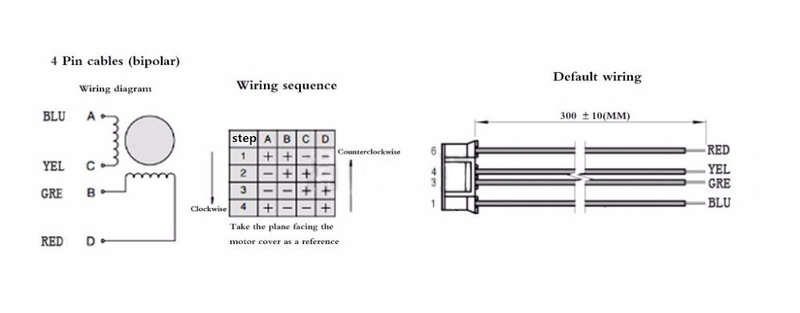

Outlet way	4 plug line

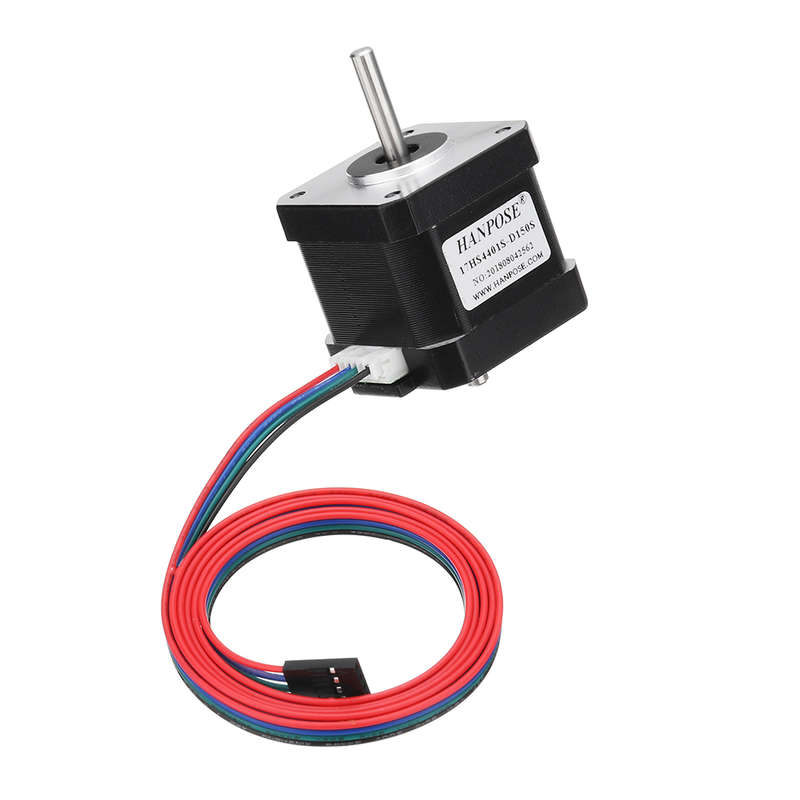

Motor leads	30cm Wire
Adapter drive	Two-phase step drive
Scope	3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,Laser engraving, Automation Equipment, Non-standardEquipment,Placement machineect.

Electrical Specifications:

Model No.	Step Angle	Motor Length	Rated Voltage	Rated Current	Resistance /Phase	Inductance /Phase	Holding Torque	Inertia Of Rotor	Lead
Model No.	( ﾣ)	(L)mm	(V)	(A)	()	(mH)	(N.cm)	(G.cm2)	(No.)
17HS4401S-D150S	1.8	40	2.5-3.0	1.6	1.6	3	45	57	4

General Specification:

Precision angle step	&pm;5% (full step, no charge)
Resistance accuracy	&pm;10%
Precision inductance	&pm;20%
Temperature rise	80deg Max (rated current, 2 phase on)
Ambient temperature	( - 20ﾣ)-(+ 50ﾣ)
Insulation resistance	100M Min, 500VDC
Insultion Force	500VAC for a minute

Features: 1. Low noise. 2. Low heat. 3. Smooth operation. 4. Good acceleration performance.
5. Black surface treatment, double shaft. Package Included:
1 X17HS4401S-D150SStepper Motor
