HANPOSE 17HS6401-S T8x8 Nema 17 Lead Screw Stepper Motor Linear Actuators 60mm 1.7A... (SIZE: 200MM)

12 were available / new

R923.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3642

92.93 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

612360972

SELECTED OPTION:
SIZE: 200MM

Description:

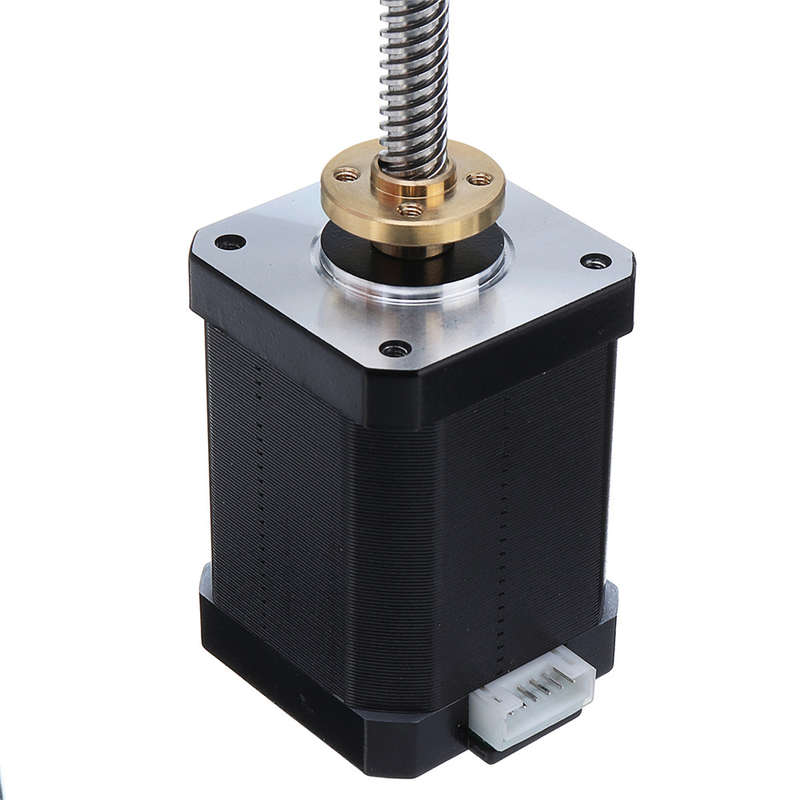

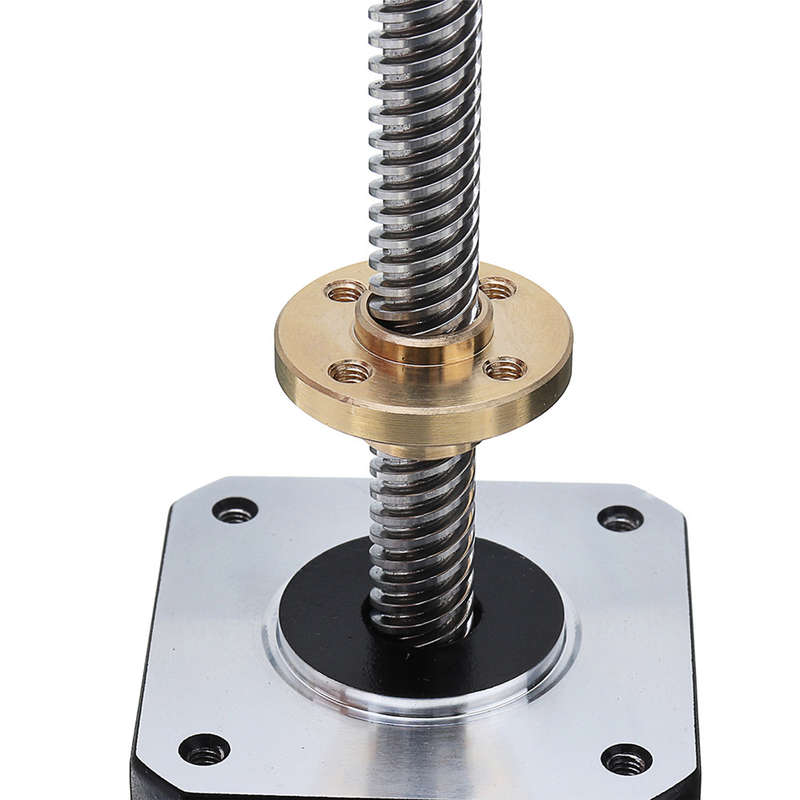

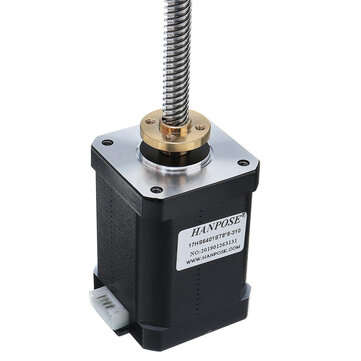

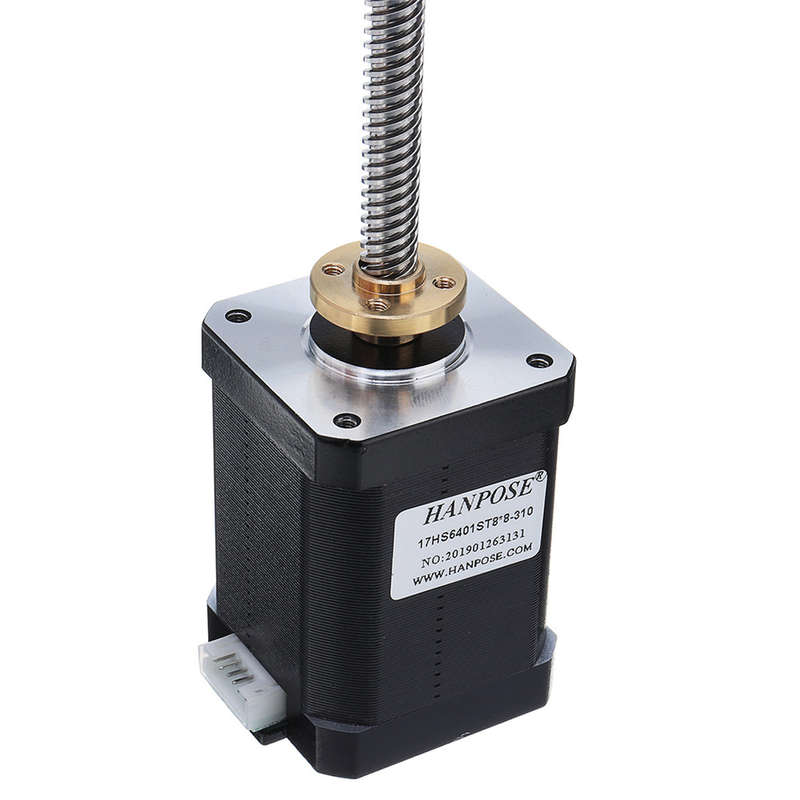

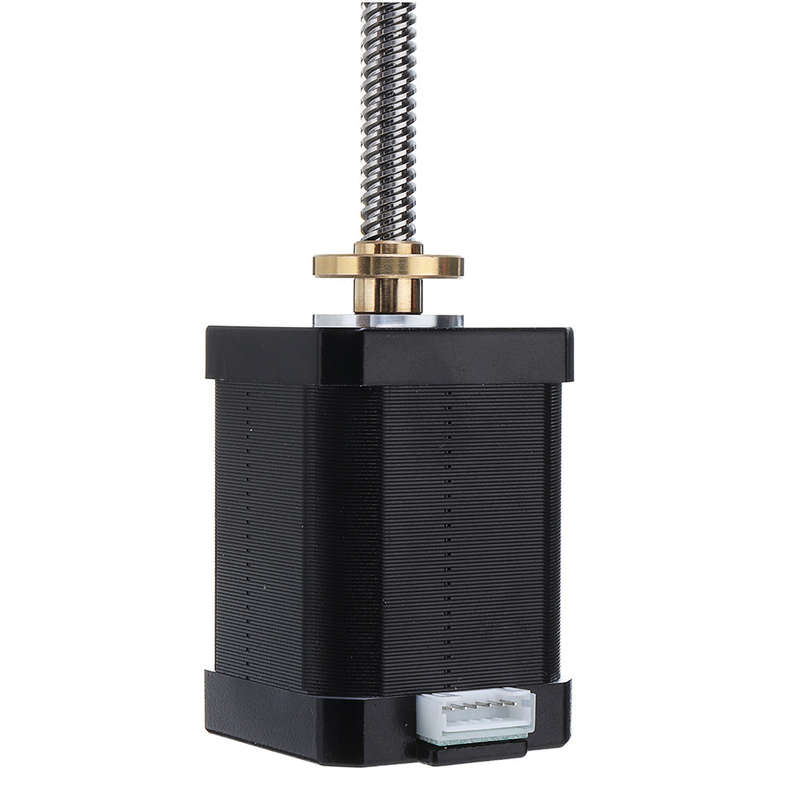

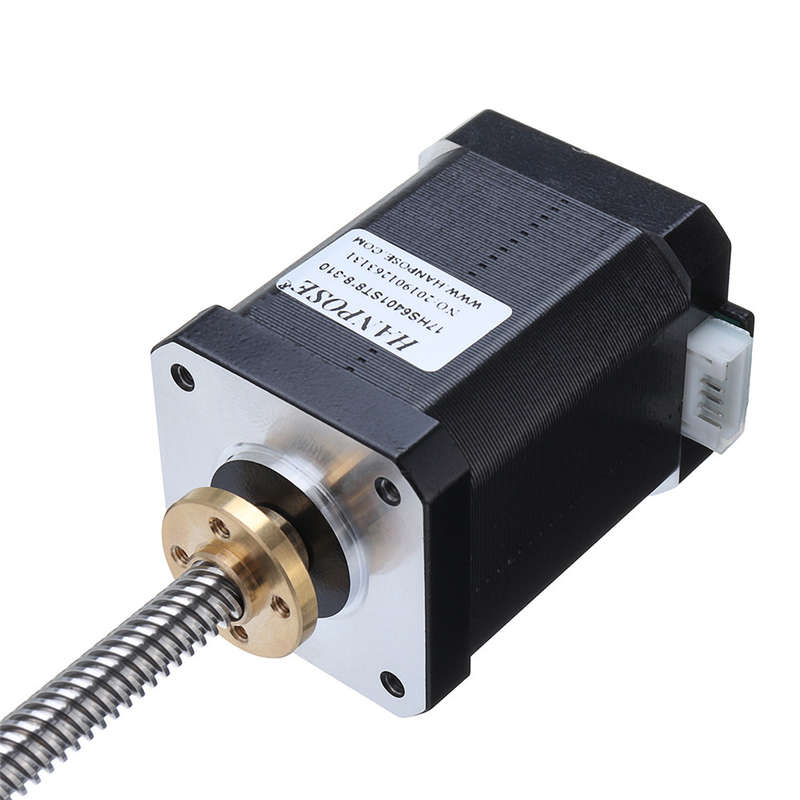

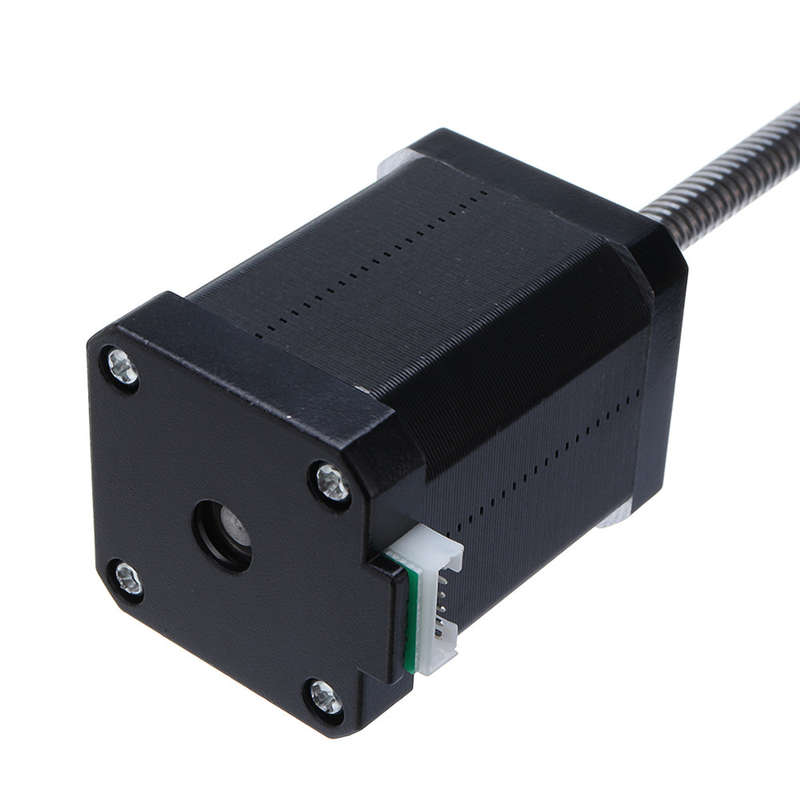

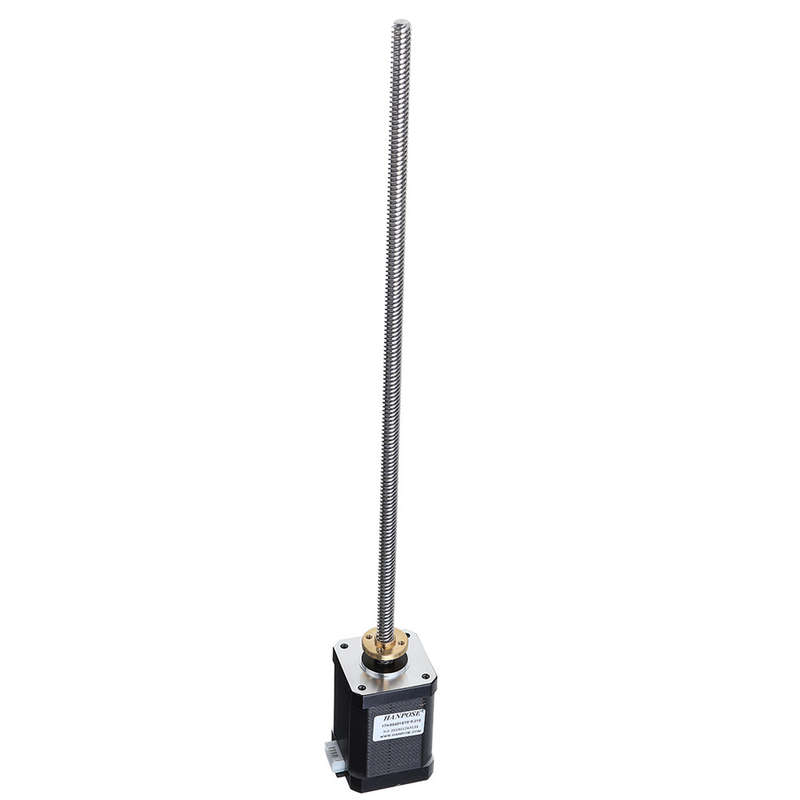

HANPOSE 17HS6401-S T8x8 Nema 17 Lead Screw Stepper Motor Linear Actuators
60mm 1.7A 73N.cm 4-lead 42 Motor 100-500mm Trapezoidal Lead Screw for 3D printer Z Axis
Certification:?CE,?ROSH,?ISO,?FCC
Motor Color:?Black(Surface?Treatment)

Specification:

Model	17HS6401-S T8*8
Motor Type	Hybrid
Phase	2
Step Angle	1.8?ﾣ
Motor Size	42*60?mm

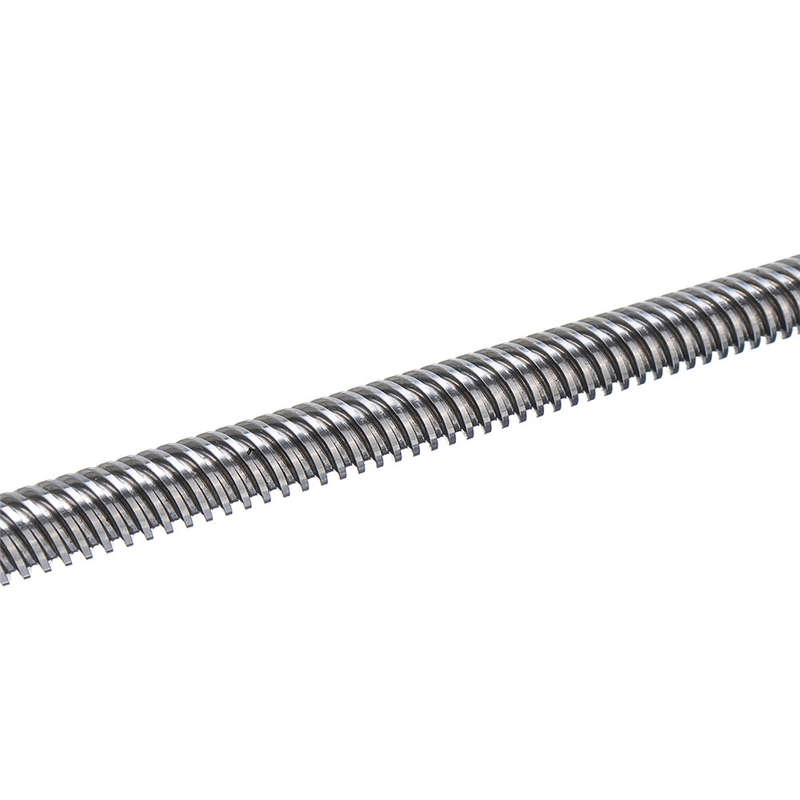

Screw Diameter	8mm
Screw Pitch	8mm
Screw Effective Stroke	100/150/200/250/300/350/400/500mm

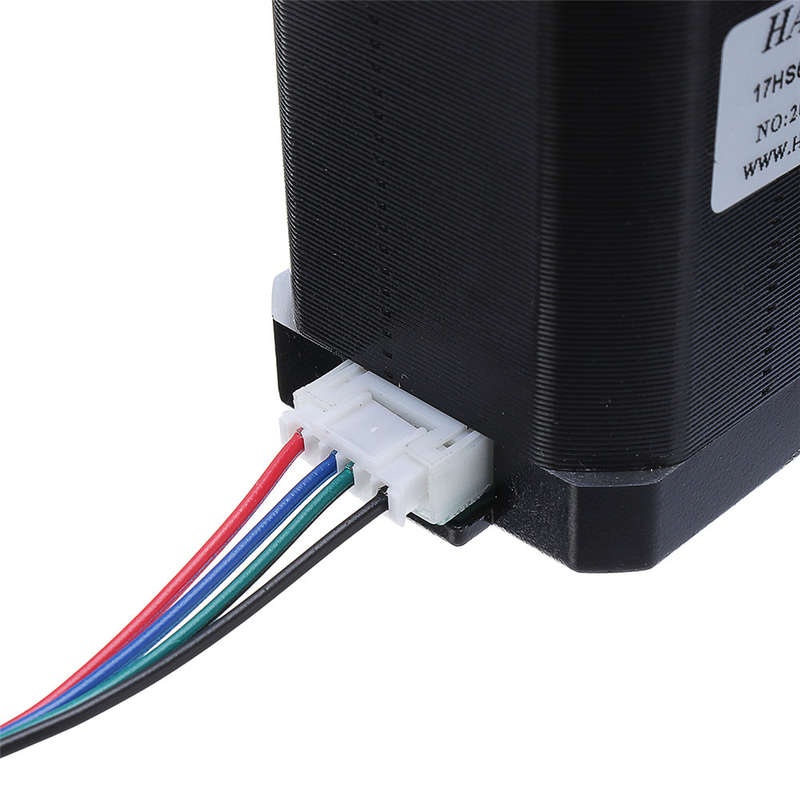

Outlet way	4 plug line

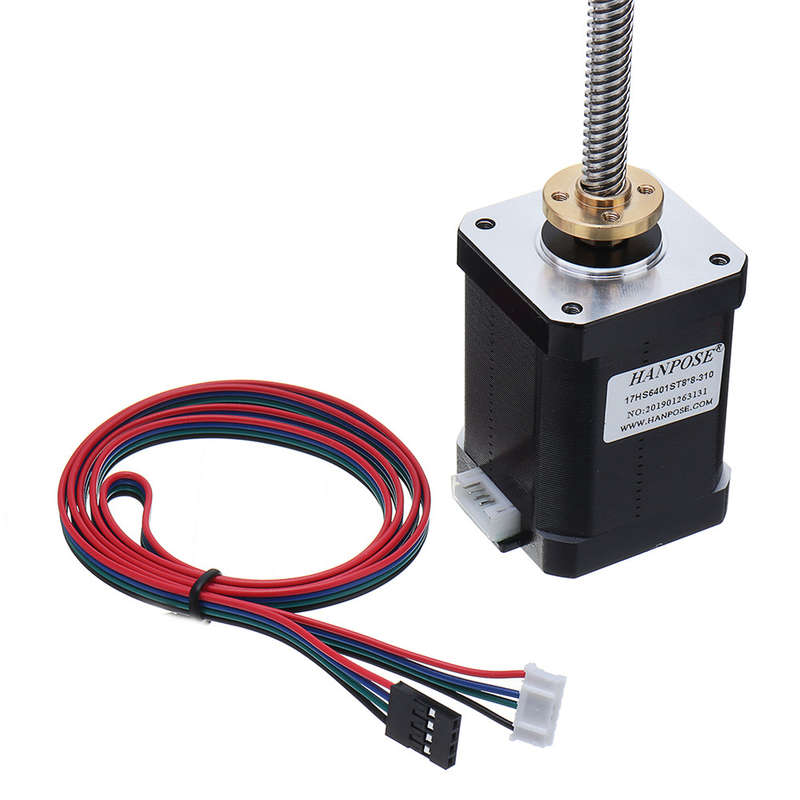

Motor leads	Dupont line(1M)
Adapter drive	Two-phase step drive
Certification	ROHS, Iso, CE, UL, CCC?
Scope	3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,?Laser engraving, Automation Equipment, ?Non-standard?Equipment, Placement machine?ect.

Electrical Specifications:

Model No.	Step Angle	Motor Length	Rated? Current	Rated Voltage	Resistance /Phase	Inductance /Phase	Holding Torque	Inertia Of Rotor	? Lead?
Model No.	( ?ﾣ)	(L)mm	(A)	(V)	(??)	(mH)	(N.cm)?	(G.?cm2)	(No.)
17HS6401S-T8?	1.8	60	1.7	5.1	3	6.2	73	80	4

General Specification:

Precision angle step	&pm;5% (full step, no charge)
Resistance accuracy	&pm;10%
Precision inductance	&pm;20%
Temperature rise	80deg Max (rated current, 2 phase on)
Ambient temperature	( - 20?ﾣ)-(+ 50?ﾣ)
Insulation resistance	100M?? Min, 500VDC
Insultion Force	500VAC for a minute

Features:
1. Low noise. 2. Low heat. 3. Smooth operation. 4. Good acceleration performance.
5. Structure is stable, not card machine.
6. Speet uniform, do not lose step. ? Package Included: 1 X 17HS6401-S?T8x8 100-500mm Stepper Motor?
More Details:?
