HANPOSE 17HS6401S-PG Nema 17 Extruder Gear Stepper Motor 42 Motor Ratio Planeta... (SIZE: RATIO14-1)

12 were available / new

R1,241.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3642

92.93 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

609865205

SELECTED OPTION:
SIZE: RATIO14-1

Description:

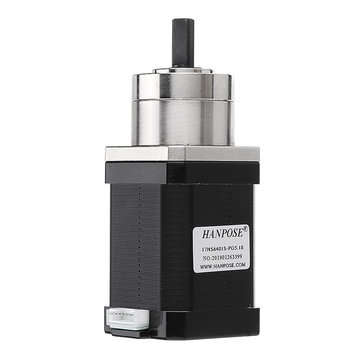

HANPOSE 17HS6401S-PG Nema 17 Extruder Gear Stepper Motor 42 Motor Ratio Planetary Gearbox Stepper Motor
Certification:?CE,?ROSH,?ISO,?FCC

Specification:

Product Model	17HS6401S-PGXXX
Stepper Motor Length	60mm
Shaft Size	D Shaft 16x8mm
Motor Lead	Plug
Including Wire	1M Dupoint Wire

Gear Reducer Ratio

Gearbox Model	3.71-1	5.18-1	14-1	19-1	27-1	51-1
Reduction	3.71	5.18	14	19	27	51
Gearbox Length	29	29	37	37	37	45

Planetary Gear Reducer Technical Parameters

Internal Gear Material	45# Steel
Output Bearing Form	Ball Bearings
Radial Load	a???35N
Axial Load	a???25N
Radial Clearance	a???0.04mm
Axial?Clearance	a???0.03mm
Backlash(No Load)	a???2?ﾣ

Note: The?Planetary Gearbox Stepper Motor?Holding?Torque=?17HS6401-S Stepper Motor?Holding?Torque *?Reduction * 0.8
Warning: The Gear Box Can Bear Less Than 16 N.M?Torque

17HS6401-S Stepper Motor Electrical Specifications:

Model No.	Step Angle	Motor? Length	Rated? Current	Rated Voltage	Resistance /Phase	Inductance /Phase	Holding? Torque	Inertia Of Rotor	? Lead?
Model No.	( ?ﾣ)	(L)mm	(A)	(V)	(??)	(mH)	(N.cm)?	(G.?cm2)	(No.)
17HS6401-S	1.8	60	1.7	5.1	3	6.2	73	80	4

Applications:
Used for robots stepper motor,
Electronic automatic equipment stepping motor,
Medical instrument stepping motor,
Advertising instrument stepper motor,
Lighting& audio equipment stepper motor,
Printer stepper motor, textile machinery stepper motor,
Cnc router stepper motor.
3D printer
