Description:

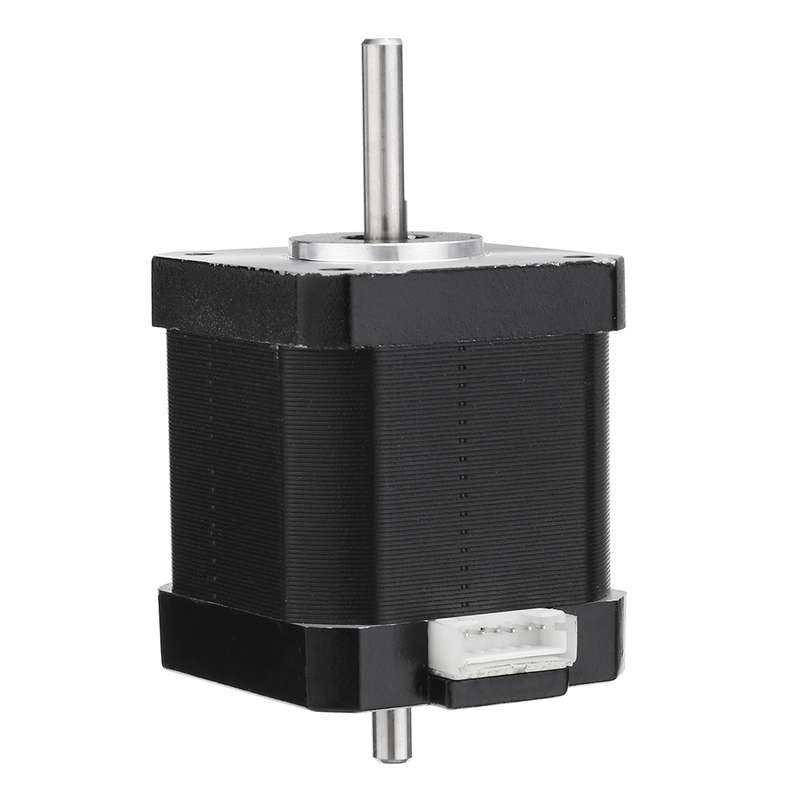

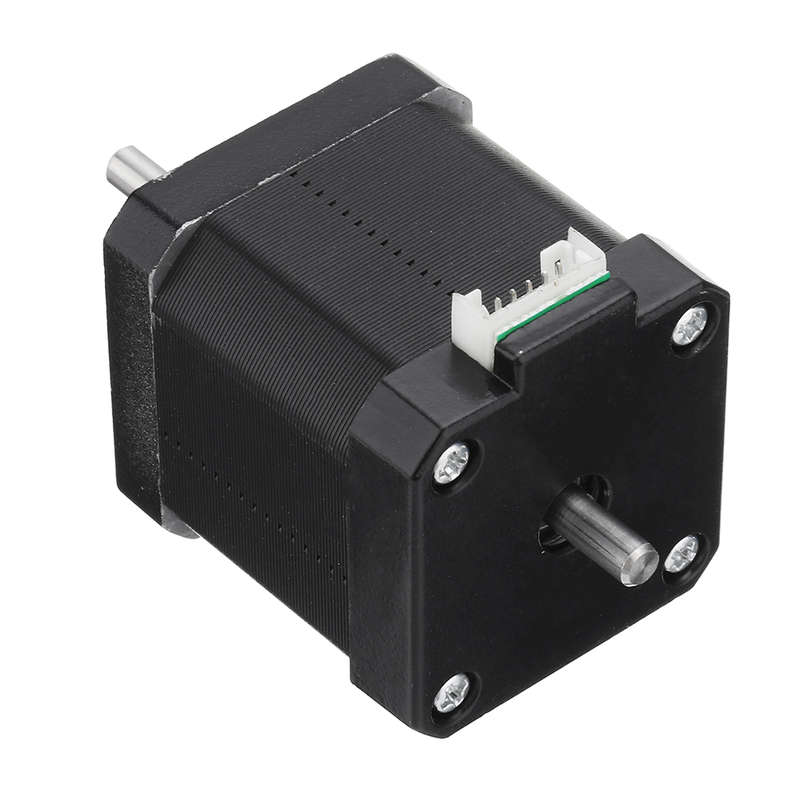

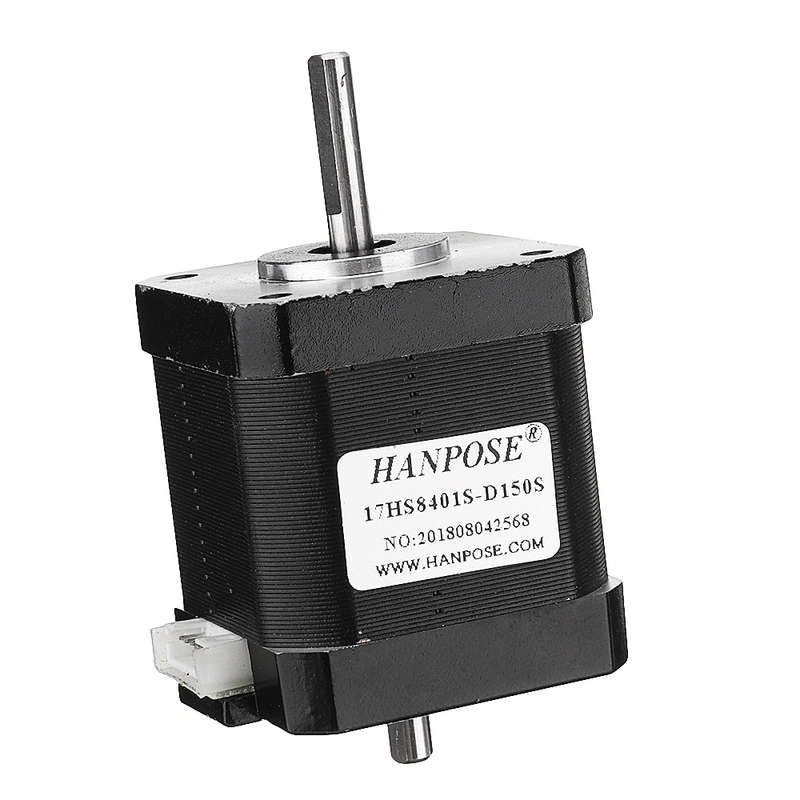

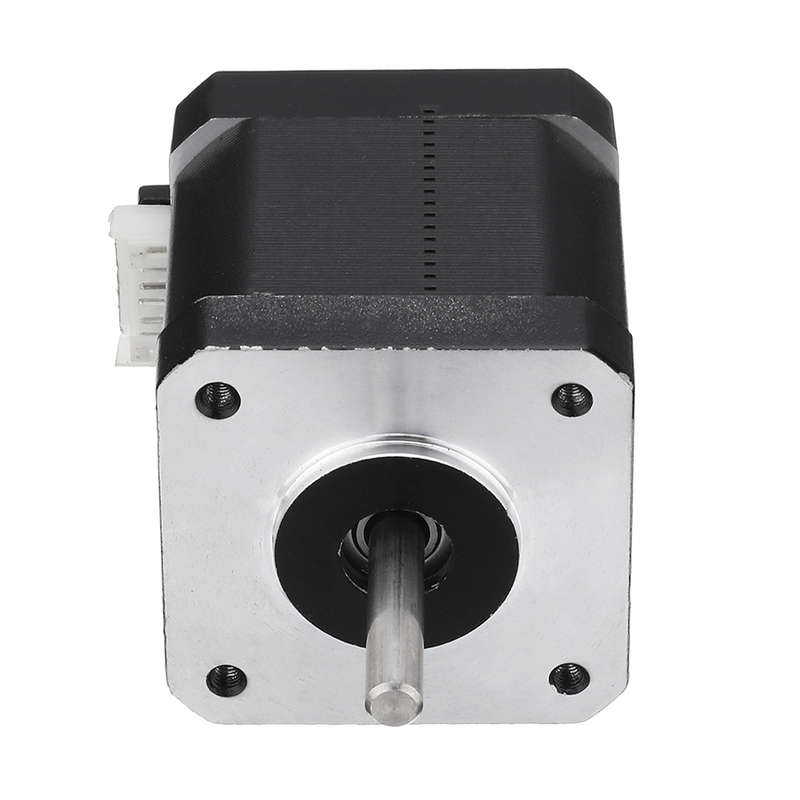

HANPOSE 17HS8401S-D150S Double Shaft 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for CNC Laser 3D Printer
Certification:CE,ROSH,ISO,FCC
Color:Black(SurfaceTreatment)

Specification:

Model	17HS8401S-D150S
Type	Hybrid

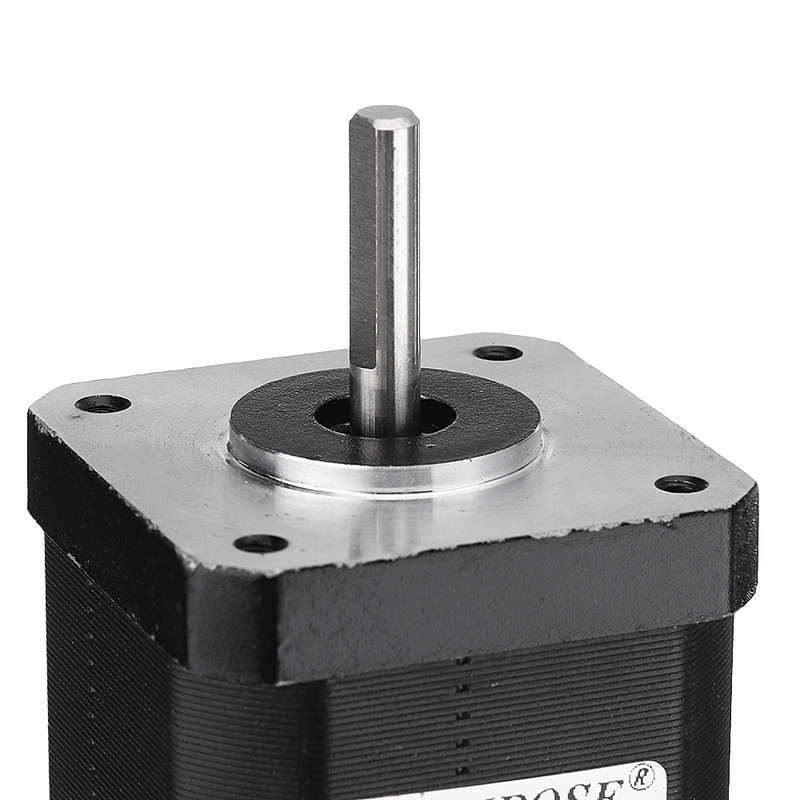

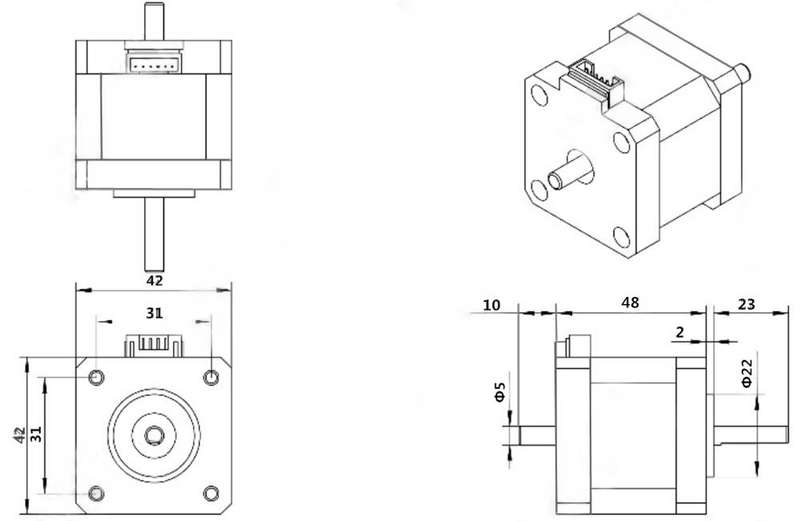

Shaft	Double shaft(1. D Shaft:20xD5mm 2. DShaft: 10xD5mm)
Phase	2
Step Angle	1.8ﾣ
Motor Size	42 x 48mm

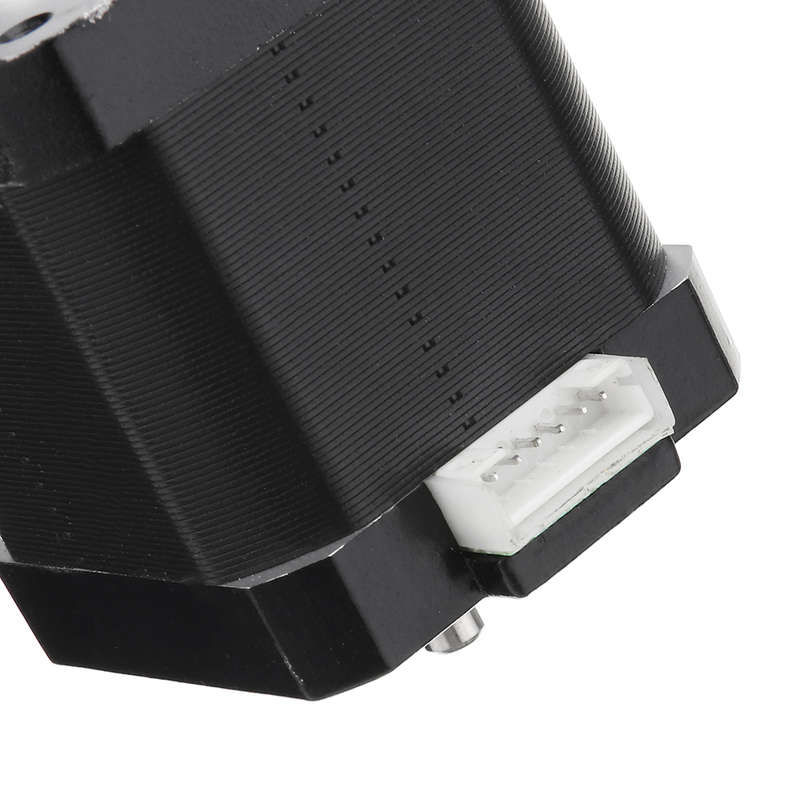

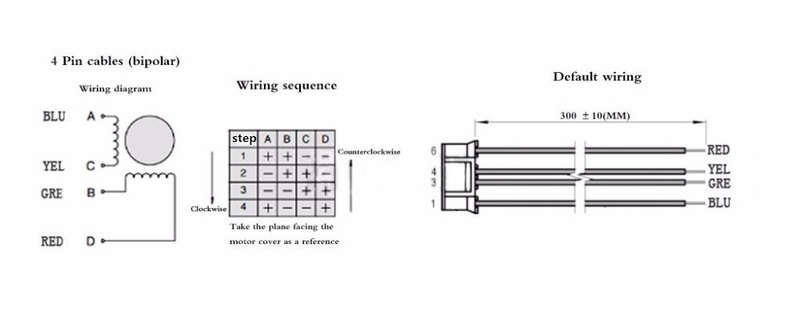

Outlet way	4 plug line

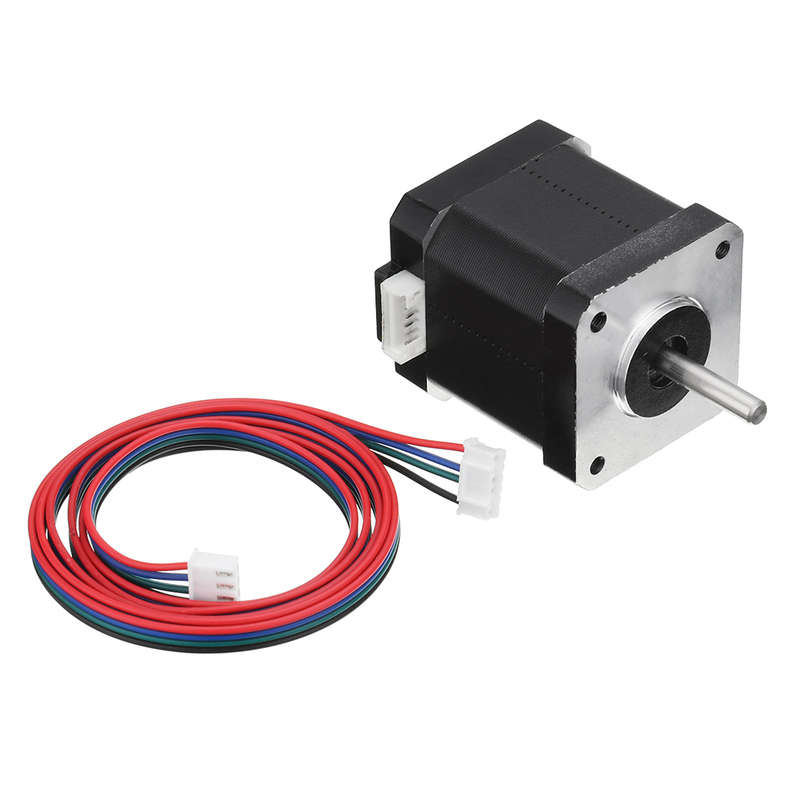

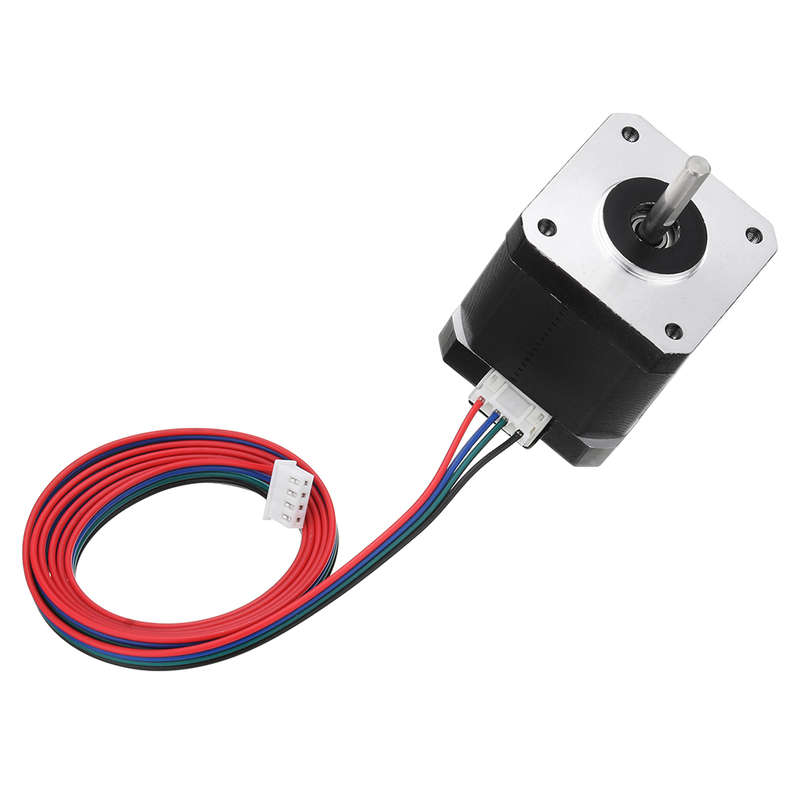

Motor leads	Dupont line(1M)
Adapter drive	Two-phase step drive
Scope	3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,Laser engraving, Automation Equipment, Non-standardEquipment,Placement machineect.

Electrical Specifications:

Model No.	Step Angle	Motor Length	Rated Current	Resistance /Phase	Inductance /Phase	Holding Torque	Detent Torque	Inertia Of Rotor	Lead
Model No.	( ﾣ)	(L)mm	(A)	()	(mH)	(N.cm)	(N.cm)	(G.cm2)	(No.)
17HS8401S-D150S	1.8	48	1.8	1.8	3.2	52	2.6	68	4

General Specification:

Precision angle step	&pm;5% (full step, no charge)
Resistance accuracy	&pm;10%
Precision inductance	&pm;20%
Temperature rise	80deg Max (rated current, 2 phase on)
Ambient temperature	( - 20ﾣ)-(+ 50ﾣ)
Insulation resistance	100M Min, 500VDC
Insultion Force	500VAC for a minute

Features: 1. Low noise. 2. Low heat. 3. Smooth operation. 4. Good acceleration performance.
5. Black surface treatment, double shaft. Package Included:
1 X17HS8401S-D150SStepper Motor
