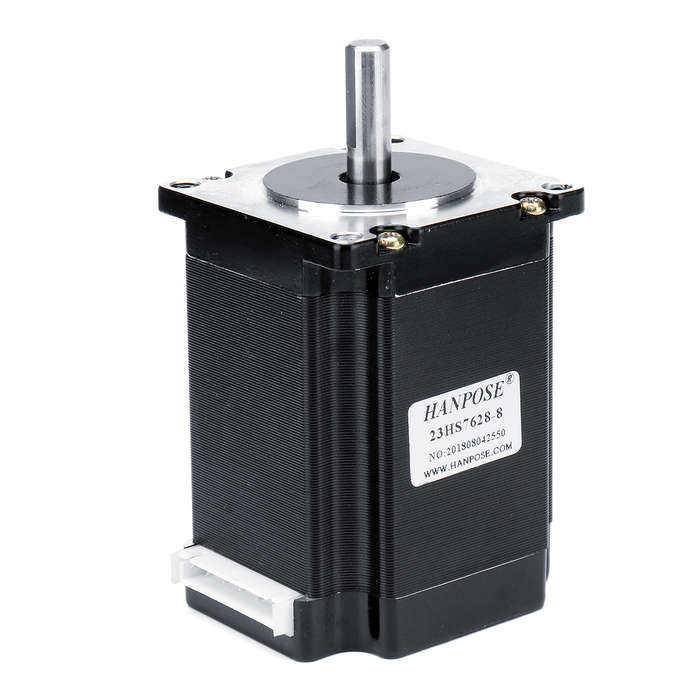

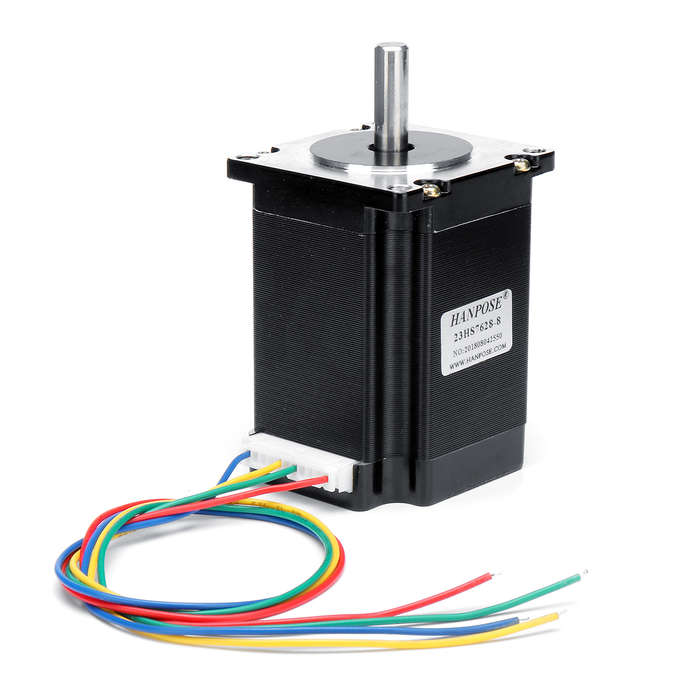

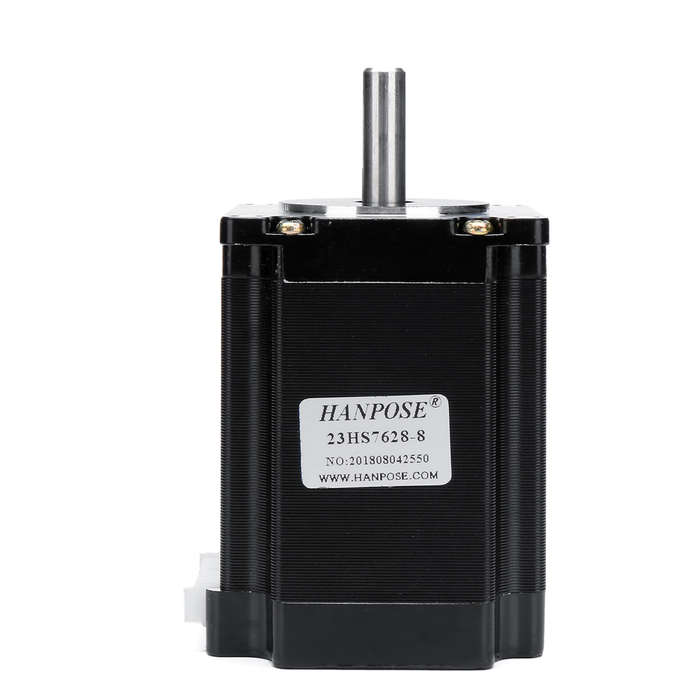

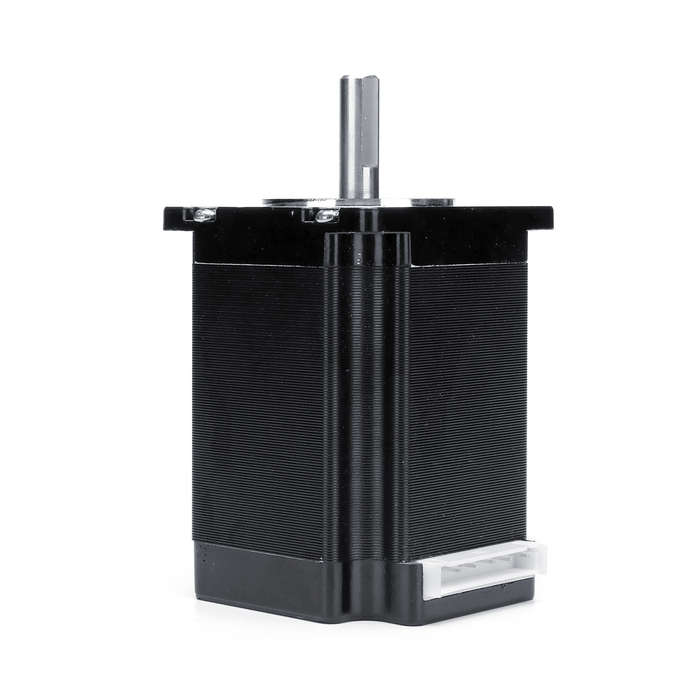

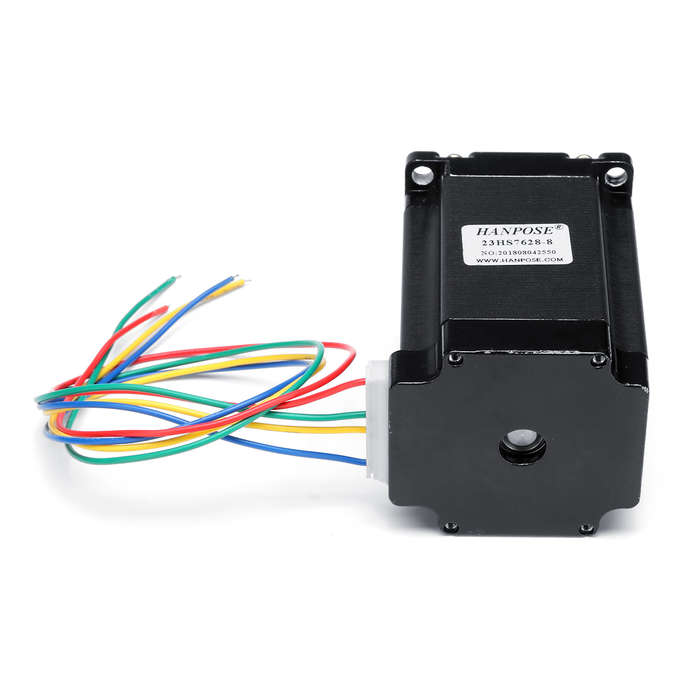

HANPOSE 23HS7628 76mm Nema 23 Stepper Motor 57 Motor 2.8A 189N.cm 4-lead CN... (SHAFT DIAMETER: 8MM)

New

20 available

R994.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3786

92.82 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

648369079

SELECTED OPTION:
SHAFT DIAMETER: 8MM

Description:
HANPOSE23HS762876mm Nema 23 Stepper Motor 57 Motor 2.8A 189N.cm 4-lead CNC Laser Grind Foam Plasma Cut Engraving Machine
Certification:CE,ROSH,ISO,FCC
Shaft Diamter: 6.35mm or 8mm D Shaft

Specification:

Model	23HS7628
Phase	2
Step Angle	1.8ﾣ

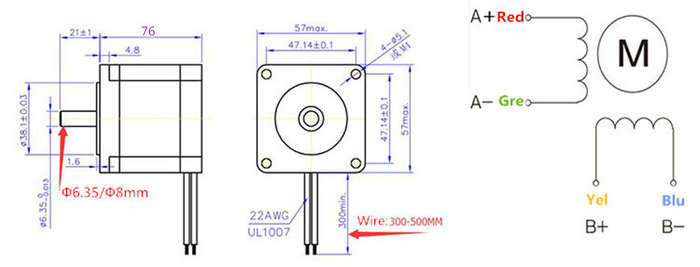

Motor Size	57 x 76mm
Shaft	D shaft 22xD6.35 or D8mm
Outlet way	4 plug line

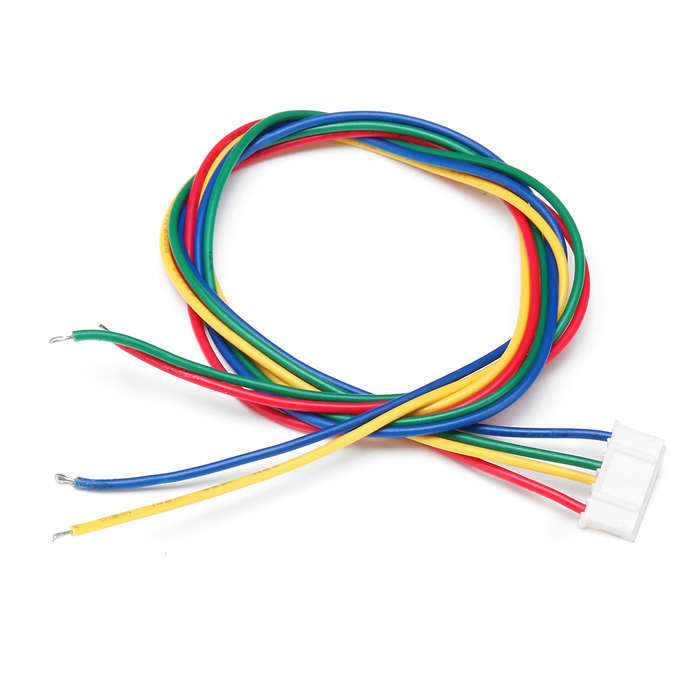

Motor leads	30cm Wire
Adapter drive	Two-phase step drive
Scope	3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,Laser engraving, Automation Equipment, Non-standardEquipment,Placement machineect.

Electrical Specifications:

Model No.	Step Angle	Motor Length	Rated Voltage	Rated Current	Resistance /Phase	Inductance /Phase	Holding Torque	Inertia Of Rotor	Lead
Model No.	( ﾣ)	(L)mm	(V)	(A)	()	(mH)	(N.cm)	(G.cm2)	(No.)
23HS7628	1.8	76	3.2	2.8	1.13	3.6	189	480	4

General Specification:

Precision angle step	&pm;5% (full step, no charge)
Resistance accuracy	&pm;10%
Precision inductance	&pm;20%
Temperature rise	80deg Max (rated current, 2 phase on)
Ambient temperature	( - 20ﾣ)-(+ 50ﾣ)
Insulation resistance	100M Min, 500VDC
Insultion Force	500VAC for a minute

Features: 1. Low noise. 2. Low heat. 3. Smooth operation. 4. Good acceleration performance. Package Included:
1 X23HS7628Stepper Motor

More Details:
