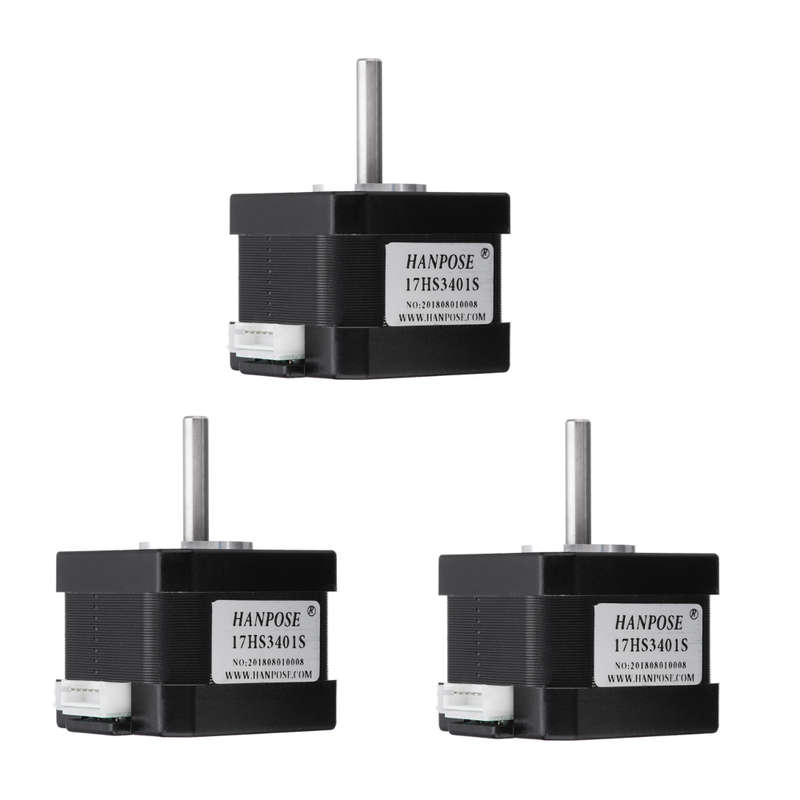

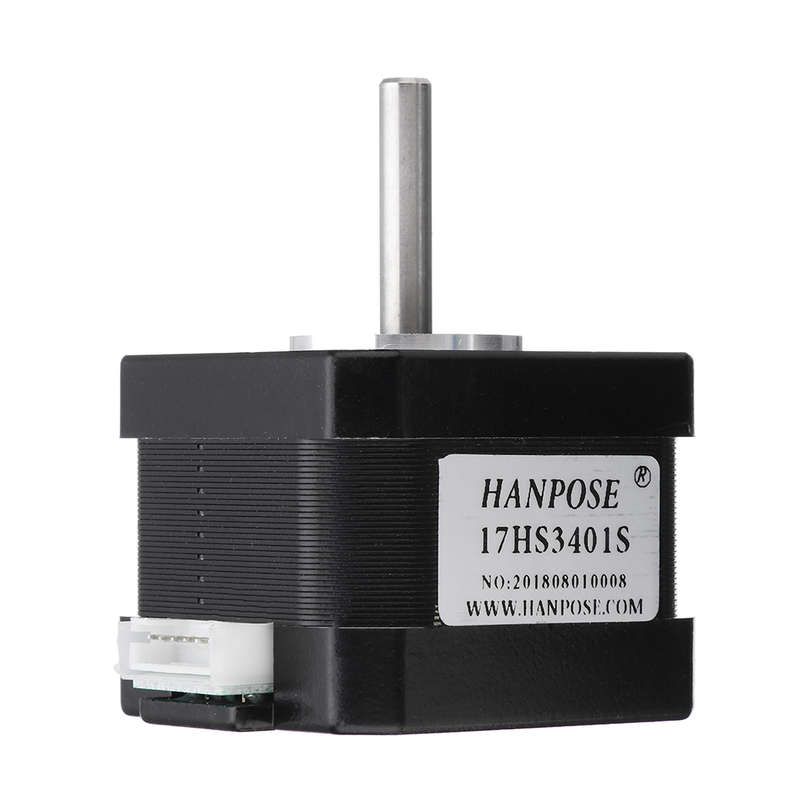

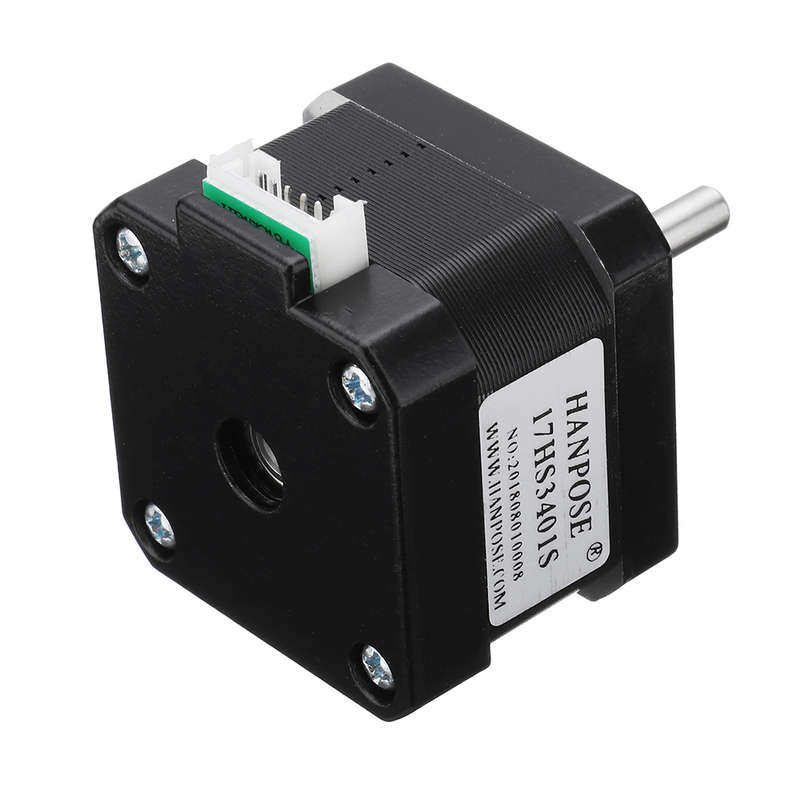

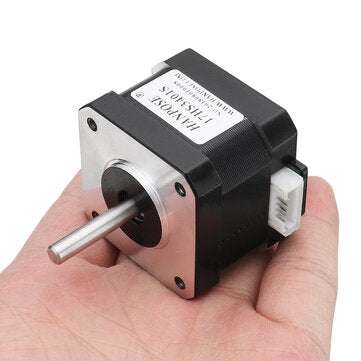

HANPOSE 3pcs 17HS3401-S 34mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.3A 28N.cm 4-lead for CNC Laser

20 available / new

R863.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3483

93.48 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641125461

Certification:CE,ROSH,ISO,FCC
Color: Black(Surface Treatment)

Specification:

Model	17HS3401-S
Phase	2
Step Angle	1.8ﾣ
Motor Size	42 x 34mm
Shaft	D shaft 21 xD5mm

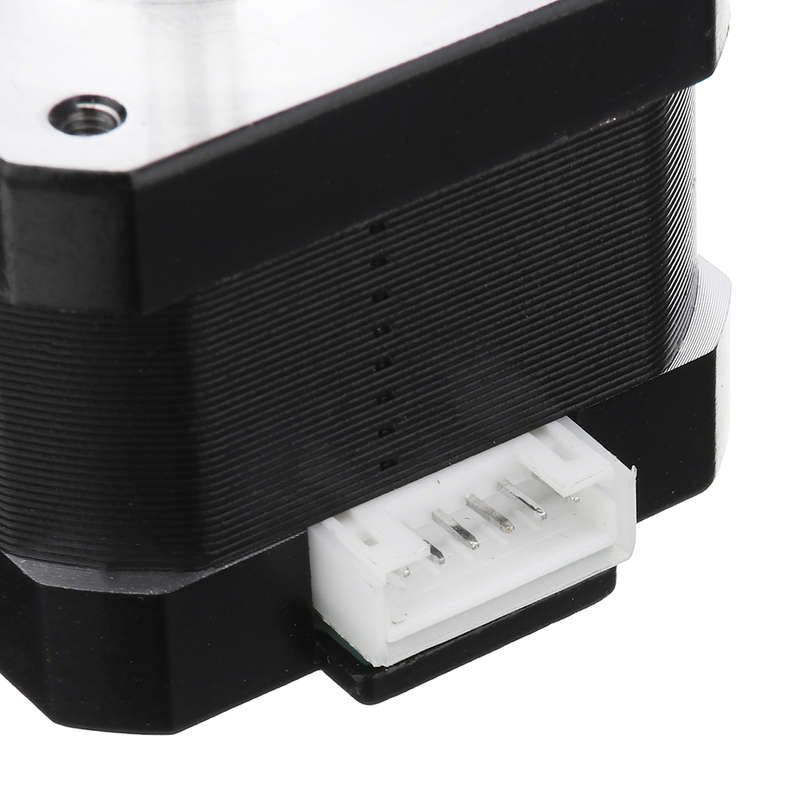

Outlet way	4 plug line
Motor leads	Dupont line(1M)
Adapter drive	Two-phase step drive
Scope	3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,Laser engraving, Automation Equipment, Non-standardEquipment,Placement machineect.

Electrical Specifications:

Model No.	Step Angle	Motor Length	Rated Current	Resistance /Phase	Inductance /Phase	Holding Torque	Detent Torque	Inertia Of Rotor	Lead
Model No.	( ﾣ)	(L)mm	(A)	()	(mH)	(N.cm)	(N.cm)	(G.cm2)	(No.)
17HS3401-S	1.8	34	1.3	2.4	2.8	28	1.6	34	4

General Specification:

Precision angle step	&pm;5% (full step, no charge)
Resistance accuracy	&pm;10%
Precision inductance	&pm;20%
Temperature rise	80deg Max (rated current, 2 phase on)
Ambient temperature	( - 20ﾣ)-(+ 50ﾣ)
Insulation resistance	100M Min, 500VDC
Insultion Force	500VAC for a minute

Features: 1. Low noise. 2. Low heat. 3. Smooth operation. 4. Good acceleration performance. Package Included:
3pcs X17HS3401-SStepper Motor

More Details:
