Description :
Hantek 6052BE PC-Based USB Digital Dso Storage Oscilloscope 2 Channels
Standard USBXITM interface, easyly inserts into USBXITM housing to make up a combination instrument.
USB2.0 interface, no external power source required, easy to use.
Be suitable for notebook computer, product line maintenance, be used easily on business.
Dimensions (mm) : 205(L) x120(W) x35(H), be carried easily.
High performance, 150MS/s real-time sampling, 50MHz Bandwidth,
Operating System : Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.
23 measurement functions, PASS/FAIL Check, be suitable for technical application.
Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
Save waveform in the following : text file, jpg/bmp graphic file, MS excel/word file.
FFT
One computer can connect many DSO, extend channel easily.
LabviewVBVCDelphiC++Builder Second Design instance.
Specification :
| Model | Hantek6082BE | Hantek6052BE | Hantek6022BE | SainSmartDDS120 | SainSmartDDS140 |
| Channel | 2 Channels | ||||
| Bandwidth | 80MHz | 50MHz | 20MHz | 20MHz | 40MHz |
| Input Impedance | 1MΩ 25pF | ||||
| Max. Sample rate | 250MSa/s | 150MSa/s | 48MSa/s | 50MSa/s | 200MSa/s |
| Coupling | AC/DC/GND | ||||
| Vertical resolution | 8Bit | 8Bit | 8Bit | ||
| Gain range | 10mV-5V, 9Steps | ±5V, ±50V, ±500V, | ±5V, ±50V, ±500V, | ||
| DC accuracy | ±3% | ±3% | ±3% | ||
| Timebase range | 4ns-1h, 38 Steps | 　 | 　 | ||
| Vertical adjustable | Yes | ||||
| Input protection | Diode clamping | ||||
| X-Y | Yes | ||||
| EXT. input | Yes | No | No | No | |
| Trigger Mode | Auto, Normal and Single | ||||
| Trigger Slope | +/- | ||||
| Trigger level adjustable | Yes | ||||
| Trigger Type | Rising edge, falling edge | ||||
| Trigger Source | CH1, CH2, EXT | CH1, CH2 | |||
| Pre/Post trigger | 0-100% | ||||
| Buffer size | 10K-64KB/Channel | 1M | 　 | 　 | |
| Sampling selection | Yes | ||||
| Waveform Display | port/line, waveform average, persistence, intensity | ||||
| Network | Open/Close | ||||
| Vertical mode | CH1, CH2, Dual, ADD | ||||
| Cursor measurement | Yes | ||||
| Math | FFT, addition, subtraction, multiplication, division. | ||||
| Cursor | Frequency, Voltage | ||||
| Accessories | S/W CD, probes, manual, USB cord | ||||

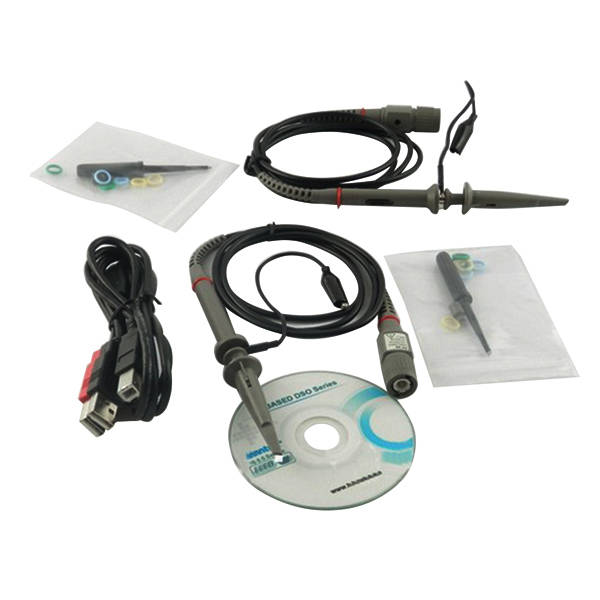

Package includes :
1 x Professional Hantek 6052BE Oscilloscope
2 x Oscilloscope probe
1 x USB Cable
1 x CD (including manual etc.)
Full accessories as picture shows. (Laptop not included)

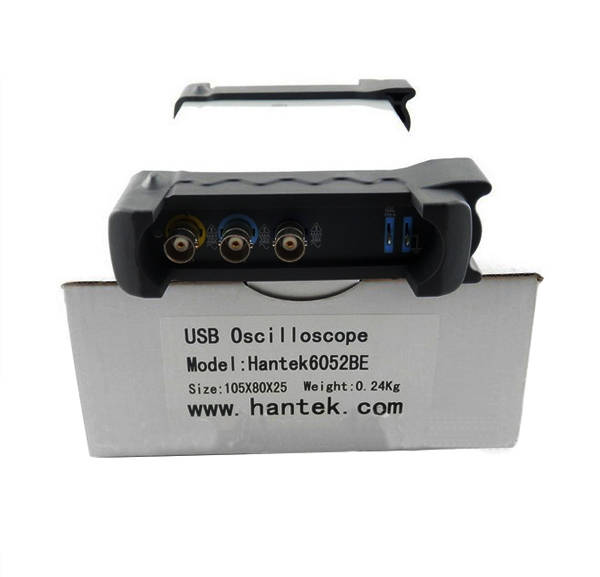

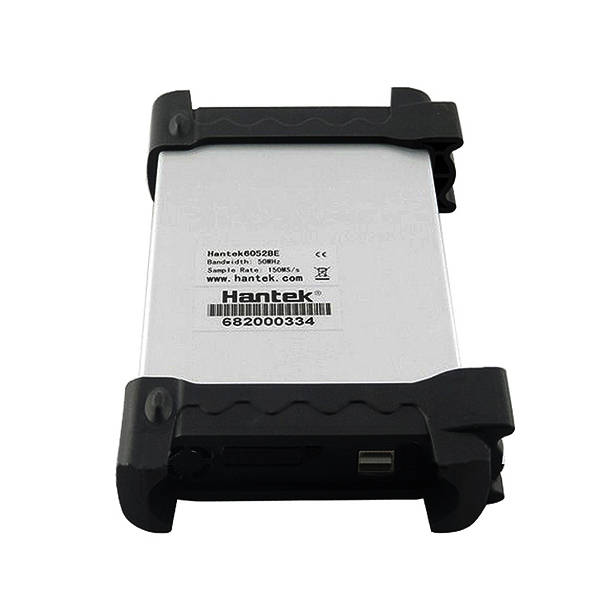

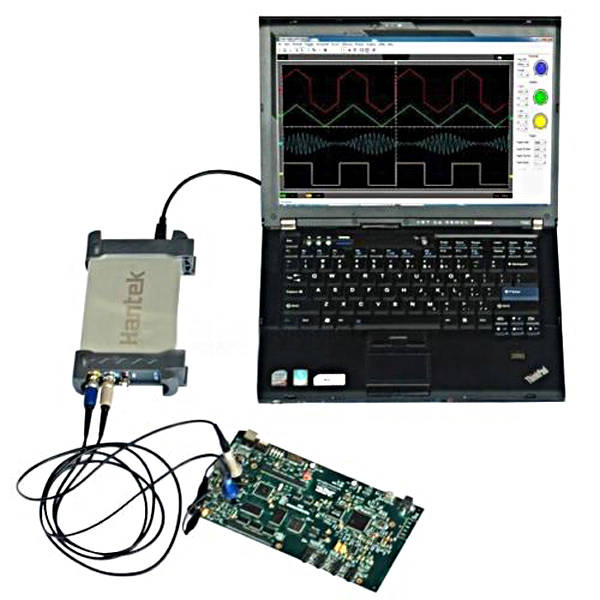

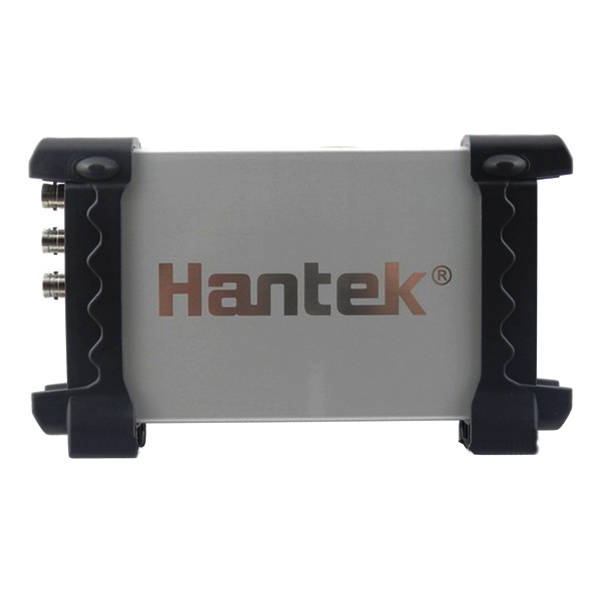

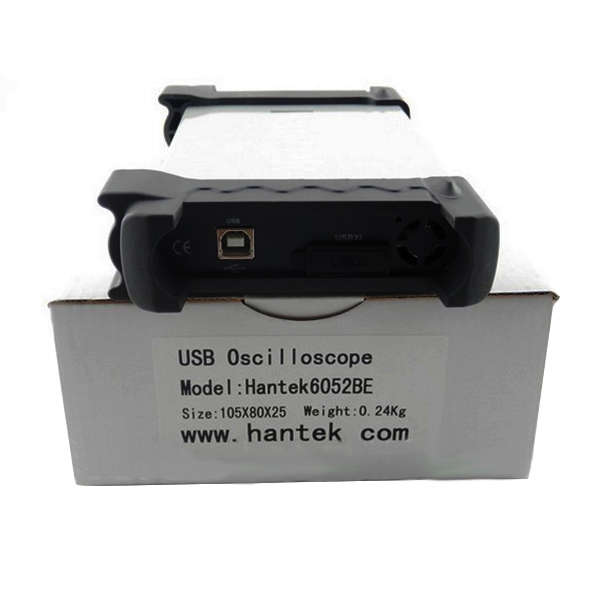

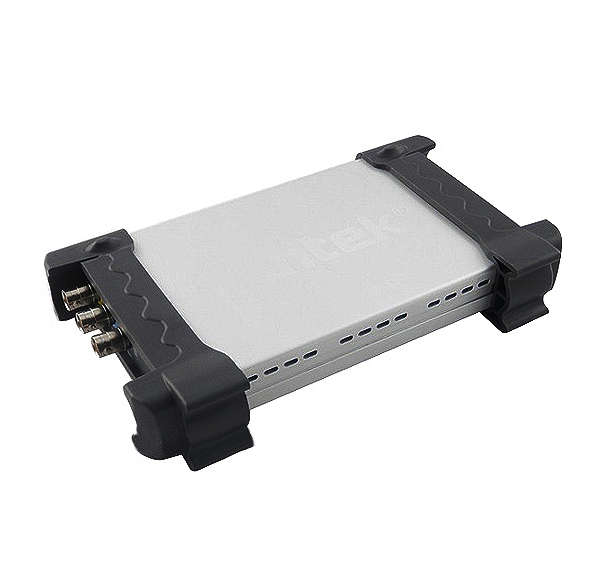

Details pictures :
