Description:

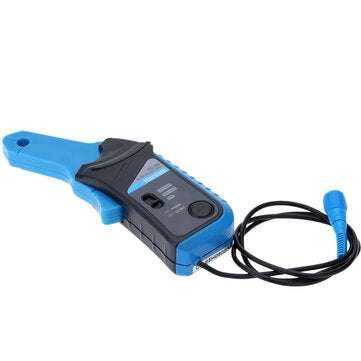

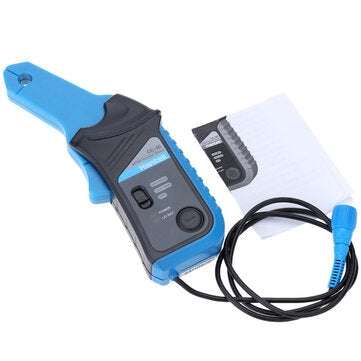

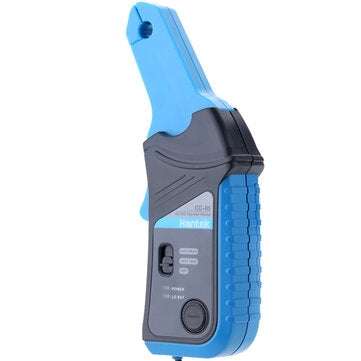

Hantek CC65 Digital AC/DC Current Clamp Meter Multimeter Oscilloscope with BNC Connector

It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. When measuring AC/DC Current with the Current Clamp, a multimeter or scope can directly measure the current up to 65A, with a frequency uo to 20KHz. In this method, there is no need to break a circuit or to affect the isolation to measure the current. Features:
AC/DC frequency range: up to 20KHz. Effective measurement range: 20mA to 65A DC. Allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. If connect to an oscilloscope by BNC type connector, you`re able to observe the current waveforms. Application:
Power icircuit measurement and malfunction analysis; Motor drive of frequency converter (or other electronics) measurement; Power electronics equipment measurement.

DCA Range	1 mV /10mA	(1.5%5mA) 10mA ~20A
DCA Range	1mV/100mA	(2%20mA) 100mA ~40A; (4%0.3A)40A~65A
ACA Range	1mV/10mA	(2%30mA) 100mA ~10A(40Hz ~ 2KHz); (4%30mA) 100mA ~10A(2KHz ~ 10KHz); (6%30mA) 100mA ~10A(10KHz ~ 20KHz); (8%30mA)10A~15A(40Hz ~ 20KHz)
ACA Range	1mV/100mA	(2%30mA) 200mA ~40A(40Hz ~ 1KHz); (4%30mA) 200mA ~40A(1KHz ~ 2KHz); (6%30mA) 200mA ~40A(3KHz ~ 5KHz); (8%0.3A)40A~65A(40Hz ~ 20KHz)
Captured Conductor Size		9mm maximum
Low Battery Indictor		Red LED lighting
Operating Temperature		0 to 5070% R.H.
Storage Temperature		-20 to +70, 80% R.H.
Battery Type		9V DC, NEDA 1604,6F22,0006P( NOT INCLUDED)
Battery Life		100 hours typical with alkaline
Weight		250 gm typical
Dimensions		195mm(H) x 70mm(W) x 33mm(D)
Output		Supplied with coil cable with straight banana plug or BNC plug.
