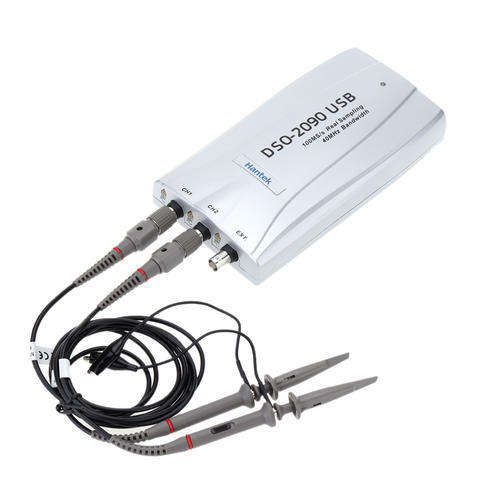

Hantek DSO2090 PC USB Digital Storage Oscilloscope Dual Channel 40MHz 100MSa/s
New
R3,300.00
Closed
26 Dec 15 06:03
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Returns
Replacementwarranty
Warranty Type: Replacement
1 year factory repair warranty buyer responsible for return post
Money-Back 7 Days
guarantee
Money-Back Guarantee:
7 Days: If product is not as described buyer responsible for return post
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
South Africa
Customer ratings:
Product code
e0763
Bob Shop ID
210269264
BID WITH CONFIDENCE, WE ARE VERIFIED!!!
It is a 2 channel oscilloscope with stable performance and high accuracy. With 100MSa/s real-time sampling and 40MHz bandwidth.
Features:
Professional digital storage oscilloscope with 100MSa/s real-time sampling and 40MHz bandwidth.
With over 20 kinds of auto measurement functions, PASS/FAIL check function.
Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
Waveform data can be saved in the excel, bmp, jpg format.
USB 2.0 interface, no external power source required, easy to use.
FFT spectral analysis function.
Suitable for PC, product line maintenance or technical application.
Operating system: Win7, WinNT, WinXP, Win8, Vista.
One computer can connect with several oscilloscope at the same time.
Specifications:
Channel: 2 Channel
Bandwidth: 40MHz
Sampling Rat: Max.100MSa/s
Storage Depth: 10k-32kb/ch
Vertical Resolution: 8bit
Impedance: 1MΩ 25pF
Coupling: AC/DC/GND
Voltage Range: 10mV-5V, 9steps
Vertical Accuracy: ±3%
Timebase Range: 4ns-1h, 38steps
Vertical Adjustable: Yes
Input Protection: Diode Clamping
X-Y: Yes
Horizontal Mode: Auto, Normal and Single
Trigger Slope: +/-
Trigger Level Adjustable: Yes
Trigger Source: CH1, CH2, EXT
Pre Trigger: 0-100%
Sampling Selection: Yes
Waveform Display: Port/Line, Average, Persistence, Intensity
Network: Open/Close
Math: FFT, Invert, Addition, Subtraction, Multiplication, Division
Cursor Display: Frequency, Voltage
Item Size: 18.5 * 10 * 3cm / 7.3 * 3.9 * 1.2in
Item Weight: 289g / 10.2oz
Package Size: 23 * 17 * 7.5cm / 9 * 6.7 * 3in
Package Weight: 670g / 23.6oz

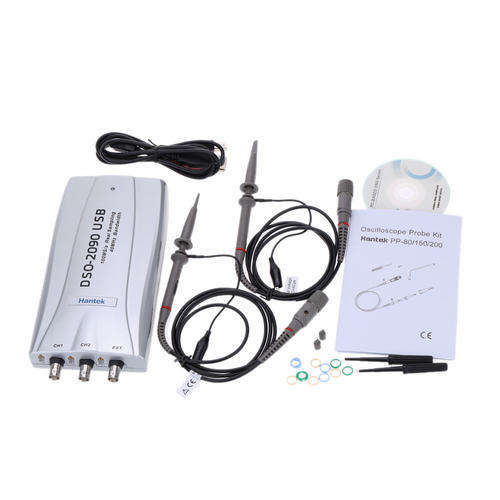

Package List:
1 * Digital Oscilloscope
1 * USB Cable
1 * CD
2 * Probes
