Powerful, Feature packed USB Oscilloscope 200MHz, 250Ms/s

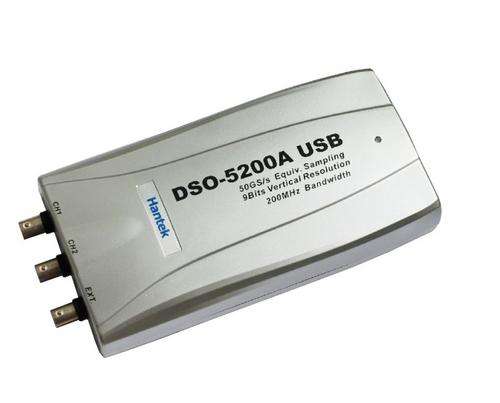

The DSO-5200A digital storage USB-oscilloscope is a fast and very powerful PC-based Oscilloscope with a multitude of advanced features to satisfy even the most demanding electronic engineer.  With 250 MSps and 9bit resolution this 200MHz digital oscilloscope is both faster and more accurate than similar oscilloscopes but without sacrificing portability.

Basic  Specifications DSO-5200A PC-Oscilloscope:
. Dual Channel (dual-trace) oscilloscope
. 250 MSPS sampling rate
. 200 MHz bandwidth
. 9 bit resolution
. USB2.0 powered
. Input capacitance: 1Mohm || 25pF

Software Features DSO5200A PC-Oscilloscope:
. Very intuitive PC- software that mimics the look and feel of conventional oscilloscopes.
. 23 oscilloscope measurements including:
  Min/Max, Overshoot/Undershoot, Mean, RMS, +/- duty cycle and  rise/fall time.
. Horizontal and Vertical Cursors.
. 4 different FFT analysis  (Spectrum Analyser).
. X-Y (circular) plotting of data.
. Mathematical functions on oscilloscope waveforms, e.g. Ch3 = Ch1+Ch2.
. Reference waveforms can be stored on PC and loaded for comparison.
. Recording of real-time input data.
. Pass / Fail Testing.
. Labview drivers.
. SDK available for application development (C/C++ API).

The USB Oscilloscope Package Includes:
DSO-5200A PC based Oscilloscope, two 200MHz oscilloscope test probes, USB cable, CD with PC software and user manual.

We keep stock and can courier immediately once payment clears.
