Hantek P2301B 300MHz 100M Oscilloscope Probe BNC Protective Cap Scope Clip Probe

20 available / new

R776.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3478

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641125476

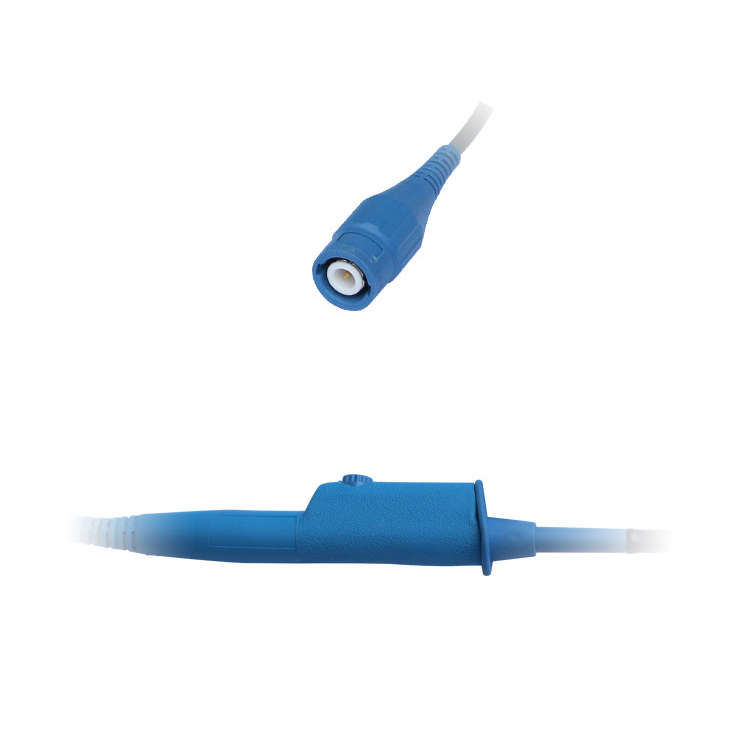

Features: 1. The main body is grounded, which is smoother and reliable. 2. The probe is fully grounded in the form of injection molding, which greatly increases the service life of the grounding wire. 3. BNC (Q9) material, equipped with an insulating sheath on the outside of the BNC, which improves the safety level. 4. The probe is commonly used in oscilloscopes on the BNC interface on the market.

Specification: Product model: P2300B Product Name: Oscilloscope Probe Product weight: 0.075kg Bandwidth: 1-300MHz Maximum input voltage: 600V Attenuation ratio: 100X Input resistance: 100M

NOTE:

When connecting the probe to any input channel for the first time, a probe check is required to match the probe to the input channel. Probes that are not compensated or compensated for deviations can cause measurement errors or errors. 1. Set the software selection X10. Set the probe attenuation factor X10 and connect the probe to the CH1 channel. If using a hook probe, make sure the probe is in close contact with CH1. Connect the probe tip to the signal output connector of the probe compensator, and the reference lead clip is connected to the ground connector of the probe compensator. 2. Check the shape of the displayed waveform to determine if the probe compensation is correct, turn on CH1, and press the aAUTOa button. 3. Check the shape of the displayed waveform to determine if the probe compensation is correct.

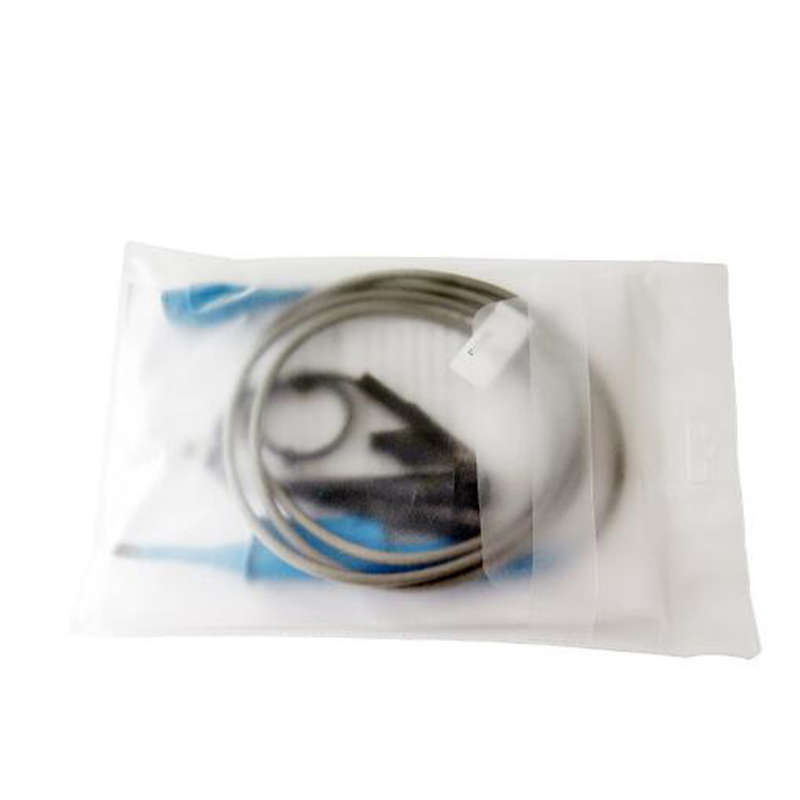

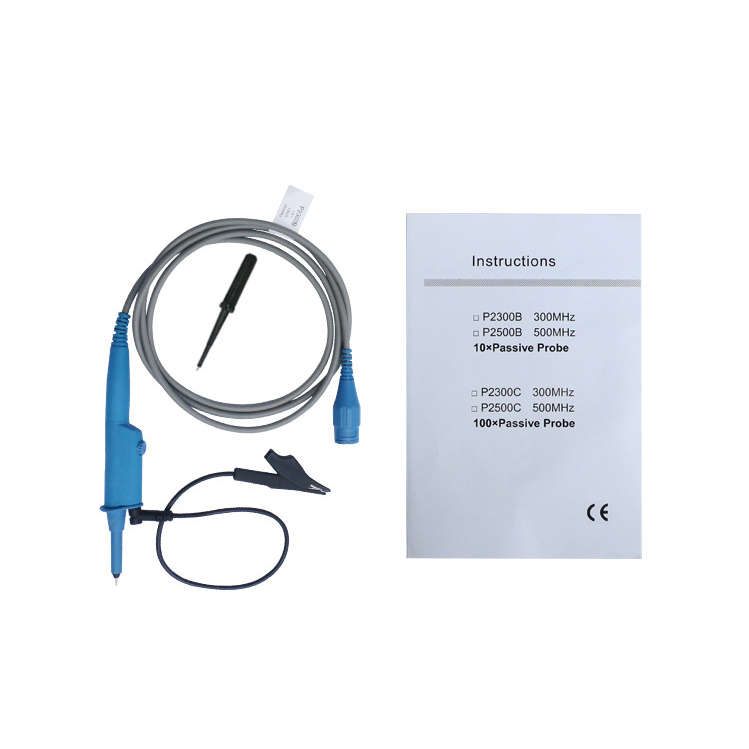

Packageincludes:

1 XP2300BOscilloscope Probe

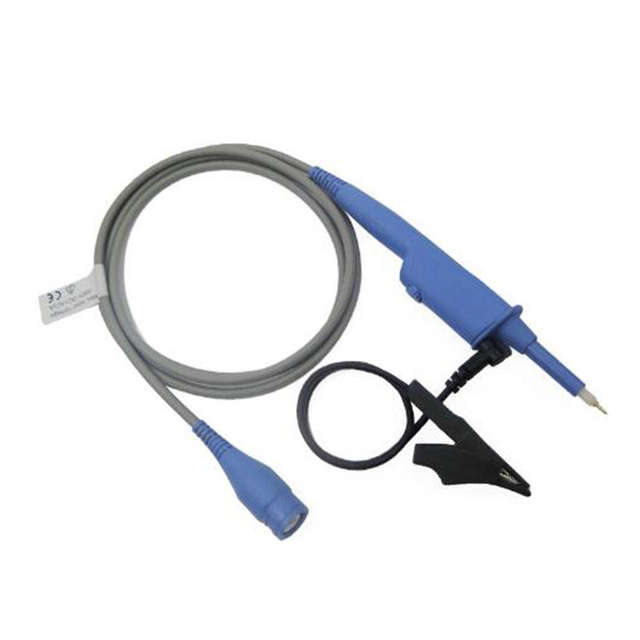

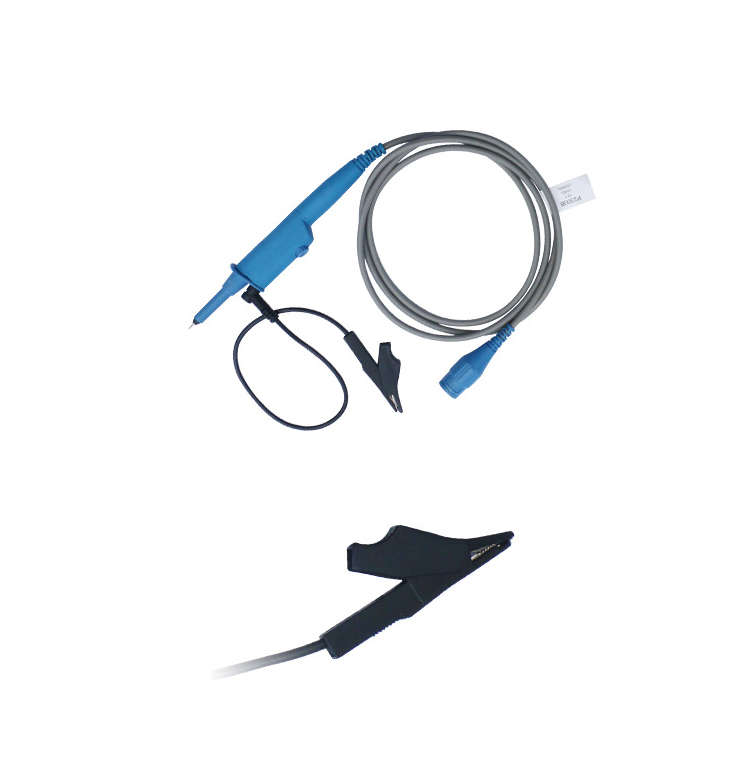

Detailspictures:
