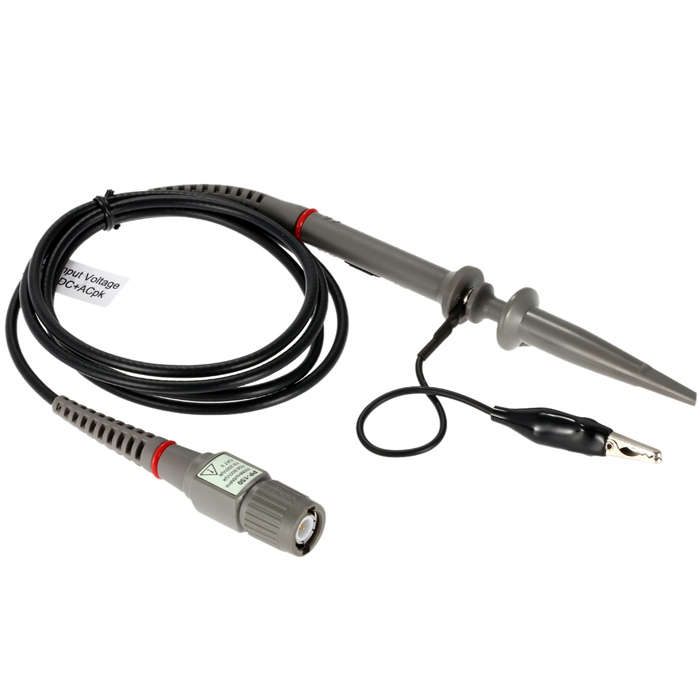

Hantek PP-150 1PCE Oscilloscope Probes 100MHz 1X 10X Digital Multimeter Oscilloscope Clip Probe

New

20 available

R496.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4028

92.42 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

654099848

Description:

Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations. Attenuation ratio: 1x and 10x optional. Compatible with domestic and international digital and analog oscilloscopes in relevant frequency. Features:
High quality and reliable. Attenuation ratio: 1 and 10 adjustable. Portable design according with ergonomics. Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations. Safety standards: it has passed the CE Attestation of European Community. Application Fields: Compatible with domestic and international digital and analog oscilloscopes in relevant frequency. Measurement in intermediate and low frequency signals. Specifications:
Color: Black + Grey Type: PP-80 / PP-150 Attenuation: x1 x10 Input Resistance: 1M: 10M Input Capacitance: x1: 85pF-115pF x10: 18.5pF-22.5pF Compensation Range: 15pF ~ 35pF System Bandwidth: x1: DC-5MHz x10: DC-100MHz Input Voltage: x1: <200V DC +Peak AC x10: <600V DC +Peak AC Operating Temperature: -10a~ +50a/ 14a~ 122a Non Operating Temperature: -20a~ +75a/ -4a~ 167a Humidity: a85% (Relative Humidity) Cable Length: 120cm / 47.2in Item Size: Approx. 17 x 2 x 2cm / 6.7 x 0.8 x 0.8in (ONLY Probe) Item Weight: Approx. 49.1g / 1.7oz Package Size: Approx. 20 x 13 x 2cm / 7.9 x 5.1 x 0.8in Package Weight: Approx. 74g / 2.6oz Package included:

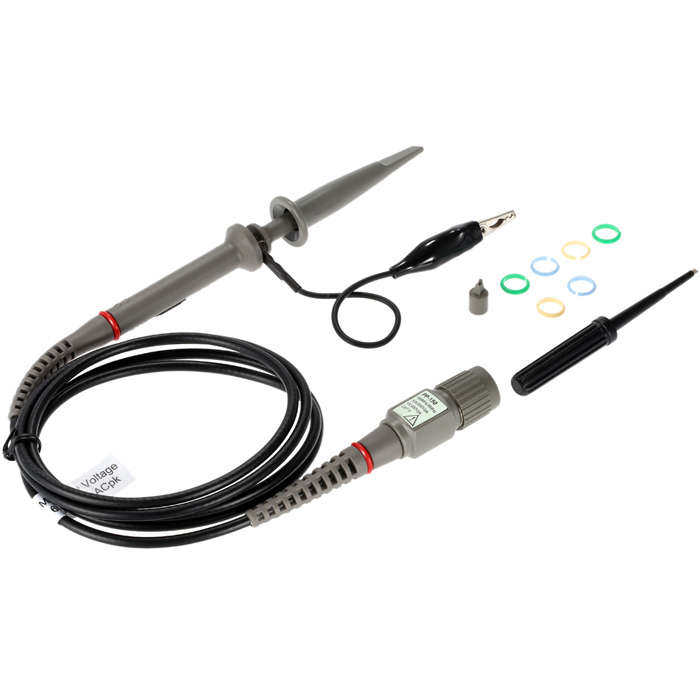

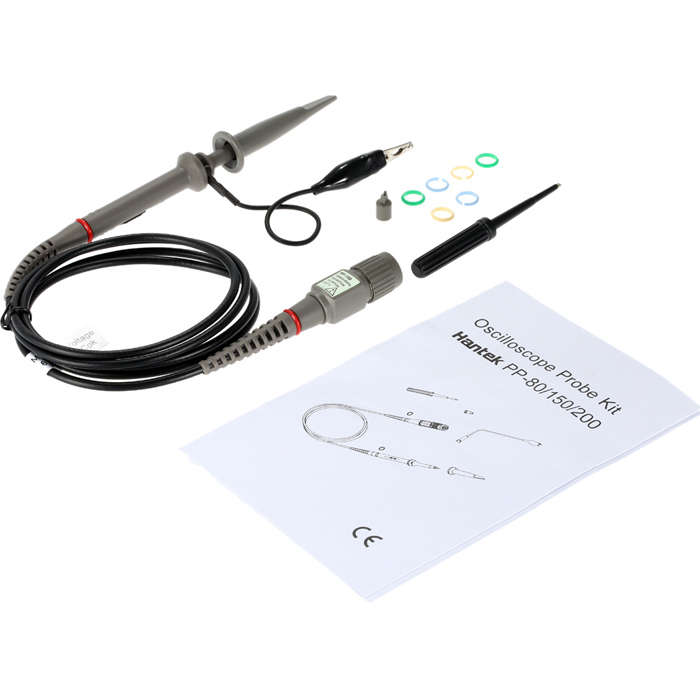

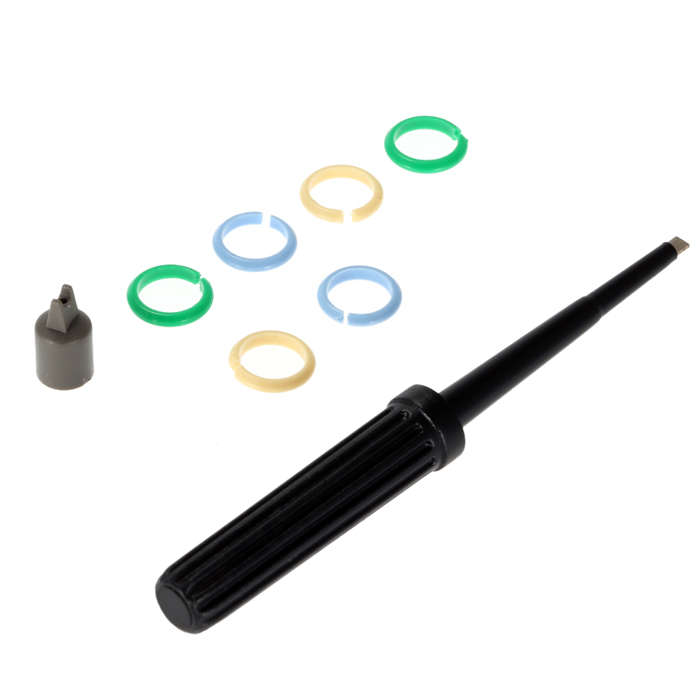

1 x Oscilloscope Probe 1 x Adjustment Tool 1 x Tip Locating Sleeve 6 x Color Circle(send by random!) 1 xUser Instruction

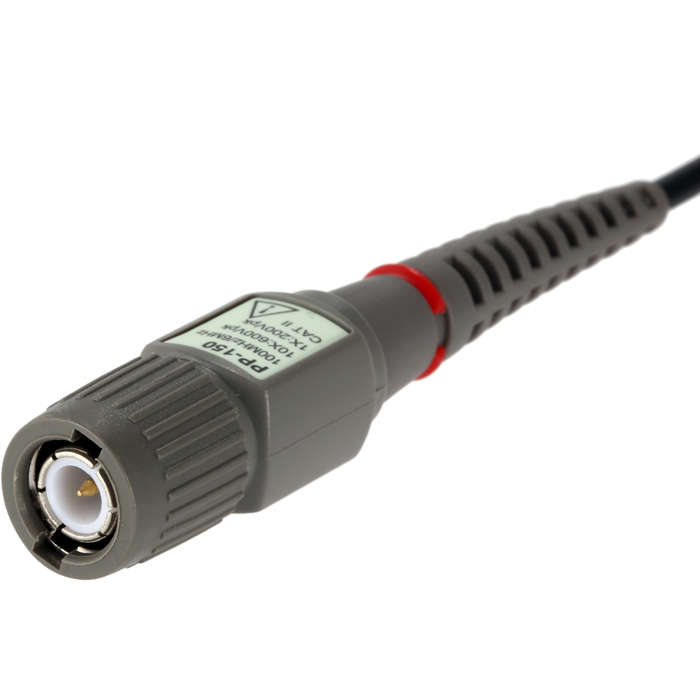

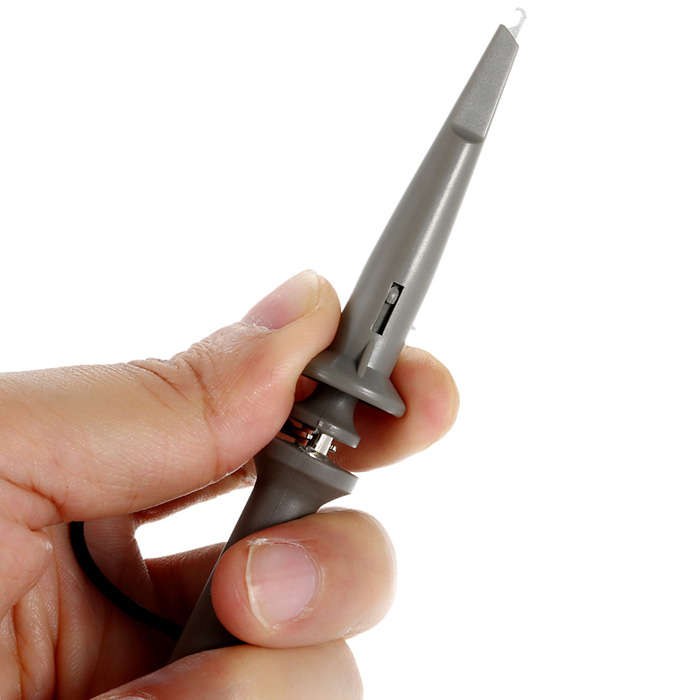

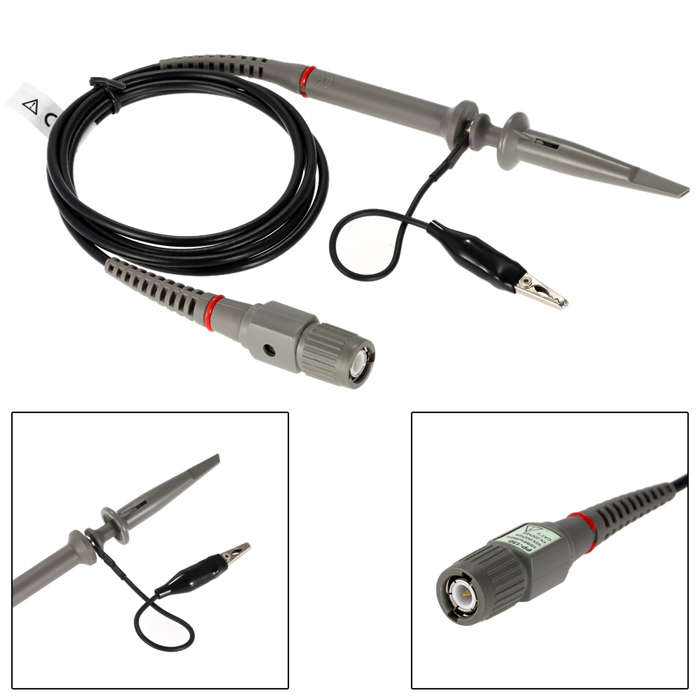

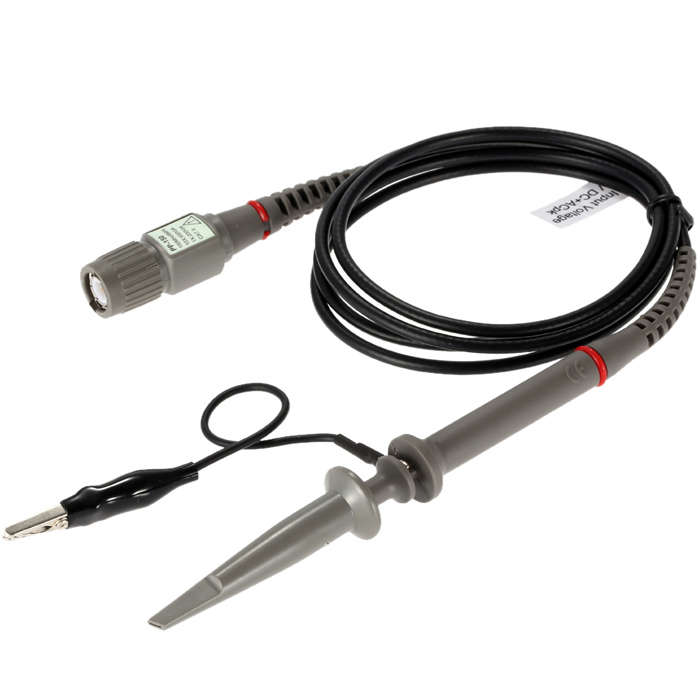

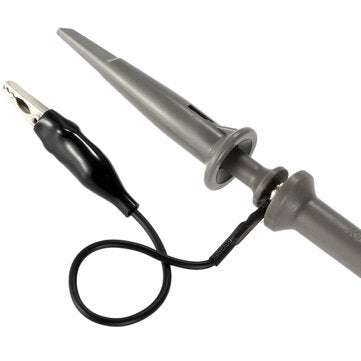

Detail Pictures:
