Happymodel DiamondF4 5-In1 F4 1S Flight Controller AIO 5A ESC 5.8G 25-2... (RECEIVER: FRSKYRECEIVER)

12 were available / new

R1,295.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3509

93.41 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

615157814

SELECTED OPTION:
RECEIVER: FRSKYRECEIVER

Introduction:

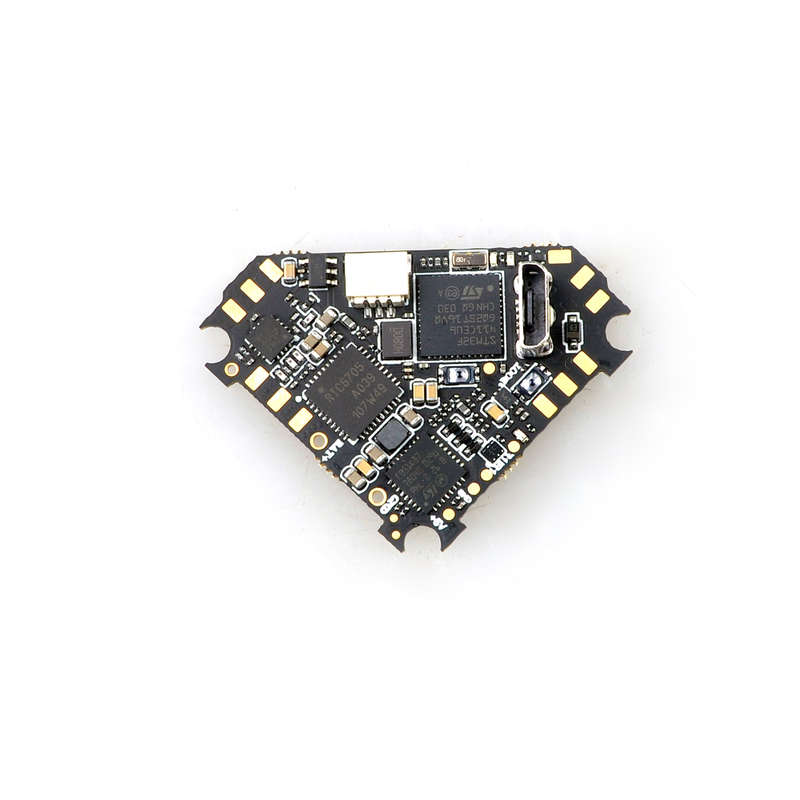

This is an ultra-light and highly integrated all-in-one brushless flight controller.

The motor connection uses the original welding method to be more reliable. It is the best choice for 1s brushless tiny whoop.

Description:

Brand: Happymodel

Model: DiamondF4

Item Name: F4 1S Flight Controller AIO ESC VTX Receiver 5IN1 Board

Flight controller	(Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4FR (Flysky SPI RX version)DiamondF4 FS?FC Firmware target: CrazybeeF4FS MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Original whoop size compatible Power supply: 1S?battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI Frsky/Flysky receiver Built-in 5V 1A BEC
Onboard 4in1 ESC	MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3?seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_8.HEX Default protocol: DSHOT600

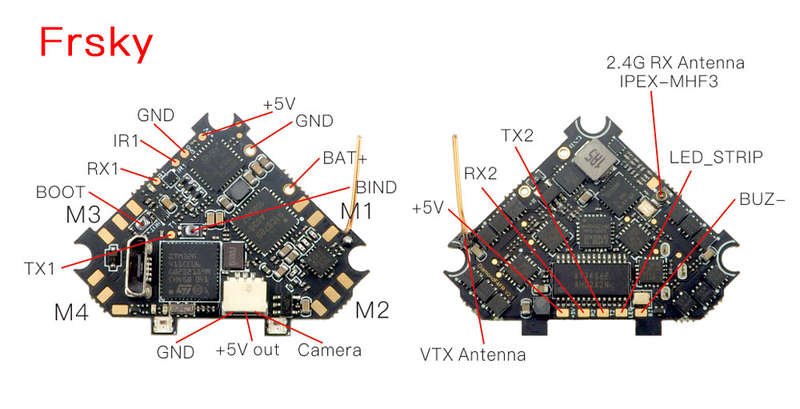

Onboard Frsky SPI D8?receiver Version (Optional)	SPI BUS receiver?Frsky D8 compatible Compatible Non EU transmitter?D8 model Channels: 8ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m

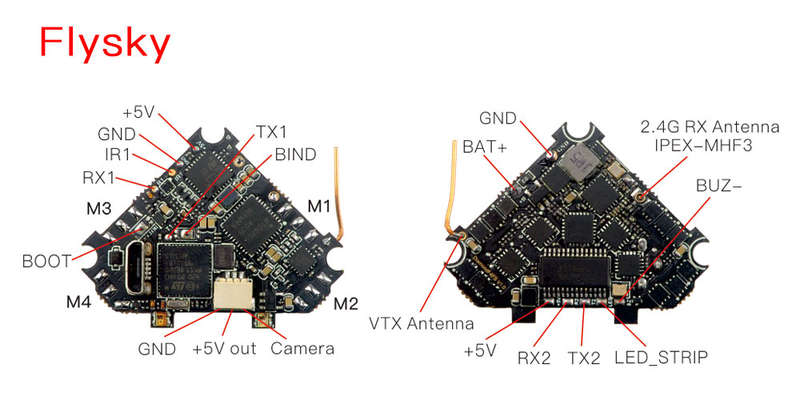

Onboard Flysky SPI receiver Version?(Optional)	SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 200~300m Failsafe support
Onboard 5.8g VTX	Output power: 25mw~200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels(include?Race?band) Smartaudio ready
