Happymodel ES24TX Slim 2.4g ExpressLRS ELRS Nano TX module for X-lite/S/Pro X9 Lite Tango2 FPV Racing Drone

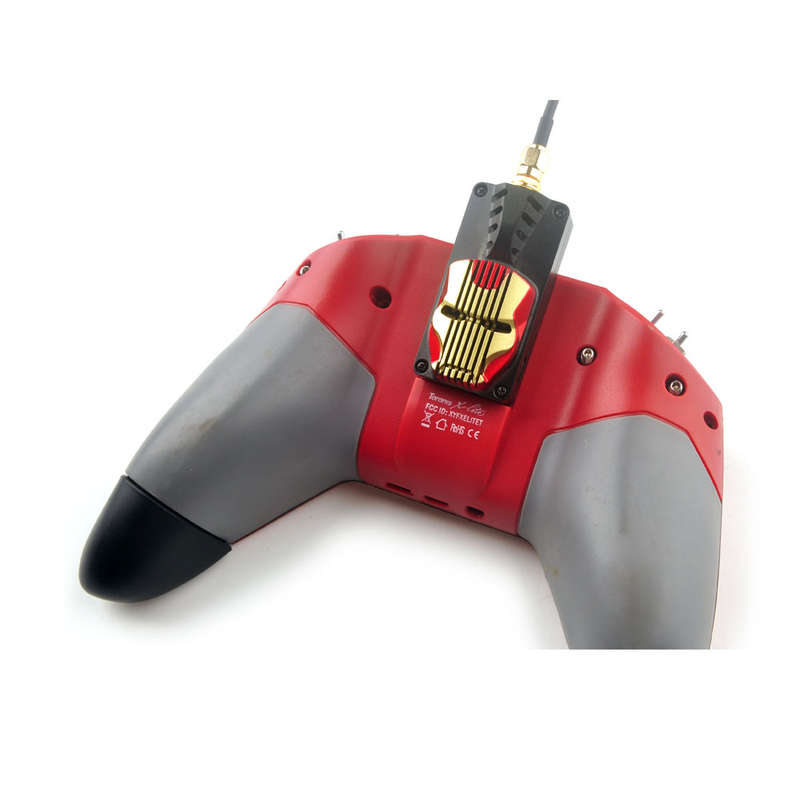

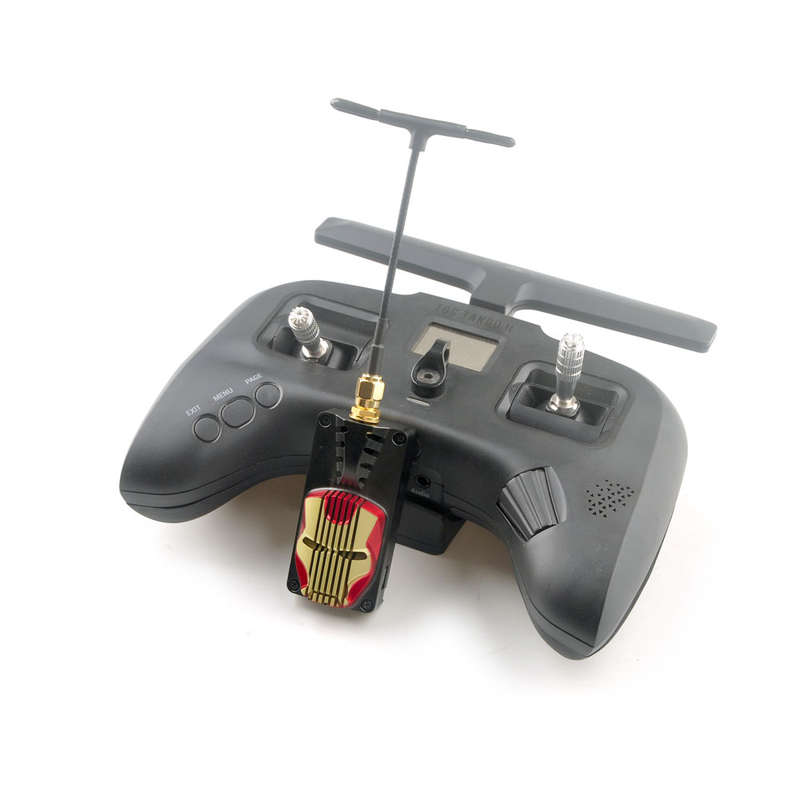

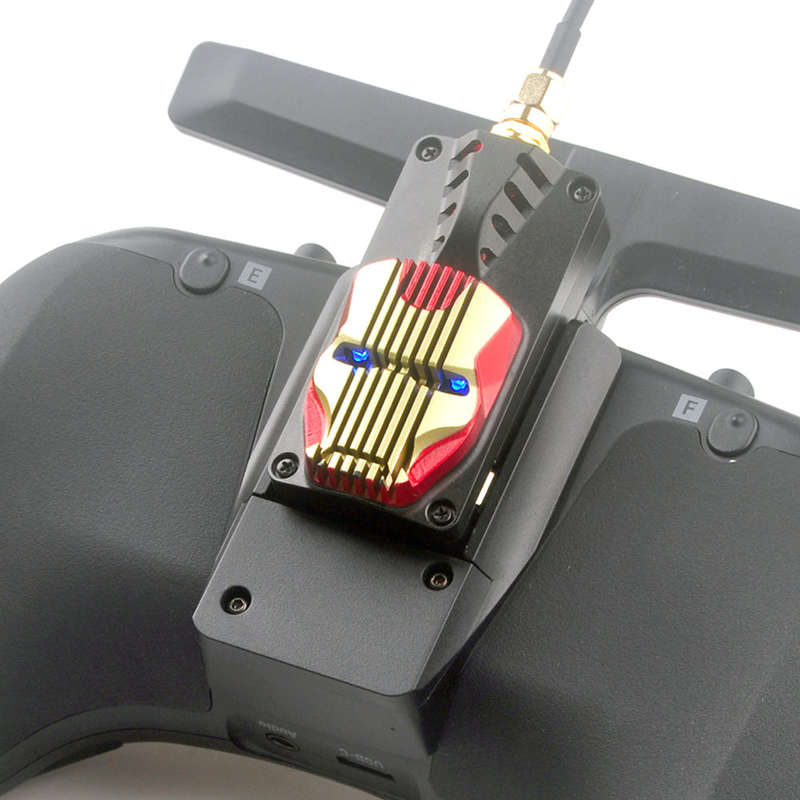

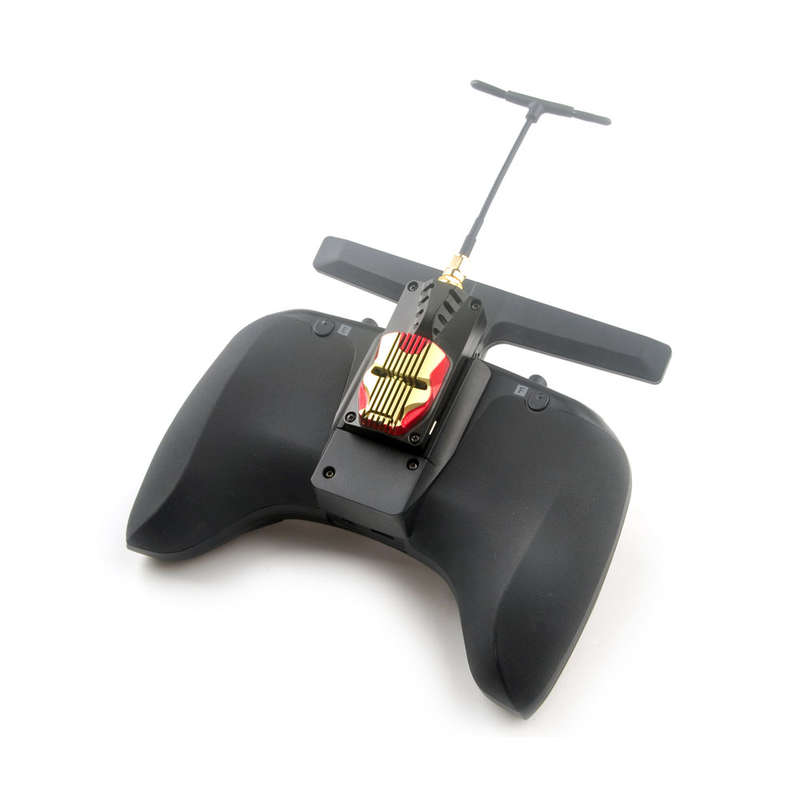

This Slim?TX module is designed by Happymodel and based on the open source- ExpressLRS which is a very popular low latency and high re-flashed rate RF module for RC Airplane and FPV Racing?drone. Its main hardware architecture is ESP32, ESP8285 and SX1280 RF chip. The ES24TX Slim?module is a complete solution which is already pre-load the Expresslrs firmware and ita??s plug and play for?Frsky X-lite/X-lite pro/X9 Lite , TBS Tango2.

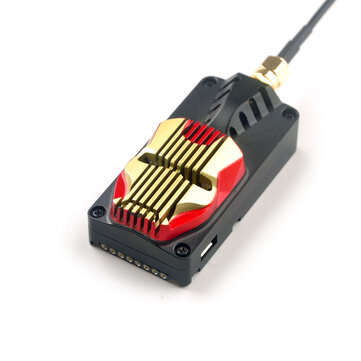

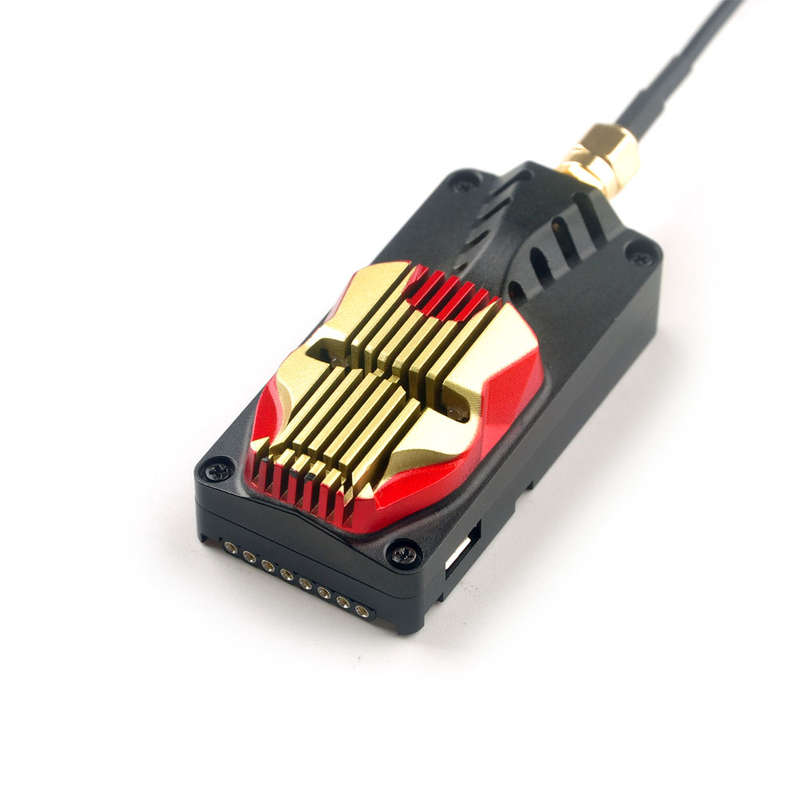

This Slim module comes with an aluminum alloy shell and is equipped with a cooling fan that automatically works when the module is working at 250mw.
Specifications:
Regulatory Domain: ISM2400
MCU:ESP32(main),ESP8285(aux,as espbackpack)
RF chip:SX1280IMLTRT
Lite Frsky?8pin socket
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
RF Output Power: 10dBm~24dBm
Power supply voltage: 5v~10v
Weight:?48gram(with antenna and case???
Dimension:?60mm*30mm*20mm(With CNC case)
Antenna gain:1.87dBi?
Features:
Open source ExpressLRS
Long range, low latency?and High re-flashed Rates
Supports up to 250mw?RF power
Telemetry data transmission supported
Cooling fan provide
CNC aluminum protective shell
Notice:
The painting defects of CNC aluminum alloy casing are acceptable.

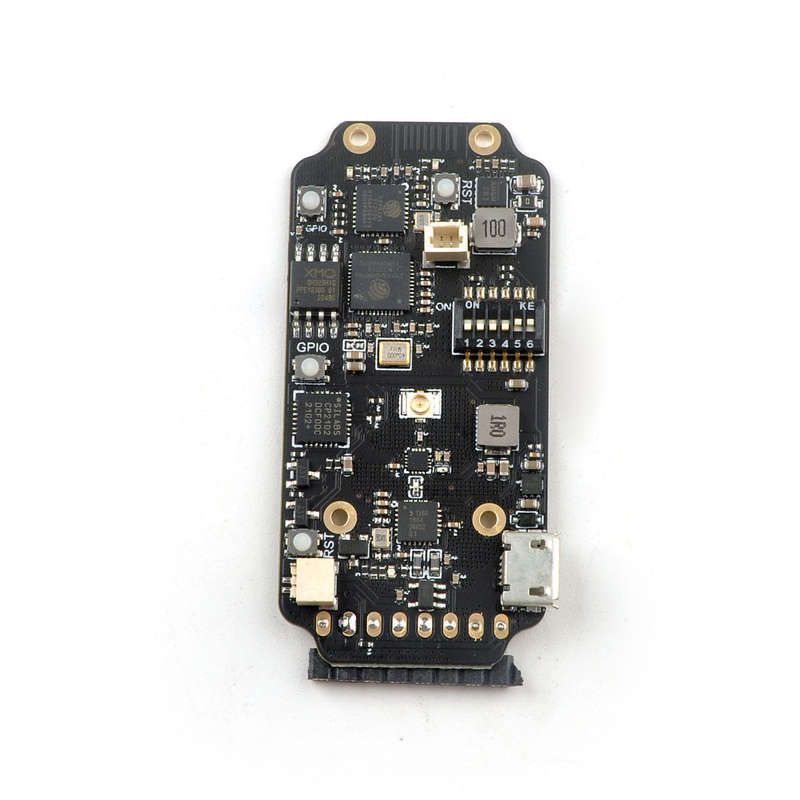

Please make sure to fix the plastic burrs of the socket interface before installing the module PCB.

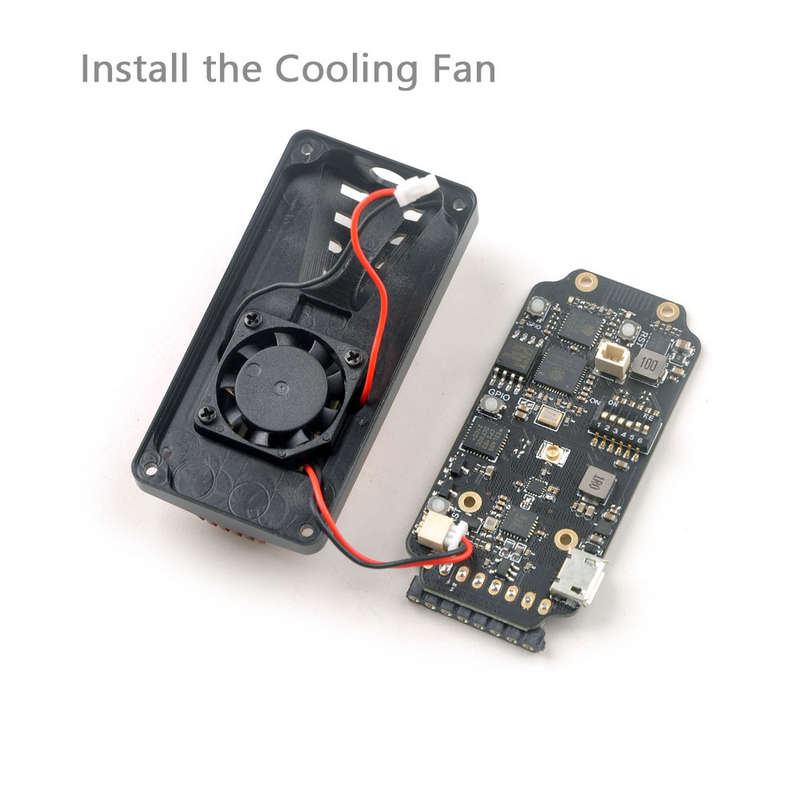

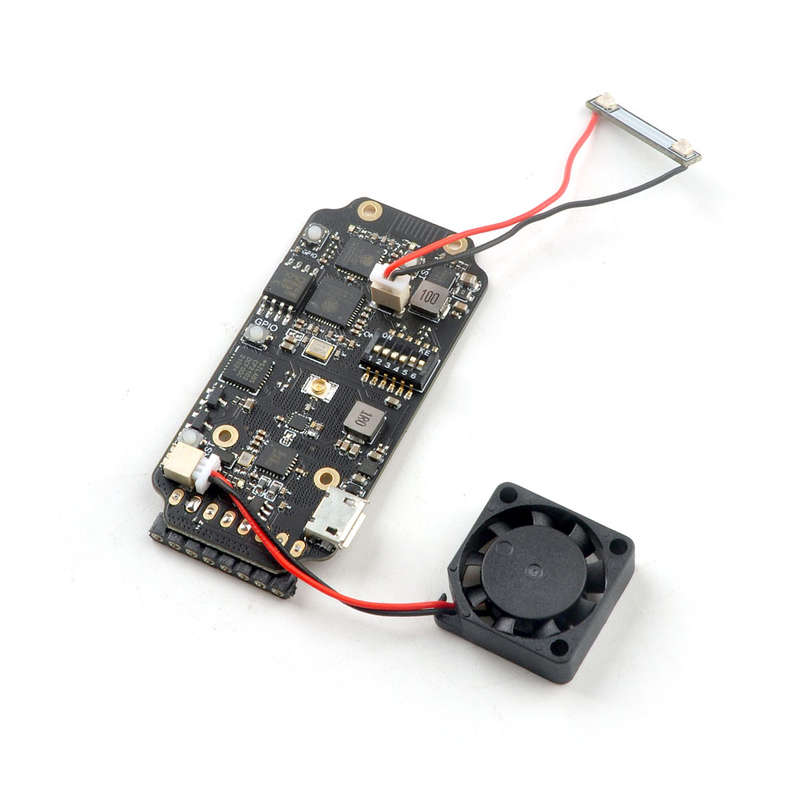

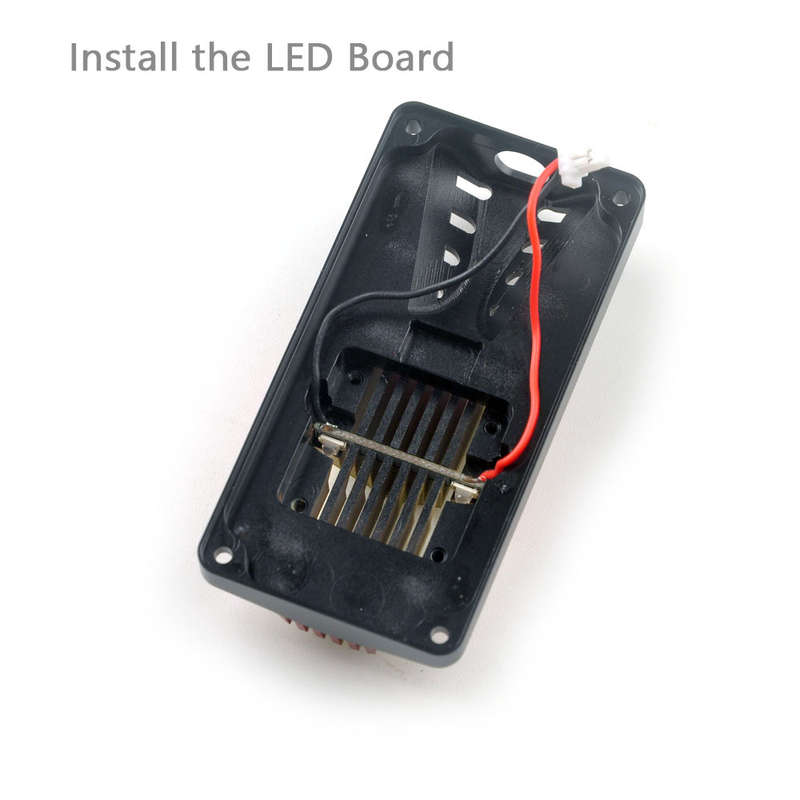

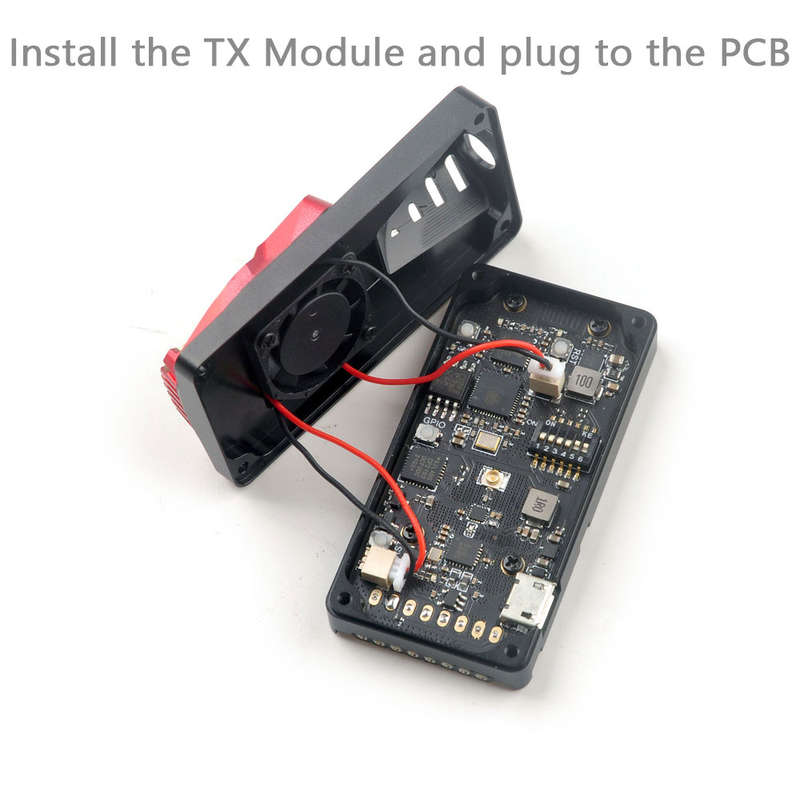

When installing the LED board, please put it in place and put the wire into the corresponding slot to avoid interference with the installation of the cooling fan.?
Since the official ExpressLRS perfect program has not been released yet, our pre-installed program is a beta version, because there are too many types of beta version programs , You can download the firmware from our website?or update by ExpressLRS configurator, and then update the firmware via connect the Wifi hot spot of the a??ExpressLRS TX Modulea??, visit 10.0.0.1 by browser (password:expresslrs)
Firmware target:
?match with EP1/EP2 RX
38866e?match with ELRSF4 2G4?

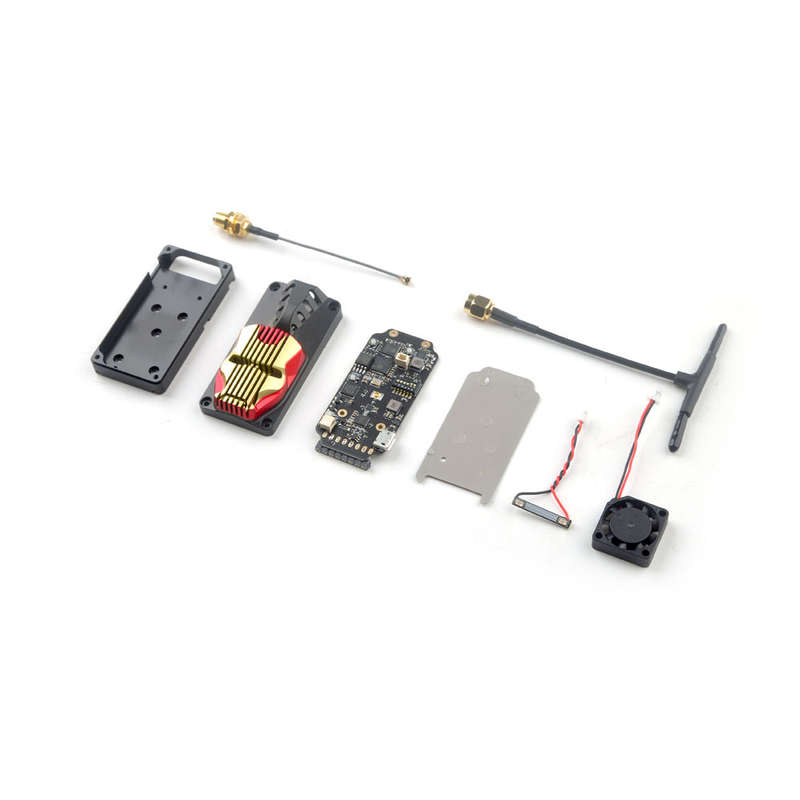

Package included:
1x ES24TX?Slim TX module?
1x 24TX80 antenna?

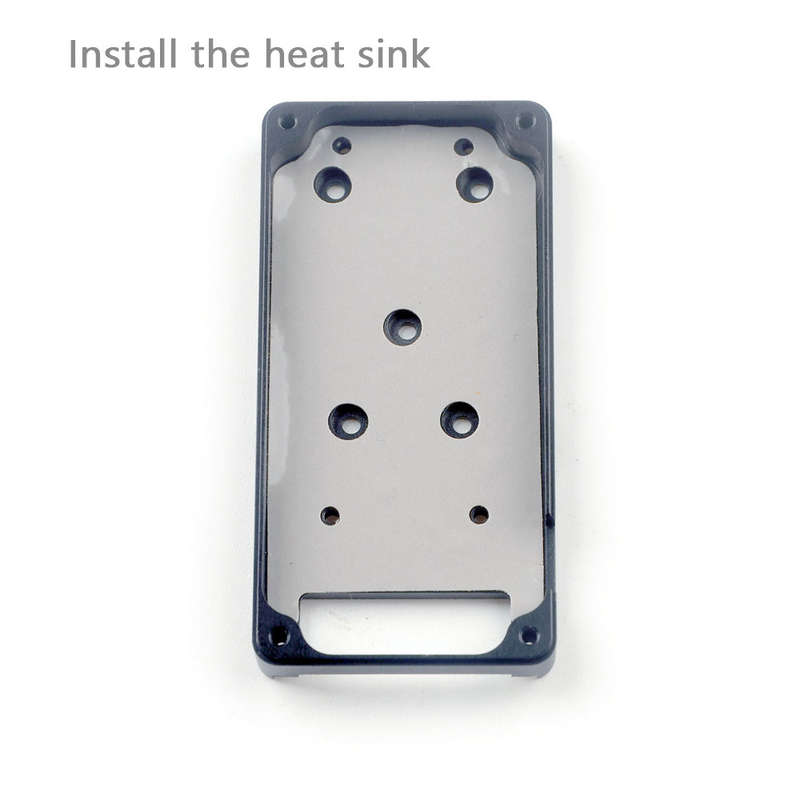

1x CNC Aluminum alloy case?
1x Cooling Fan
1x LED board
1x Antenna adapter cable
