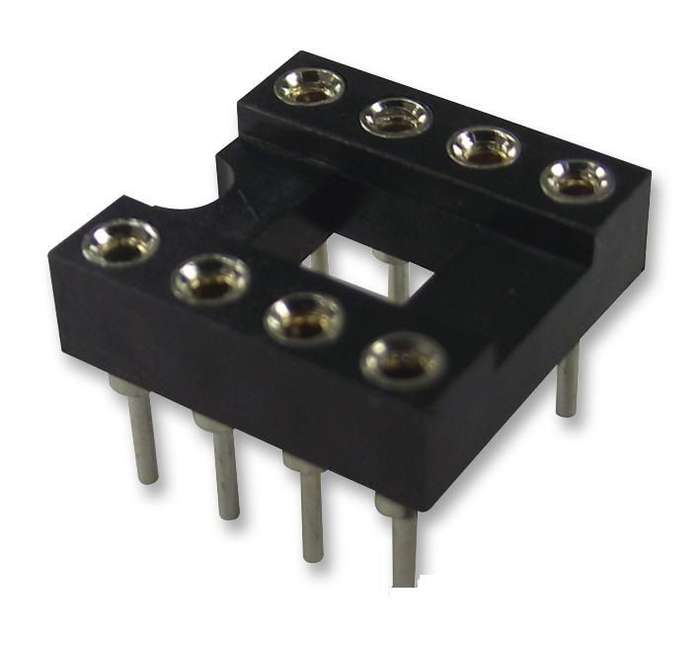

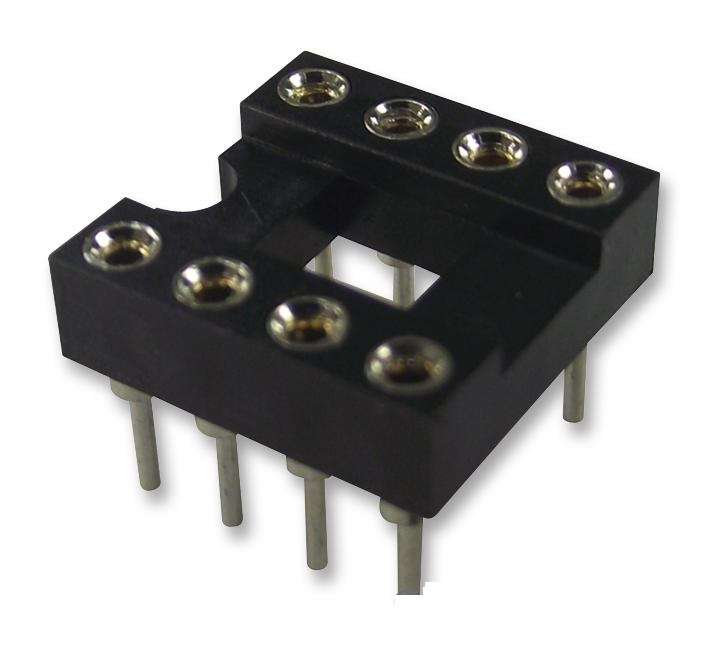

Harwin (D2608-42) IC & Component Socket, 8 Contacts, DIP Socket, 2.54 mm

IC & Component Socket, 8 Contacts, DIP Socket, 2.54 mm, D26, 7.62 mm, BerylliumCopperProduct OverviewThe D2608-42 is a 8-contact 2-row 2.54mm female IC Socket with gold platedcontacts, 100% tin over nickel plated termination, beryllium copper contactclip, brass shell and black UL94V-0 PCT housing. The D26 series connector hasvertical connector orientation, press-fit PC tail/through board connection typeand end/side stackable. Suitable for a Ø0.40 to 0.56mm mating pin.1A Current rating100VAC, 150VDC voltage rating10mR Maximum contact resistance1000MR Minimum insulation resistance1000VAC Minimum dielectric withstanding voltage100 cycles DurabilitySolderless Press-Fit PC Tail / ThroughboardApplicationsIndustrial, Consumer ElectronicsProduct InformationNo. of Contacts: 8ContactsConnector Type: DIP SocketPitch Spacing: 2.54mmProduct Range: D26Row Pitch: 7.62mmContact Material: Beryllium CopperContact Plating: Gold Plated Contacts
