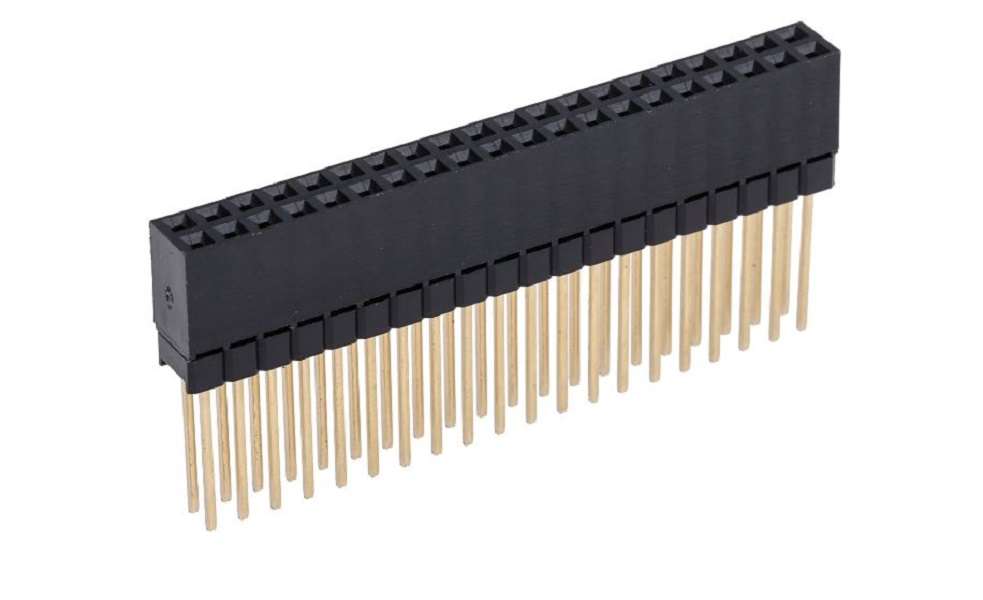

Harwin (M20-6102045) PCB Receptacle, Board-to-Board, PC/104, 2.54 mm

PCB Receptacle, Board-to-Board, PC/104, 2.54 mm, 2 Rows, 40 Contacts, ThroughHole Mount, M20 SeriesProduct OverviewThe M20-610 series from Harwin are 2.54mm pitch PC/104 connectors. Theseconnectors are compatible with PC/104 industry standard for embedded PCapplications. The M20-610 series are designed for stacking boards with a commonbus.Available in 20 and 32 contactsStack through, 12.20mm solder tailSupports 8bit and 16bit systemsUL94 V-0 black colour high temperature polyamide (Nylon) 6T mouldingGold over nickel plated phosphor bronze contactsCurrent rating is 3A maximumContact resistance is 30mohm maximumOperating temperature range -55°C to 105°CInsulation resistance of 5000Mohm minimumVoltage proof of 1000VAC for one minuteApplicationsIndustrialProduct InformationConnector Systems: Board-to-BoardPitch Spacing: 2.54mmNo. of Contacts: 40ContactsContact Termination Type: Through HoleConnector Mounting: Through Hole MountNo. of Rows: 2RowsProduct Range: M20Contact Material: Phosphor BronzeContact Plating: Gold Plated Contacts
