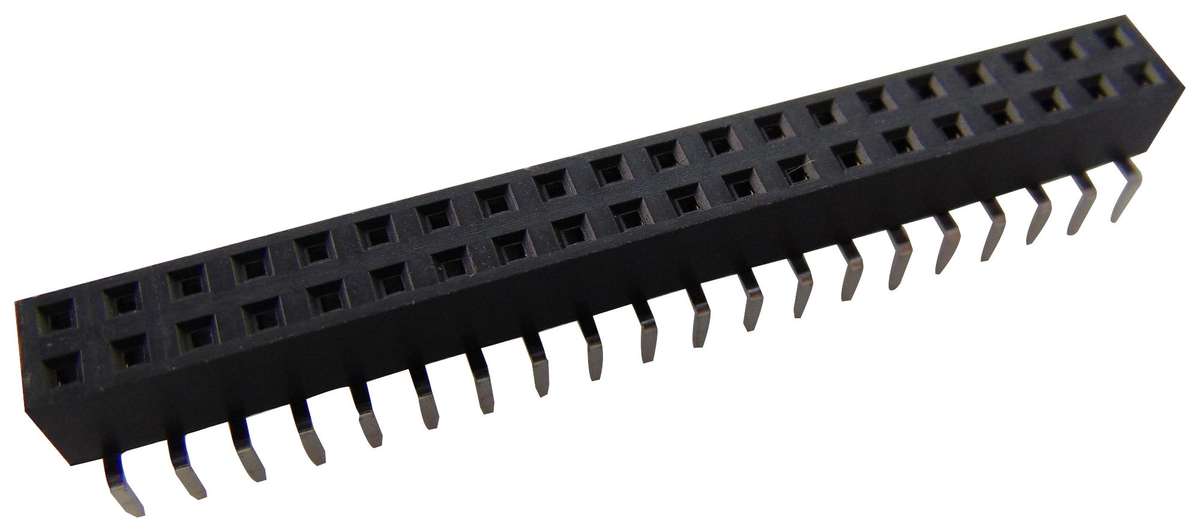

Harwin (M20-7852042) PCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows

PCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows, 40 Contacts, Through HoleMount, M20Product OverviewThe M20-7852042 is a 40-contact 2.54mm female DIL Board-to-board Socket withgold plated phosphor bronze contacts, 100% tin over nickel plated terminationand black UL94V-0 polyamide (nylon) 6T housing. The M20 series receptacle has3mm PC solder tails, vertical connector orientation, PC tail/through boardconnection type and dual entry style (bottom entry, top entry). It is suitablefor use with 0.64mm square mating pin size. Suitable for interconnecting boardto board. The socket is a box section design with a latch to locate and hold inan insulated housing.3A Current rating500VAC Voltage rating20mR Contact resistance1000MR Minimum insulation resistance2N Maximum insertion force0.3N Maximum withdrawal forceApplicationsCommercial, IndustrialProduct InformationConnector Systems: Board-to-BoardPitch Spacing: 2.54mmNo. of Contacts: 40ContactsContact Termination Type: Through HoleConnector Mounting: Through Hole MountNo. of Rows: 2RowsProduct Range: M20Contact Material: Phosphor BronzeContact Plating: Gold Plated Contacts
