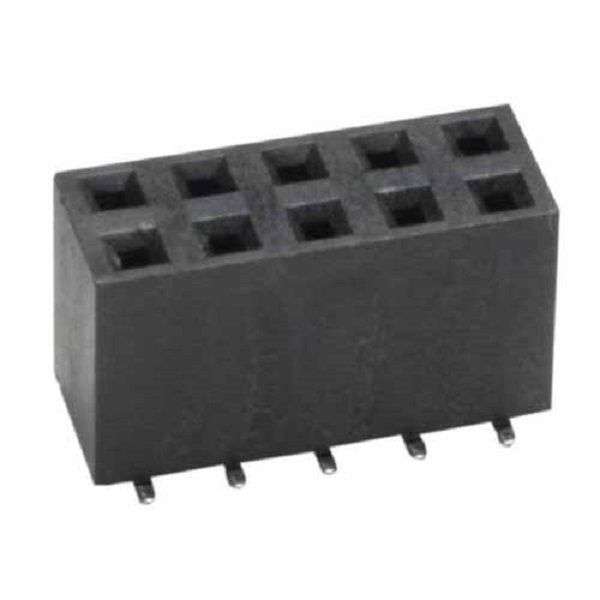

Harwin (M20-7871042) PCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows

PCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows, 20 Contacts, Surface Mount, M20Product OverviewThe M20-7871042 is a 20-contact 2.54mm female DIL Board-to-board Socket withgold plated phosphor bronze contacts, 100% tin over nickel plated terminationand black UL94V-0 polyamide (nylon) 6T housing. The M20 series receptacle hasvertical connector orientation, surface mount (SMT) connection type and dualentry style (bottom entry, top entry). It is suitable for use with 0.64mm squaremating pin size. Suitable for interconnecting board to board. The socket is abox section design with a latch to locate and hold in an insulated housing.3A Current rating20mR Maximum contact resistance1000MR Minimum insulation resistance600VAC for one minute Voltage proof2N Maximum insertion force0.3N Maximum withdrawal forceApplicationsCommercial, IndustrialProduct InformationConnector Systems: Board-to-BoardPitch Spacing: 2.54mmNo. of Contacts: 20ContactsContact Termination Type: Surface MountConnector Mounting: Surface MountNo. of Rows: 2RowsProduct Range: M20Contact Material: Phosphor BronzeContact Plating: Gold Plated Contacts
