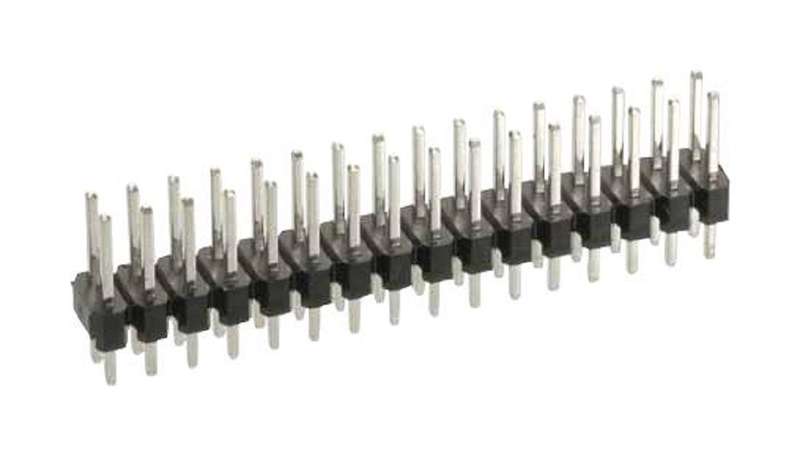

Harwin (M20-9983646) Pin Header, Board-to-Board, 2.54 mm, 2 Rows

Pin Header, Board-to-Board, 2.54 mm, 2 Rows, 72 Contacts, Through Hole, M20Product OverviewThe M20-9983646 is a 72-contact 2.54mm male DIL Board-to-board Pin Header with100% tin over nickel plated phosphor bronze contacts, 100% tin over nickelplated termination and black UL94V-0 polyamide (nylon) 6T housing. The M20series connector has 3mm PC tail, vertical connector orientation and PCtail/through board connection type. It is suitable for use with 0.64mm squaremating pin size. Suitable for interconnecting board to board.3A Maximum Current rating30mR Maximum contact resistance1000MR Minimum insulation resistance750VAC/DC Dielectric strength50 operations DurabilityApplicationsCommercial, IndustrialProduct InformationConnector Systems: Board-to-BoardPitch Spacing: 2.54mmNo. of Rows: 2RowsNo. of Contacts: 72ContactsContact Termination Type: Through HoleProduct Range: M20Connector Shroud: UnshroudedContact Material: Phosphor BronzeContact Plating: Tin Plated Contacts
