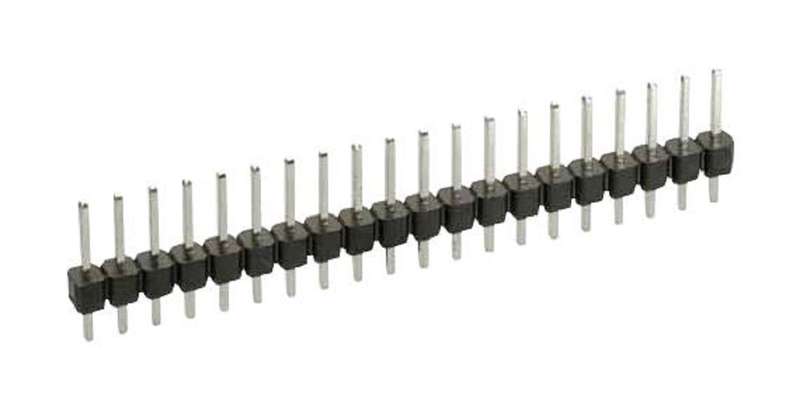

Harwin (M20-9993646) Pin Header, Board-to-Board, 2.54 mm, 1 Rows

Pin Header, Board-to-Board, 2.54 mm, 1 Rows, 36 Contacts, Through Hole, M20Product OverviewThe M20-999 series from Harwin are 2.54mm pitch, single row SIL vertical PC tailpin headers.6.1mm mating heightNumber of contacts varies from 2 to 40 per rowAvailable in gold and tin finishContact material is brassUL94 V-0 black colour high temperature polyamide (Nylon) 6T mouldingCurrent rating is 3A maximumContact resistance is 25mohm maximum (gold) and 30mohm maximum (tin)Operating temperature range -40°C to 105°CDurability of 300 operations (gold) and 50 operation (tin)Dielectric strength of 750VAC/DCApplicationsIndustrialProduct InformationConnector Systems: Board-to-BoardPitch Spacing: 2.54mmNo. of Rows: 1RowsNo. of Contacts: 36ContactsContact Termination Type: Through HoleProduct Range: M20Connector Shroud: UnshroudedContact Material: Phosphor BronzeContact Plating: Tin Plated Contacts
