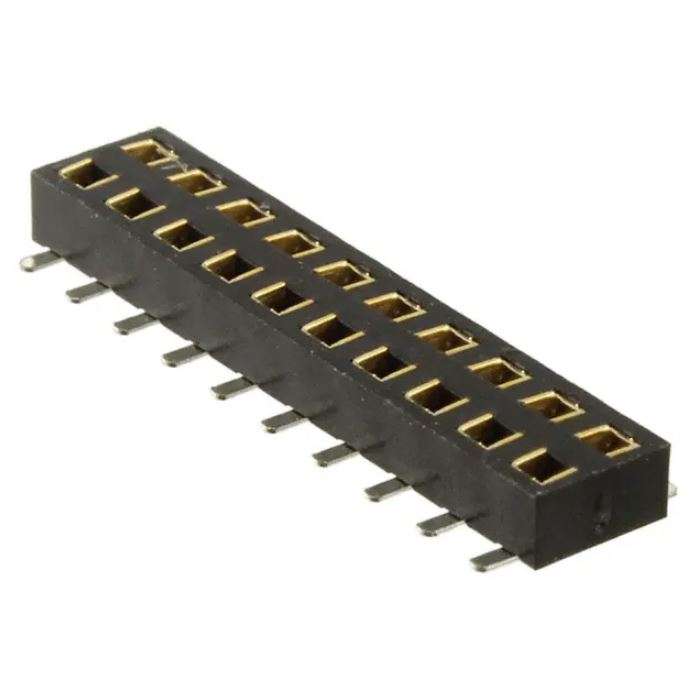

Harwin (M22-6360442) PCB Receptacle, Board-to-Board, 2 mm, 2 Rows

Harwin (M22-6360442) PCB Receptacle, Board-to-Board, 2 mm, 2 Rows

New 441 available
R229.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1189099
Bob Shop ID
674511188
PCB Receptacle, Board-to-Board, 2 mm, 2 Rows, 8 Contacts, Surface Mount, M22Product OverviewThe M22-6360442 is a 8-contact 2mm female DIL Board-to-board Socket with goldplated phosphor bronze contacts, 100% tin over nickel plated termination andblack UL94V-0 polyamide (nylon) 6T housing. The M22 series connector hasvertical connector orientation, surface mount (SMT) connection type and dualentry (bottom entry, top entry). It is suitable for use with 0.5mm square matingpin size. Twin beam contact for cost-effective reliability.2A Current rating20mR Maximum contact resistance1000MR Minimum insulation resistance500VAC Minimum dielectric strengthApplicationsCommercial, IndustrialProduct InformationConnector Systems: Board-to-BoardPitch Spacing: 2mmNo. of Contacts: 8ContactsContact Termination Type: Surface MountConnector Mounting: Surface MountNo. of Rows: 2RowsProduct Range: M22Contact Material: Phosphor BronzeContact Plating: Gold Plated Contacts
