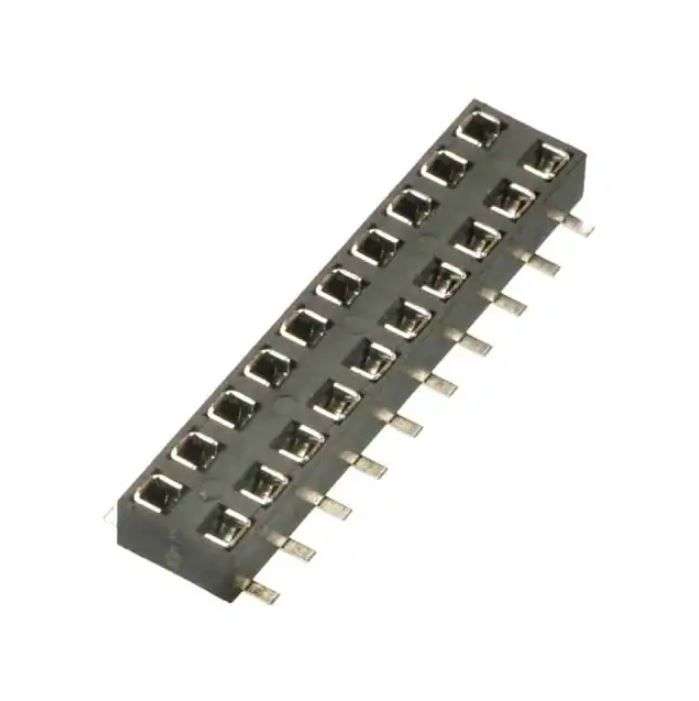

Harwin (M22-6360542) PCB Receptacle, Board-to-Board, 2 mm, 2 Rows

PCB Receptacle, Board-to-Board, 2 mm, 2 Rows, 10 Contacts, Surface Mount, M22Product OverviewThe M22-6360542 is a 10-contact 2mm female DIL Board-to-board Socket with goldplated phosphor bronze contacts, 100% tin over nickel plated termination andblack UL94V-0 polyamide (nylon) 6T housing. The M22 series connector hasvertical connector orientation, surface mount (SMT) connection type and dualentry (bottom entry, top entry). It is suitable for use with 0.5mm square matingpin size. Twin beam contact for cost-effective reliability.2A Current rating20mR Maximum contact resistance1000MR Minimum insulation resistance500VAC Minimum dielectric strengthApplicationsCommercial, IndustrialProduct InformationConnector Systems: Board-to-BoardPitch Spacing: 2mmNo. of Contacts: 10ContactsContact Termination Type: Surface MountConnector Mounting: Surface MountNo. of Rows: 2RowsProduct Range: M22Contact Material: Phosphor BronzeContact Plating: Gold Plated Contacts
