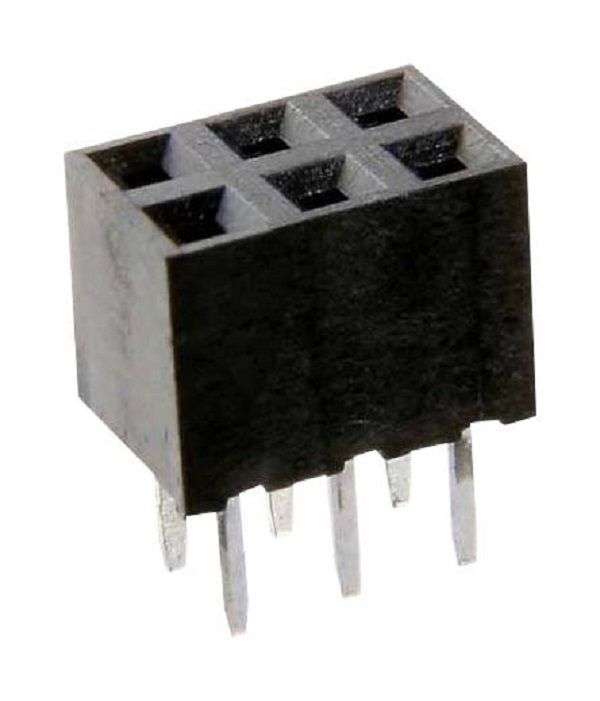

Harwin (M22-7140342) PCB Receptacle, Board-to-Board, 2 mm, 2 Rows

PCB Receptacle, Board-to-Board, 2 mm, 2 Rows, 6 Contacts, Through Hole Mount,M22Product OverviewThe M22-7140342 is a 6-contact 2mm female DIL Board-to-board Socket with goldplated phosphor bronze contacts, 100% tin over nickel plated termination andblack UL94V-0 LCP housing. The M22 series receptacle has solder tails, verticalconnector orientation, PC tail/through board connection type and top entrystyle. It is suitable for use with 0.5mm square mating pin size. Suitable forinterconnecting board to board.2A AC/DC Current rating20mR Maximum contact resistance5000MR Minimum insulation resistance500V AC for one minute Dielectric withstandApplicationsCommercial, IndustrialProduct InformationConnector Systems: Board-to-BoardPitch Spacing: 2mmNo. of Rows: 2RowsNo. of Contacts: 6ContactsContact Termination Type: Through Hole StraightConnector Mounting: Through Hole MountProduct Range: M22Contact Material: Phosphor BronzeContact Plating: Gold Plated Contacts
