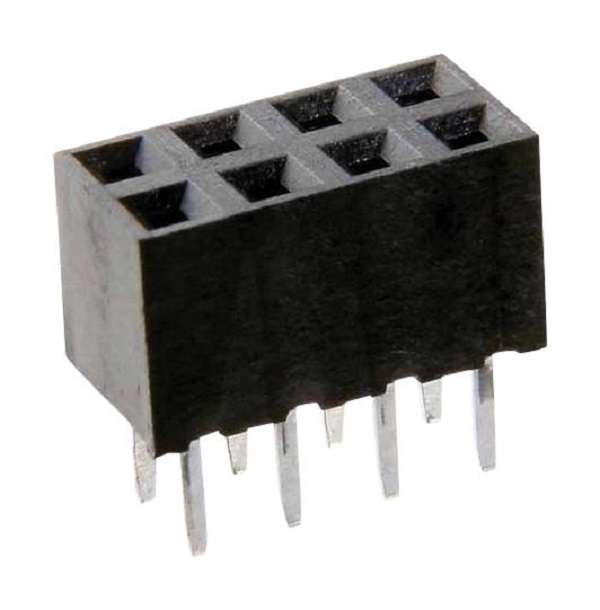

Harwin (M22-7140442) PCB Receptacle, Board-to-Board, 2 mm, 2 Rows

Harwin (M22-7140442) PCB Receptacle, Board-to-Board, 2 mm, 2 Rows

New 6306 available
R185.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1109735
Bob Shop ID
680901722
PCB Receptacle, Board-to-Board, 2 mm, 2 Rows, 8 Contacts, Through Hole Mount,M22Product OverviewThe M22-7140442 is a 8-contact 2mm female DIL Board-to-board Socket with goldplated phosphor bronze contacts, 100% tin over nickel plated termination andblack UL94V-0 LCP housing. The M22 series receptacle has solder tails, verticalconnector orientation, PC tail/through board connection type and top entrystyle. It is suitable for use with 0.5mm square mating pin size. Suitable forinterconnecting board to board.2A AC/DC Current rating20mR Maximum contact resistance5000MR Minimum insulation resistance500V AC for one minute Dielectric withstandApplicationsCommercial, IndustrialProduct InformationConnector Systems: Board-to-BoardPitch Spacing: 2mmNo. of Rows: 2RowsNo. of Contacts: 8ContactsContact Termination Type: Through Hole StraightConnector Mounting: Through Hole MountProduct Range: M22Contact Material: Phosphor BronzeContact Plating: Gold Plated Contacts
