Harwin (M50-3302042) IDC Connector, IDC Receptacle, Female, 1.27 mm

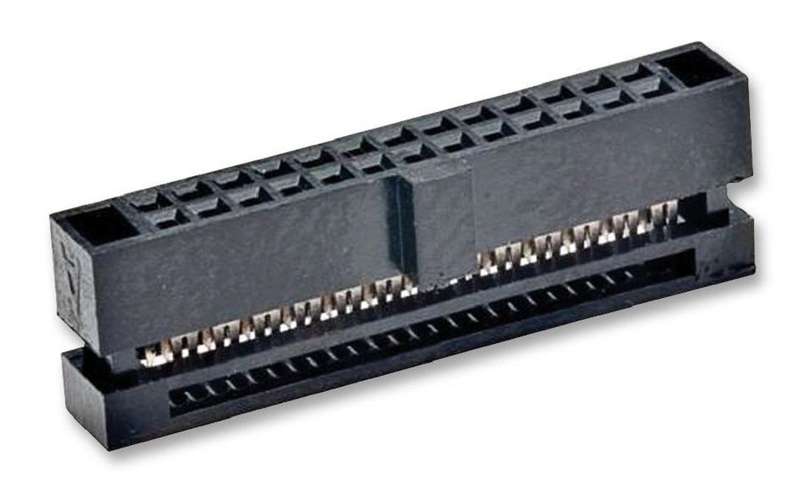

IDC Connector, IDC Receptacle, Female, 1.27 mm, 2 Row, 40 Contacts, Cable MountProduct OverviewThe M50-3302042 is a 40-contact 2-row 1.27mm female Wire-to-board IDC Receptaclewith gold plated phosphor bronze contacts, 100% tin over nickel platedtermination and black UL94V-0 PBT housing. The M50 series connector has angledconnector orientation and cable connector connection type. It is suitable foruse with 0.4mm square mating pin size and 0.635mm pitch ribbon cable.1A Current rating20mR Maximum contact resistance1000MR Minimum insulation resistance1000VACrms for one minute Withstanding voltageApplicationsCommercial, IndustrialProduct InformationPitch Spacing: 1.27mmIDC Connector Type: IDC ReceptacleContact Gender: FemaleNo. of Contacts: 40ContactsNo. of Rows: 2 RowConnector Mounting: Cable MountContact Material: Phosphor BronzeContact Plating: Gold Plated ContactsProduct Range: M50 Series
