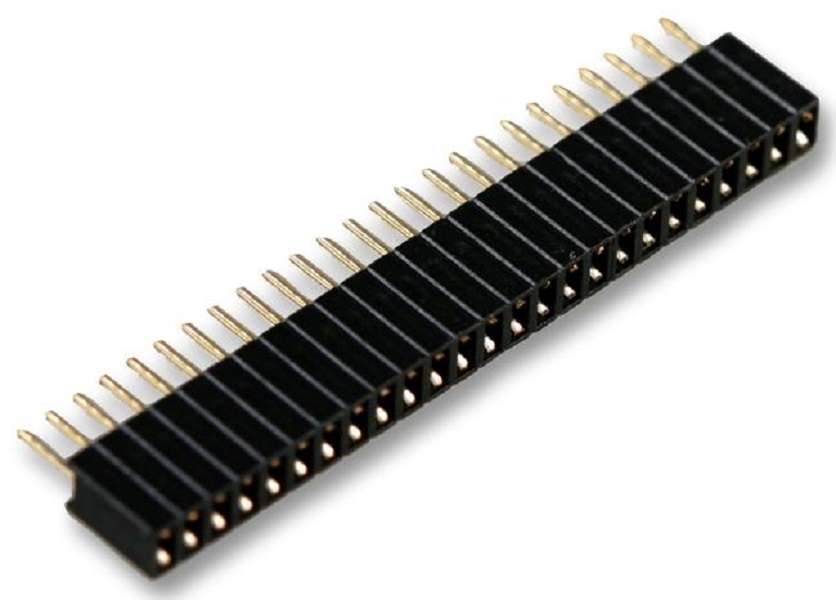

Harwin (M52-5002045) PCB Receptacle, Board-to-Board, 1.27 mm, 1 Rows

PCB Receptacle, Board-to-Board, 1.27 mm, 1 Rows, 20 Contacts, Through HoleMount, Archer M52Product OverviewThe M52-5002045 is a 20-contact 1.27 x 2.5mm female SIL Board-to-board Socketwith gold plated brass contacts, gold plated termination and black UL94V-0polyamide (nylon) 6T housing. The M52 series connector has 3mm PC Tail, 4.6mmconnector height, vertical connector orientation and PC tail/through boardconnection type. It is suitable for use with 0.46mm square mating pin size.1A Current rating30mR Maximum contact resistance1000MR Minimum insulation resistance500VAC for one minute Dielectric withstanding voltage300 cycles DurabilityApplicationsCommercial, IndustrialProduct InformationConnector Systems: Board-to-BoardPitch Spacing: 1.27mmNo. of Rows: 1RowsNo. of Contacts: 20ContactsContact Termination Type: Through Hole StraightConnector Mounting: Through Hole MountProduct Range: Archer M52Contact Material: CopperContact Plating: Gold Plated Contacts
