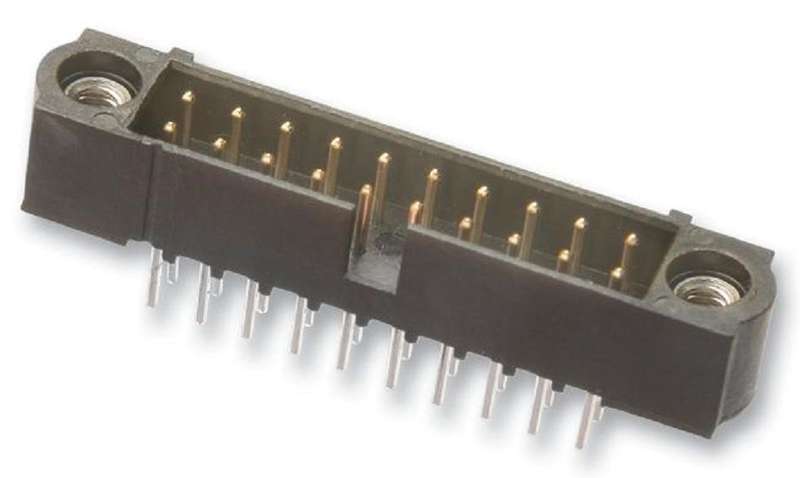

Harwin (M80-5001042) Pin Header, Dual in Line, Wire-to-Board, 2 mm, 2 Rows

Pin Header, Dual in Line, Wire-to-Board, 2 mm, 2 Rows, 10 Contacts, Through HoleStraightProduct OverviewThe M80-5001042 is a 10-contact male Datamate J-Tek DIL PCB Plug with blackUL94V-0 PPS housing, gold plated phosphor bronze contacts and 100% tin overnickel plated termination. The M80 series connector has jackscrews (withoutboard mount), 3mm PC tail, vertical connector orientation, PC tail/through boardconnection type and M2 thread size. The connector is intended for use as a lowvoltage connector in high packing density electronic equipment. The connector ispolarised to prevent mismatching and can be produced with a latching featurejackscrew (J-Tek) format.3A (at 25°C), 2.2A (at 85°C) Current rating800VAC/DC Working voltage25mR Maximum contact resistance100MR Minimum insulation resistance500 operations DurabilityApplicationsIndustrialProduct InformationConnector Systems: Wire-to-BoardPitch Spacing: 2mmNo. of Rows: 2RowsNo. of Contacts: 10ContactsContact Termination Type: Through Hole StraightProduct Range: Datamate J-Tek M80-5Connector Shroud: ShroudedContact Material: Phosphor BronzeContact Plating: Gold Plated Contacts
