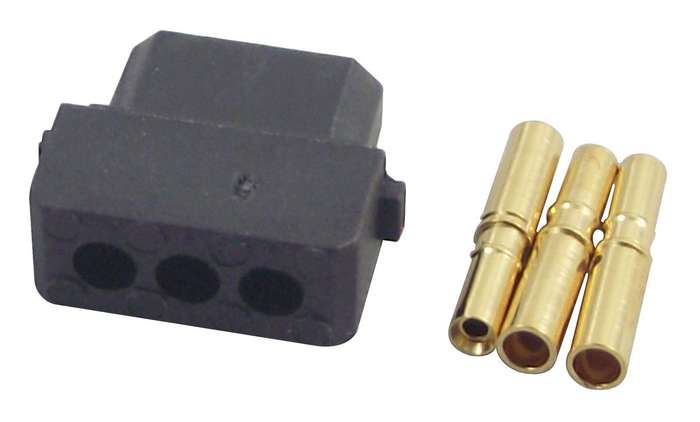

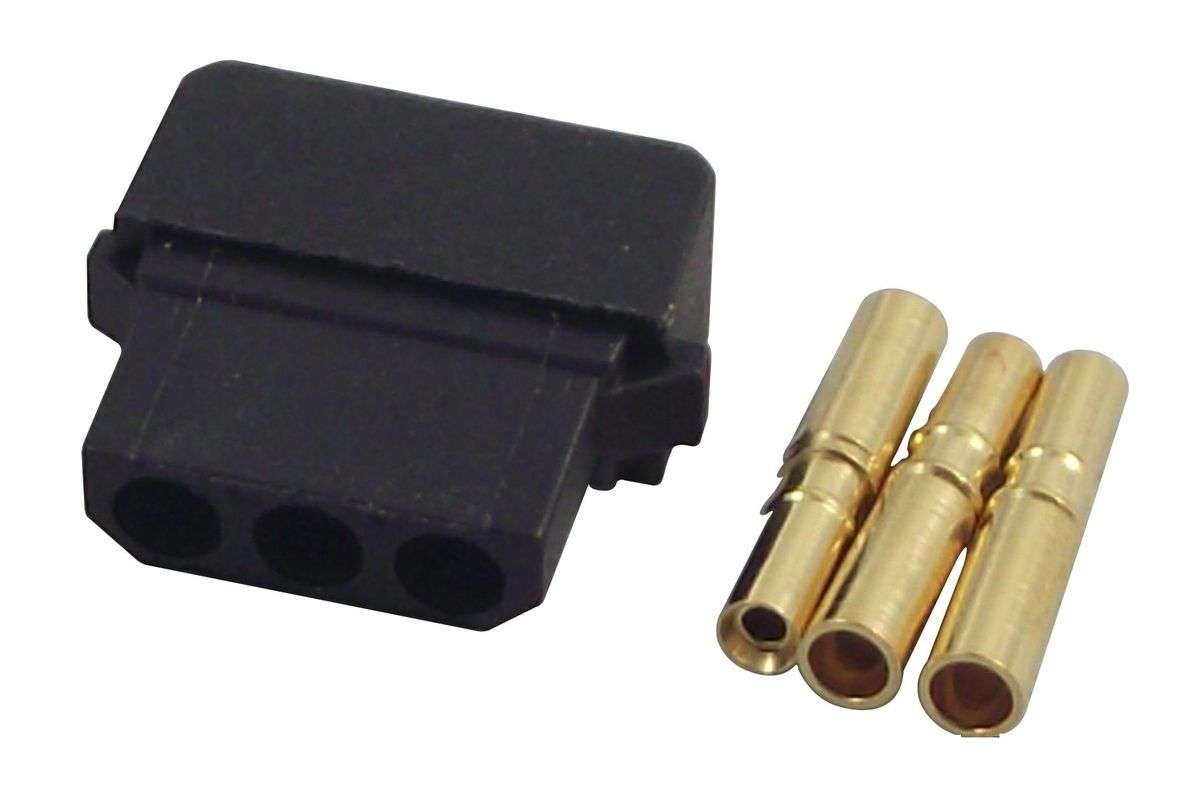

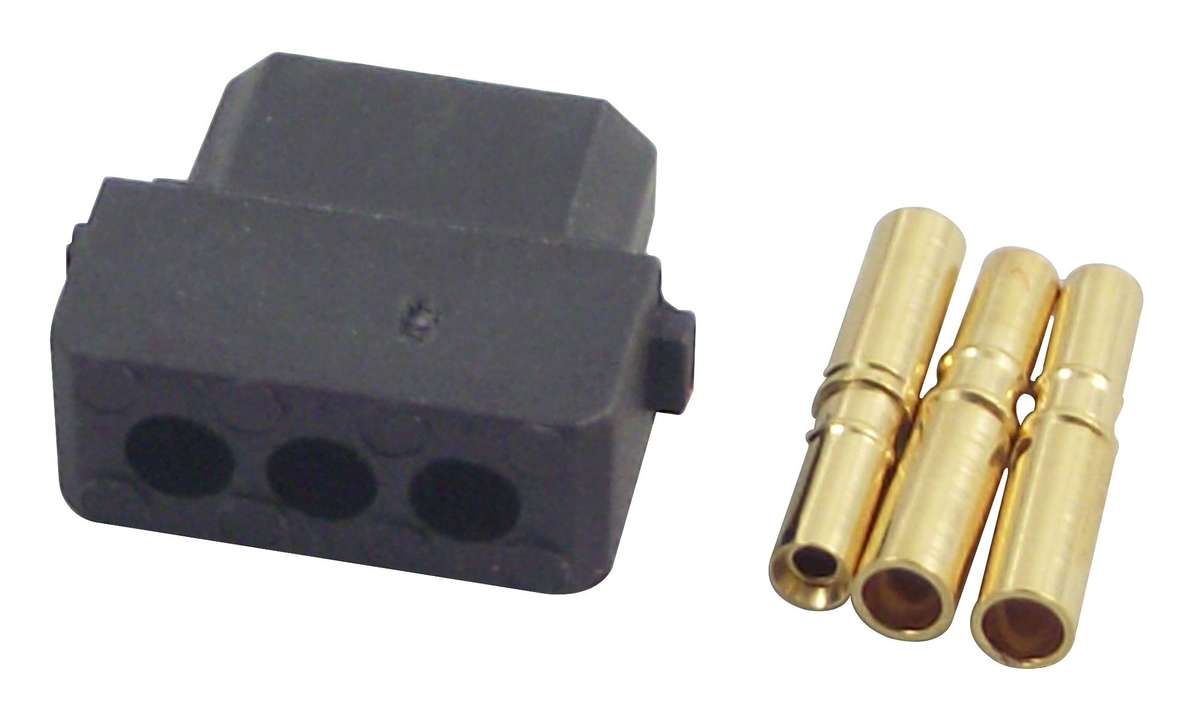

Harwin (M80-8980305) Rectangular Connector, 3 Contacts, Receptacle

Rectangular Connector, Datamate L-Tek M80, 3 Contacts, Receptacle, 2 mm, Crimp,1 RowProduct OverviewThe M80-8980305 is a 3-contact 2mm female Datamate L-Tek SIL Cable Connector Kitwith housing and contacts. Large bore is suitable for 24 to 28AWG cable (Ø1.1mmmax insulation), M80-0130005 spare contacts. Housing is made of black UL94V-0PBT with gold plated beryllium copper contact clip/brass shell contact base andgold plated termination. The M80 series socket has straight connectororientation and cable (crimp) connection type. It is suitable for Ø0.5mm matingpin size. The connector is intended for use as a low voltage connector in highpacking density electronic equipment.3A (at 25°C), 2.2A (at 85°C) Current rating20mR (initial), 25mR (after conditioning) Maximum contact resistance1000MR (initial), 100MR (after conditioning) Minimum insulation resistance500 operations DurabilityApplicationsIndustrialProduct InformationPitch Spacing: 2mmProduct Range: Datamate L-Tek M80No. of Contacts: 3ContactsGender: Receptacle (View Associated Connectors)Contact Termination Type: CrimpNo. of Rows: 1 RowNo. of Rows: 1RowsConnector Mounting: Panel MountContact Plating: Gold Plated ContactsContact Material: Beryllium Copper
