hatz e673ls engine - known for its robust, long-lasting design

• The E673LS is known for its robust, long-lasting design

  It's well-suited for various mobile and stationary applications requiring a compact and powerful diesel engine.

• Why choose a Hatz E673LS?

  • Compact & Lightweight: Its design makes it easy to integrate into many machines.




Seller notes:

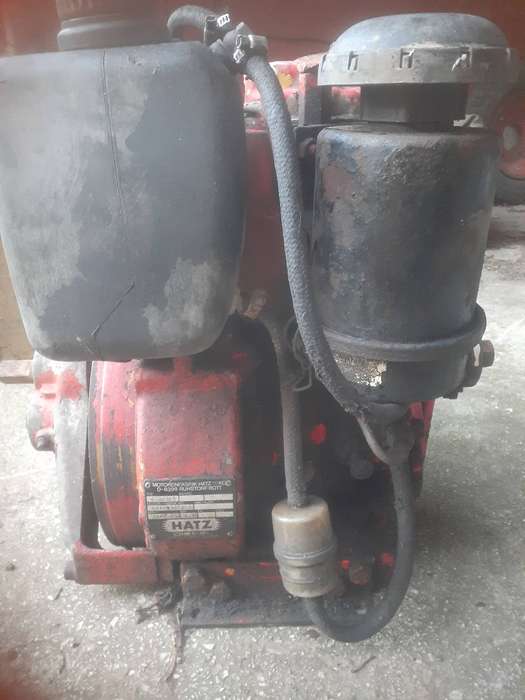

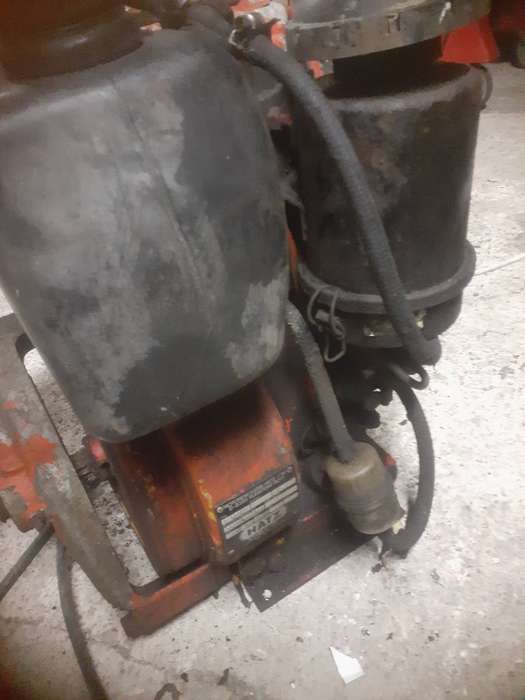

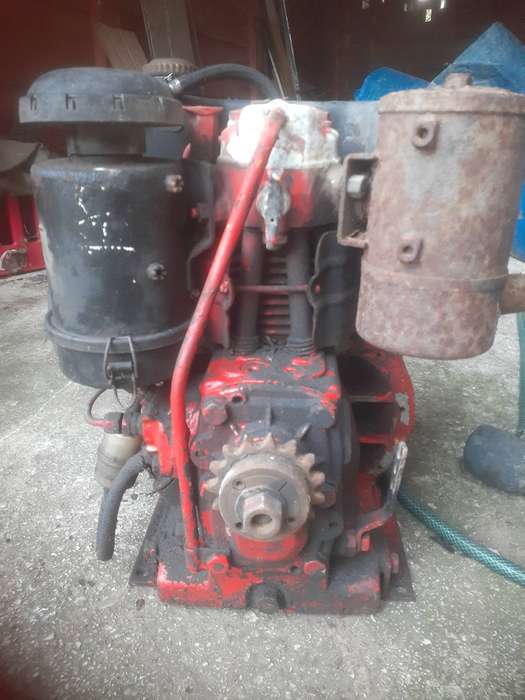

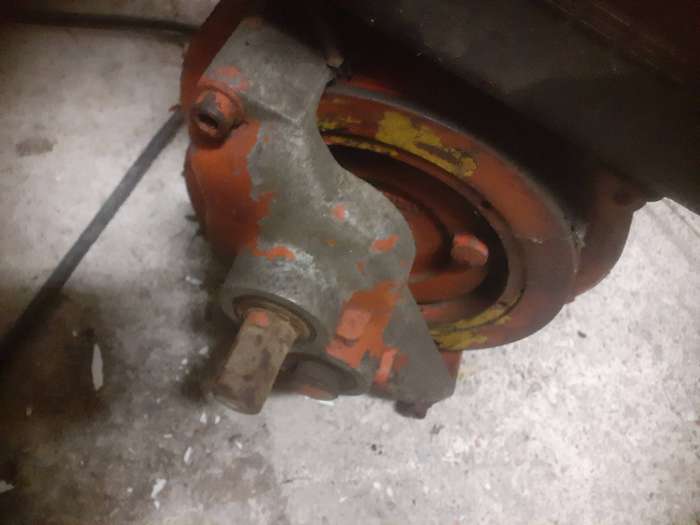

Solid engine, Been in storage. Compression good. Excludes crank handle. Recommend basic oil and filter service.  Condition as show in pictures, without cleaning thereby leaving its protective layers.

Collect in Port Elizabeth option.

Specifications:

The HATZ E673LS is a single-cylinder, 4-stroke, air-cooled diesel engine with a power output of 7.5 kW (10.2 HP) at 3000 rpm, a bore of 85mm, a stroke of 80mm, and a displacement of 450cc. Key features include a compact design, robust construction with a light alloy crankcase and cylinder head, pressurized lubrication, and a robust, long-lasting design suitable for demanding applications like heavy-duty mobile and stationary equipment.

Engine Specifications

• Engine Type: Single-cylinder, 4-stroke, air-cooled diesel

• Engine Series: E-Series

• Power Output: 7.5 kW (10.2 HP) at 3000 rpm

• Bore: 85 mm (3.35 in)

• Stroke: 80 mm (3.15 in)

• Displacement: 450 cm³ (450 cc)

• Cylinders: 1

• Cooling: Air-cooled

Construction & Features

• Crankcase: Die-cast light alloy

• Cylinder Head: Light alloy

• Crankshaft: Forged

• Lubrication: Pressurized lubrication with a fine filter

• Valve Train: Rocker arms, push rods, finger followers, and a camshaft
