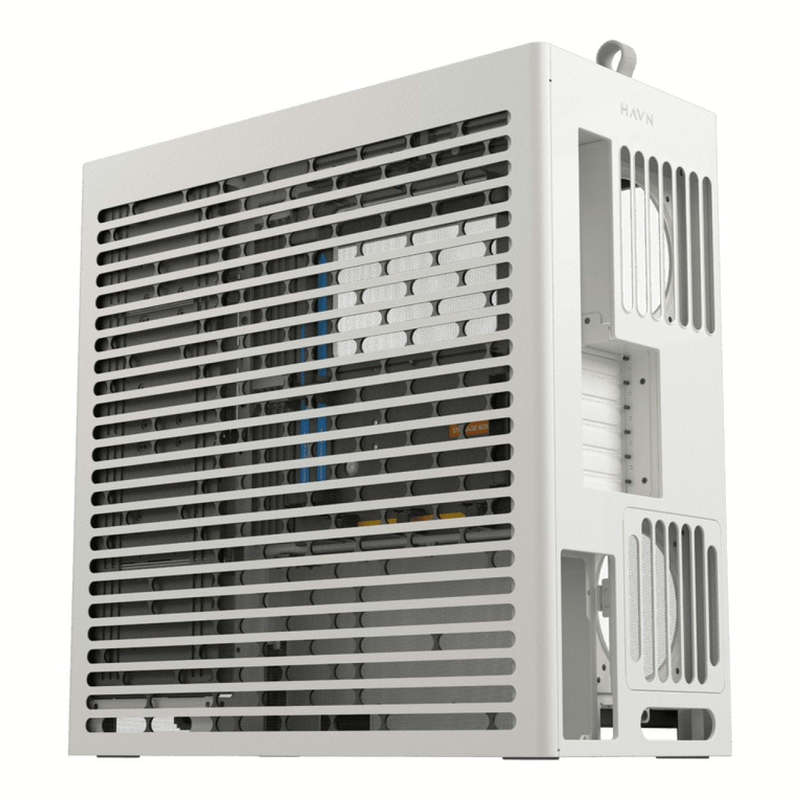

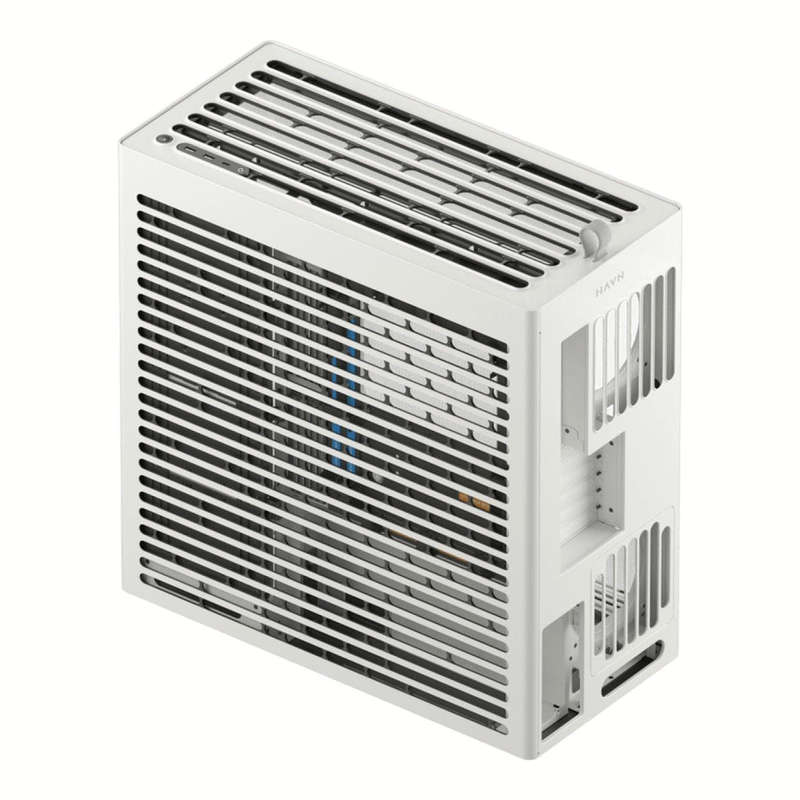

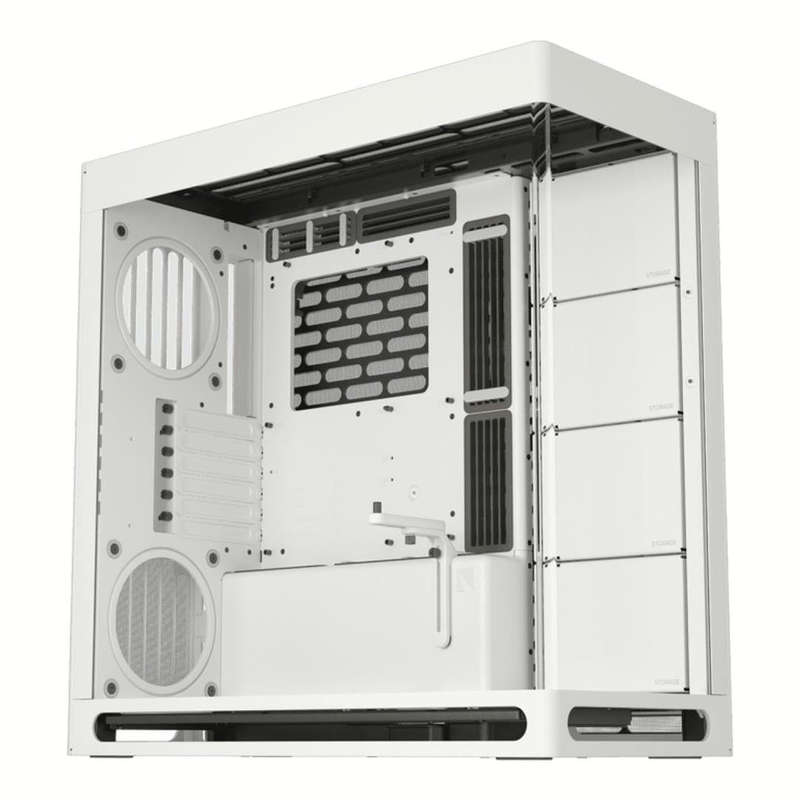

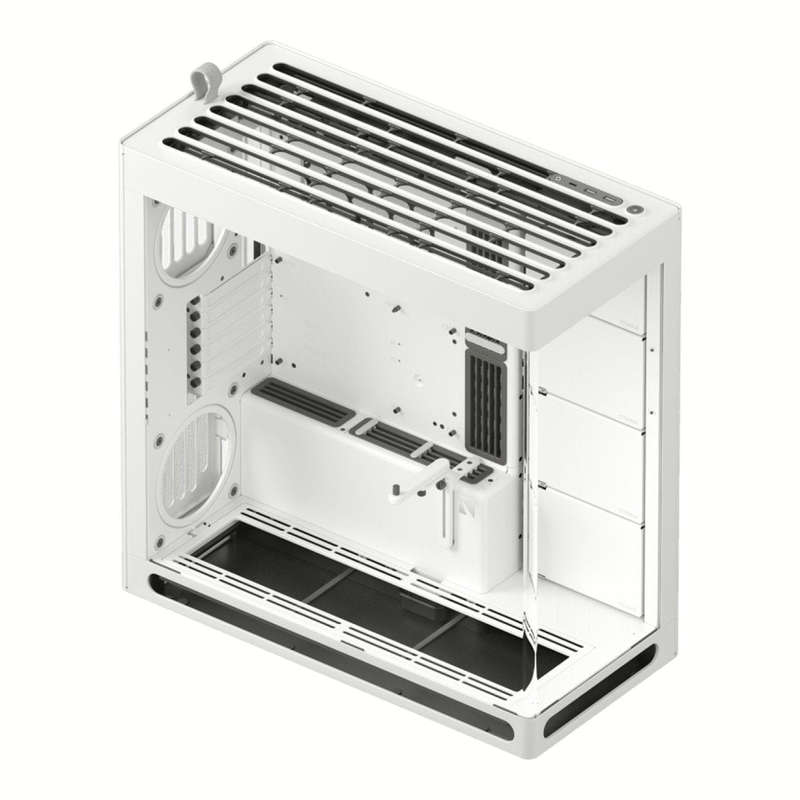

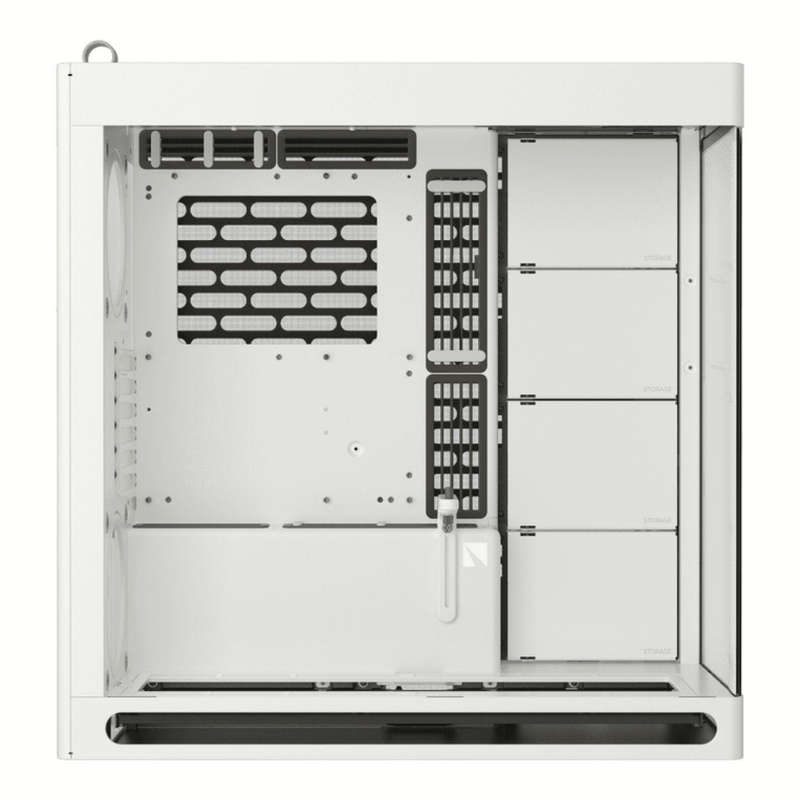

HAVN HS 420 Base Edition E-ATX Mid-Tower PC Case with Adjustable GPU Bracket White HVN-CA-HS420-07
The HS 420 is a work of functional beauty and user-centric innovation. Through dozens of prototypes and redesigns, and literally thousands of hours of rigorous testing by HAVN and Pro Gamers Group engineers, we have tailor-made this Hybrid Structure case to deliver unrivaled central GPU airflow within a dual chamber design while maintaining traditional mid-tower dimensions. Built for the most powerful fans and radiators on the market, it provides the thermal optimization you need for the most demanding tasks.
- UniSheet heat-formed panoramic glass panel for front and side, engineered to be flatter and with a smaller radius to minimize visual distortion.
- Optimized thermal performance design with custom panel ventilation, ideal for 140mm fans (11 fan positions in total), and up to 420mm radiators on the top, side, and bottom.
- Intuitive SimpliCable routing system & fan hub organizes your cables cleanly and discreetly.â
Features
- HAVN Hybrid Structure for Optimal GPU Cooling
- GPU Centric Design
- Mirrored Airflow
- Cooling Power & Compatibility

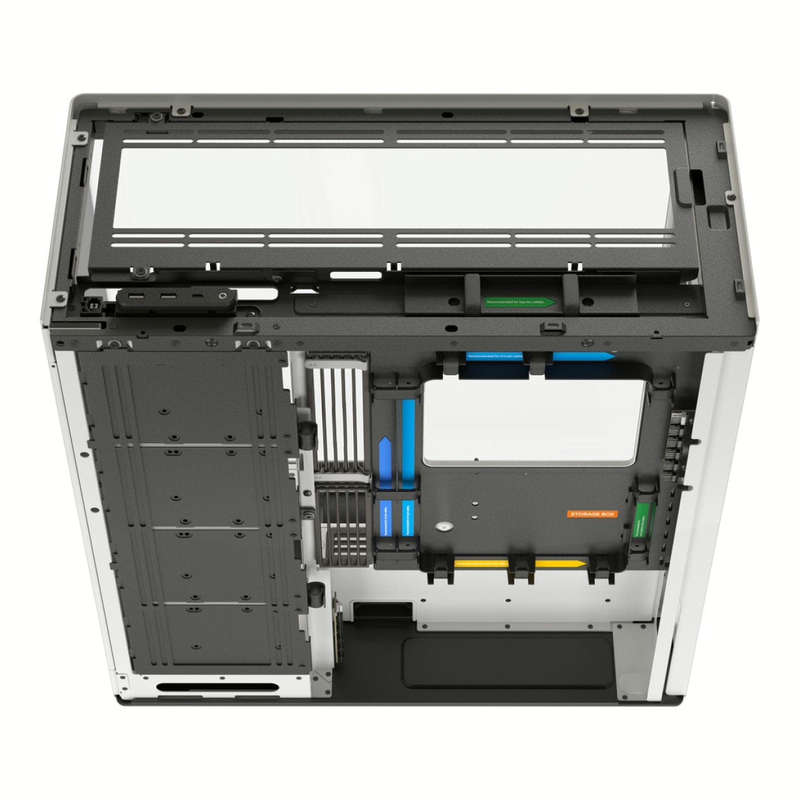

- Cable Management Re-Invented
- Vibration Isolation

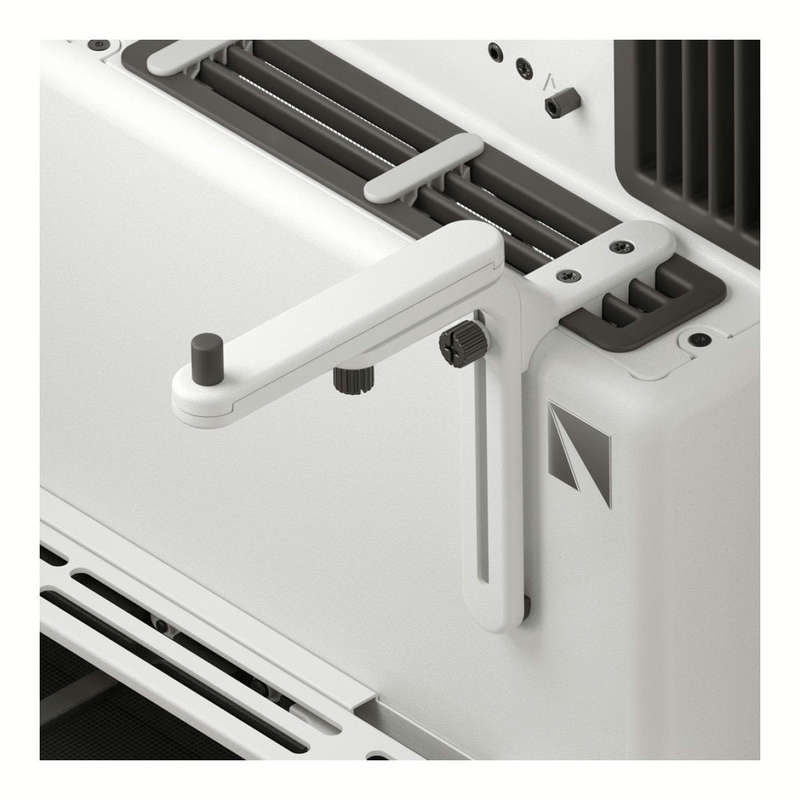

- 3-Way Adjustable Structural GPU Support Bracket included
Technical Specification
Model: HVN-CA-HS420-07
Form Factor: Mid Tower
Product Colour: White
Material: SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets
PC Case Dimensions (L x W x H): 541 x 259.5 x 547 mm
Front I/O
- USB 3.2 Gen 2 Type-C x1
- USB 3.2 Gen 1 Type-A x2
- Audio Jack x1
- Power & Reset Button x1
Motherboard Support: E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX
Expansion Slots: 6
Fan Support
- Maximum Amount: 11
- Top: 3 x 120 / 3 x 140 mm
- Right: 3 x 120 / 3 x 140 mm
- Bottom: 3 x 120 / 3 x 140 mm
- Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm)
Fan PWM Repeater
- Channel: Total 12 ch
- Location: Cable Management Tray x1
- PSU shroud x1
CPU Tower Cooler Clearance
- Height: Up to 185 mm. Tower cooler size depends on GPU width. CPU center to graphics card PCIe edge connector; ~199mm (varies by motherboard). Liquid cooling recommended.
Liquid Cooling Support
- Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM)
- Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO)
- Bottom: 280 / 360 / 420 mm (Thickness: 120 mm)
Graphics Card Clearance
- Length: Up to 480 mm
- Width: Up to 195 mm. GPU width support depends on CPU cooler size. CPU center to graphics card PCIe edge connector: ~199mm (varies by motherboard). Liquid cooling recommended.
GPU Support: 2 - 5 Slots
GPU Support Bracket: Included
RAM Clearance
- If the fan and radiator thickness is greater than 65 mm: 420 mm - 32 mm / 360 mm - 43 mm
Storage
- Right Fan Mount: 4 Storage Bays: 4 x 3.5'' / 8 x 2.5''
- Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5''
- Storage Bay Included: 4x
Dust Filter
- Bottom: 1 (Removable)
- Top: 1 (Built-in)
- Right: 1 (Built-in)
- Rear Bottom: 1 (Removable)
Power Supply Support: ATX, Length: Up to 220mm (Clearance - 290mm)
