HAWEEL 60W Foldable Solar Panel Charger Travel Folding Bag(Black)

Features

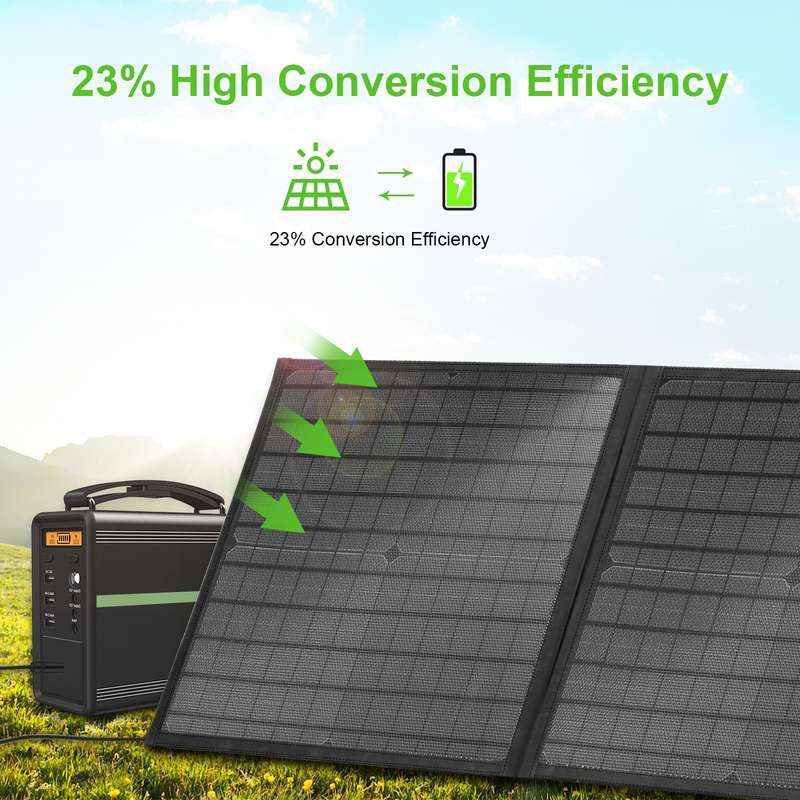

1. Solar power panels use monocrystalline solar cells, which are much more efficient than ordinary solar cells.
2. Foldable design for more convenient carrying.
3. Equipped with voltage regulator, the voltage output is more stable and the charging is more secure.
4. Comfortable fabric, not afraid of the sun, not afraid of rain, charging without worry.

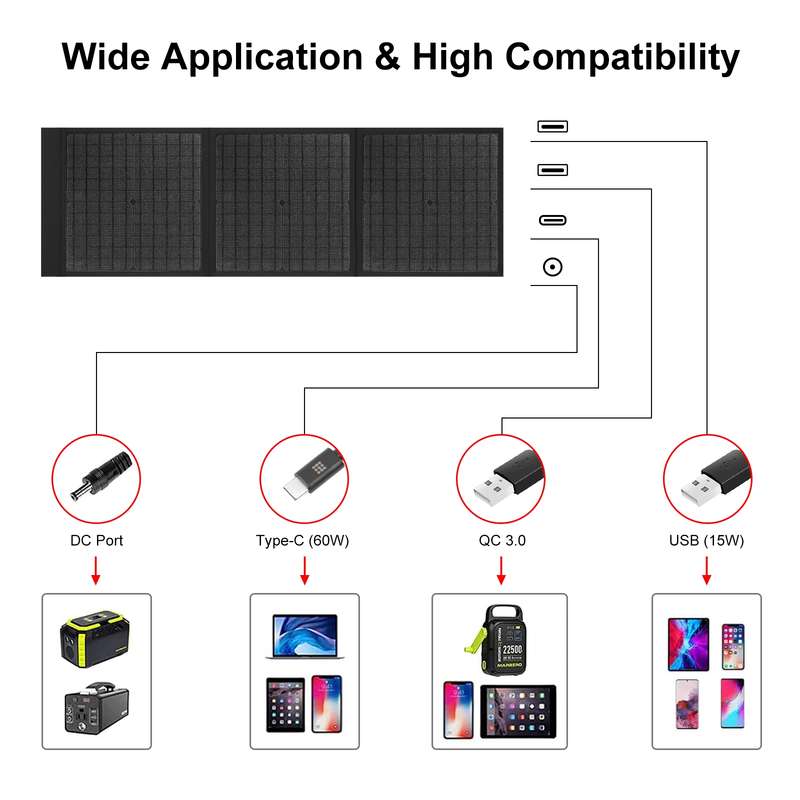

5. Connect directly to your device via the USB port.
6. Comes with a small pocket to keep the device safely stored during the charging process.

Specifications
1. Input voltage range: DC8-24V

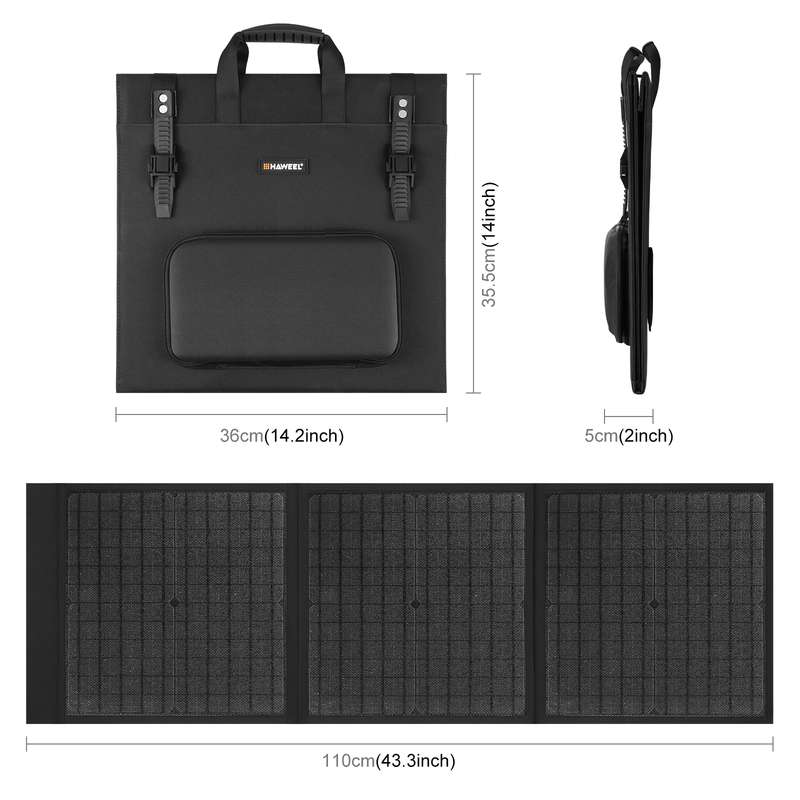

2. Dimensions: 36 x 35.5 x 5cm fold; 110 x 36cm unfold

DC interface
1. Output voltage: solar output voltage DC8-24V+/-0.4V
2. Protection: Anti-reverse charging protection (20A anti-reverse charging diode)
3. DC port specification: 5521 metal material

USB1 interface (black):
1. Output voltage: 5.1v+/-0.2v
2. Output power: 15W
3. Output protection: input over-voltage, under-voltage, output over-current, short-circuit protection, over-temperature protection of the whole machine. CC mode
4. Output charging protocol: support iOS 2.1A, suitable for Samsung 2.0A DP=1.2V, DM=1.2V Support BC1.2 DP and DM short circuit
5. Conversion efficiency: greater than 85%

USB2 interface (orange):
1. Output voltage: 5V-12V automatically adjusted according to the fast charging protocol
2. Output power: 18W (5V3A 9V2A 12V1.5A etc.)
3. Output protection: input over-voltage, under-voltage, output over-current, short-circuit protection, over-temperature protection of the whole machine. CC mode
4. Output charging protocol: support QC3.0/QC2.0 Qualcomm certificate number: 478786303-2
- Support QC3.0 Class A: 3.6v-12v (0.2v/step)
- Support QC2.0 Class A: 5V 9V 12V
- Support voltage configuration for Huawei FCP fast charge 5V 9V
- Support voltage configuration for Samsung AFC fast charge 5V 9V
- Support Spreadtrum SFCP fast charge 5V 9V 12V voltage configuration
- Support iOS 2.4A: DP=2.7V, DM=2.7V
- Support for Samsung 2.0A: DP=1.2V DM=1.2V
5. Conversion efficiency: greater than 85%

TYPE-C interface
1. Output voltage:
- 5V-3A is automatically adjusted according to the fast charging protocol
- 9V-3A is automatically adjusted according to the fast charging protocol
- 12V-3A is automatically adjusted according to the fast charging protocol
- 15V-3A is automatically adjusted according to the fast charging protocol
- 20V-3A is automatically adjusted according to the fast charging protocol
- 13.2V-3.16A is automatically adjusted according to the fast charging protocol
2. Output power: 60W
3. Output protection: input over-voltage, under-voltage, output over-current, short-circuit protection, over-temperature protection of the whole machine. The output has CV/CC characteristics (the output current is less than the set value, and the output CV mode; CC mode
4. Output charging protocol:
- Works with iOS 2.4A
- For Samsung 5V2A
- DCP-1.5A
- PPS/PD3.0/PD2.0
- QC3.0/QC2.0
- AFC
- FCP
- PE2.0/PE1.1
5. Conversion efficiency: greater than 94%


HWL2764B
