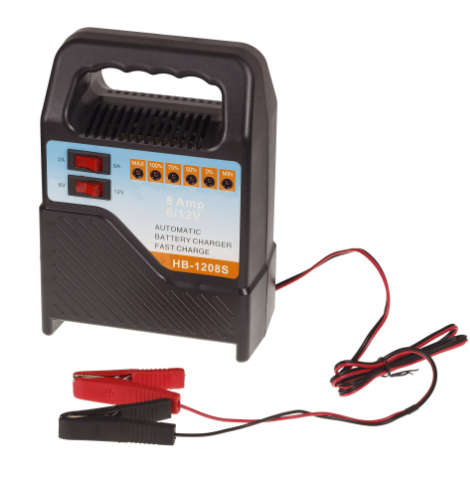

HB-1208S 6V/12V Battery Charger

Single-Phase Portable Battery Charger (Model: HB-1208S)

The HB-1208S is a versatile, single-phase portable battery charger designed for charging lead-acid batteries. It is suitable for a wide range of vehicles, including cars, vans, and light trucks. With the option to select between normal or quick (boost) charging modes, this charger is an essential tool for maintaining your vehicles battery under various conditions.

Key Features:

• Charging Capabilities:

  • Supports 6V and 12V lead-acid batteries.
  • Selector for normal charging or quick (boost) charging, allowing for flexibility depending on your needs.

• Durability and Protection:

  • Overload Protection: Safeguards the charger from overloading during operation.
  • Reverse Polarity Protection: Prevents damage if the battery connections are reversed.
  • Short-circuit Protection: Protects both the charger and battery from short circuits.
  • IP23C Rating: Built to withstand use in harsh conditions, providing protection against water spray and dust.

• User-Friendly Design:

  • Built-in LED Display: Clearly indicates the charging rate and battery charge level for easy monitoring.
  • LED Indicators: Shows current functions, allowing quick identification of charging status.

• Convenience Features:

  • Various Plugs: Multiple plug options for different user needs.
  • Long Cables: Includes 1.4-meter charge cable and 1.7-meter power cord with plug, offering flexibility and ease of use.

• Color Options:

  • Available in Black, Red, Yellow, and Blue, providing aesthetic variety.

Technical Specifications:

• Model: HB-1208S

• Input Voltage: 220V, 50Hz

• Charging Voltage: 6V / 12V

• Rated Power: 108W

• Rated Current / Starting Current:

  • 2.5A / 5A for normal charge
  • 6.3A / 5A for quick (boost) charge

• Battery Compatibility:

  • Suitable for batteries with a reference capacity of 10100 Ah.

• Insulation Class: H (high temperature resistant)

Certifications & Compliance:

• ITS (International Testing Standard)
• CE-EMC (Electromagnetic Compatibility)
• CE-LVD (Low Voltage Directive)
• ROHS (Restriction of Hazardous Substances)
• REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals)

Package Dimensions & Weight:

• Weight: 2.5 kg
• Dimensions:
  • Length: 26.00 cm
  • Width: 17.80 cm
  • Height: 10.20 cm
