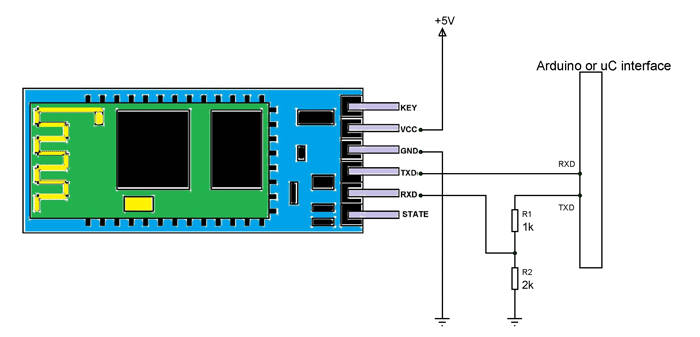

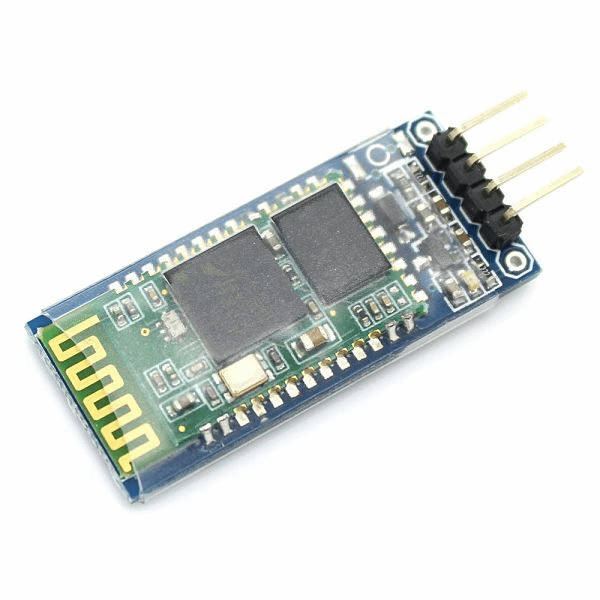

This module is a slave mode Bluetooth module and it is perfect to connect master Bluetooth devices like cell phones to your Arduino. It is very easy to use and simply needs to be connected to your Arduino's TX and RX ports to get it going.
The power can be adjusted -23dbm, -6dbm, 0dbm, 6dbm, through an AT Command (AT+POWER).
Hc 06 Bluetooth module specifications
Input voltage: 3.6-6V
TTL voltage: 3.3V
Power consumption: 0.5 mA for standby, Active 8.5 mA,
Working frequency:2.4GHz ISM band .
Modulation method: GFSK(Gaussian Frequency Shift Keying) .
RF Power:4dBm, Class 2 .
Sensitivity:-84dBm at 0.1% BER .
Speed: 2.1Mbps(Max) / 160 kbps (Asynchronous), 1Mbps/1Mbps(Max) (Synchronous).
Security: Authentication and encryption. Service
Working temperature:5 ~ +65 Centigrade
Create tutorial here: http://www.instructables.com/id/Tutorial-Using-HC06-Bluetooth-to-Serial
PDF Data:
HC06 Bluetooth Module Datasheet
