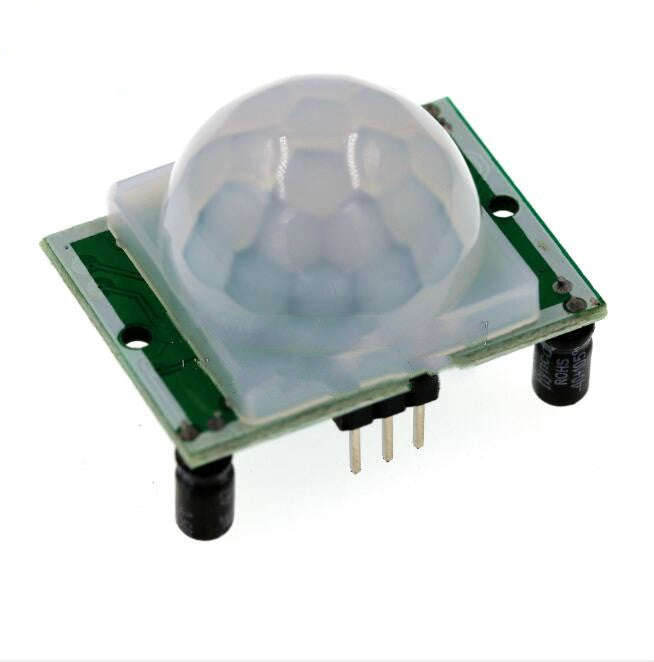

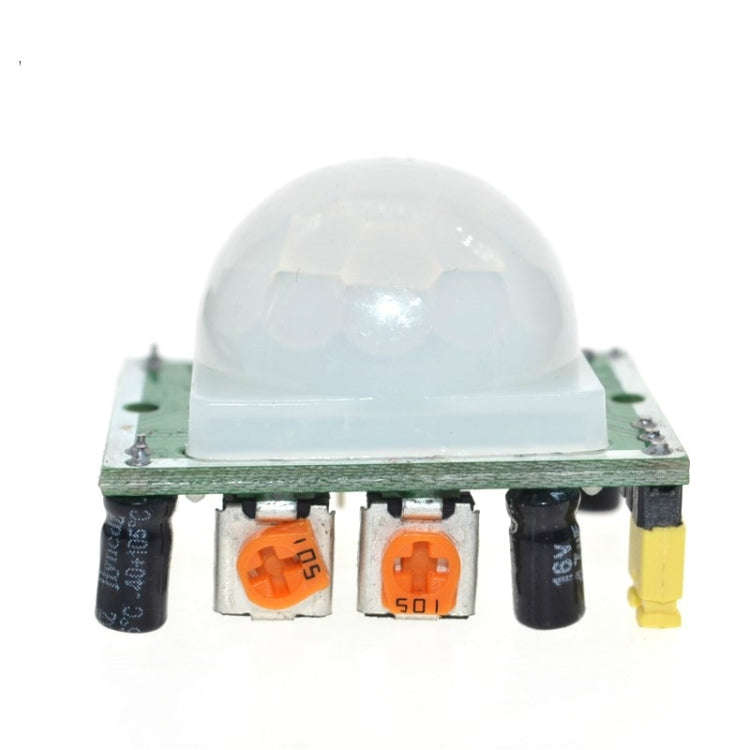

HC-SR501 Module Human Infrared Sensor Module SUNLEPHANT Pyroelectric Infrared Sensor
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
TBD0585181
Bob Shop ID
605075316
1. Operating voltage range: DC voltage 5-20V
2. Static current: <65uA
3. Level output: 3.3 V high / low 0V
4. Trigger mode: L non-repeatable trigger / H repeat trigger (default repeat trigger)
5. Delay time: 0.5-200S (adjustable) can be made in the range of a few seconds - tens of minutes
6. Blocking time: 0.2S can be made in the range of a few seconds - tens of seconds
7. Circuit board dimensions: 32mm*24mm
8. Sensing range: <120 degree cone angle, in 7m
9. Working temperature: -15-+70 degrees
10. Induction lens size: diameter: 23mm
