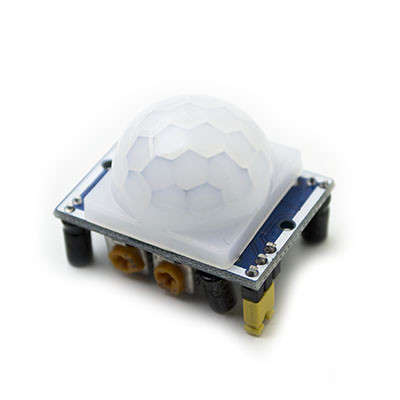

HC-SR501 PIR motion sensor
Pyroelectric sensor module developed for human body detection that has two adjustable pots. One for sensitivity and one to adjust the duration of the trigger signal.
Specifications:
ᅡᅠᅡᅠᅡᅠ Input Voltage: DC 4.5-20V
ᅡᅠᅡᅠᅡᅠ Static current: 50uA
ᅡᅠᅡᅠᅡᅠ Output signal: 0,3V or 5V (Output high when motion detected)
ᅡᅠᅡᅠᅡᅠ Sentry Angle: 110 degree
ᅡᅠᅡᅠᅡᅠ Sentry Distance: max 7 m
ᅡᅠᅡᅠᅡᅠ Shunt for setting overide trigger: H - Yes, L - No
Dimentions:
ᅡᅠᅡᅠᅡᅠ 32x24mm
ᅡᅠᅡᅠᅡᅠ Distance between screw: 28mm
ᅡᅠᅡᅠᅡᅠ Lens dimension in diameter: 23mm
