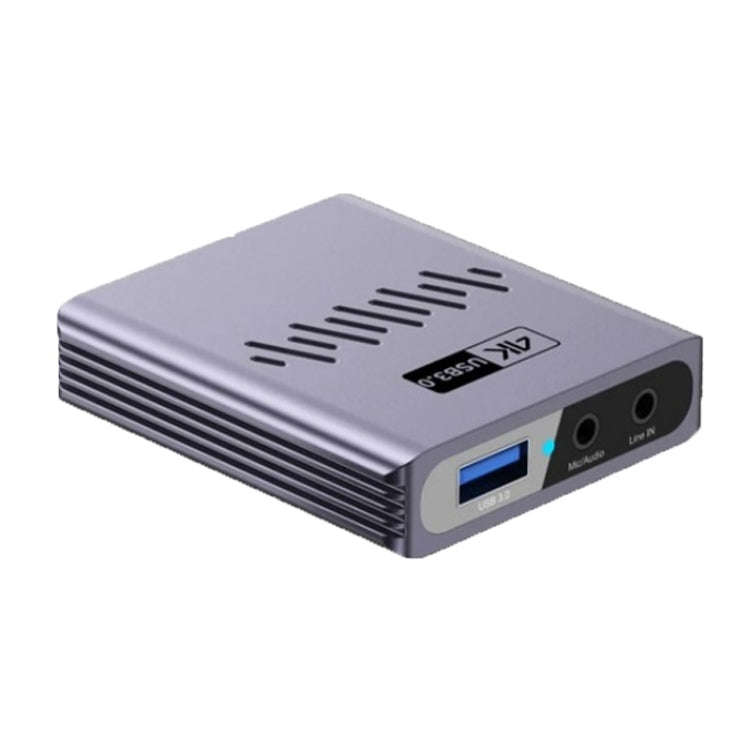

1.4K high-definition video capture card uses advanced chips to transmit and capture videos quickly, smoothly and without lag
2.It adopts aviation aluminum shell, which is sturdy and durable, has good heat dissipation performance, lightweight and is easy to carry
3.Versatile for real-time gaming, live streaming, home theater, video conferencing, teaching, capture and recording

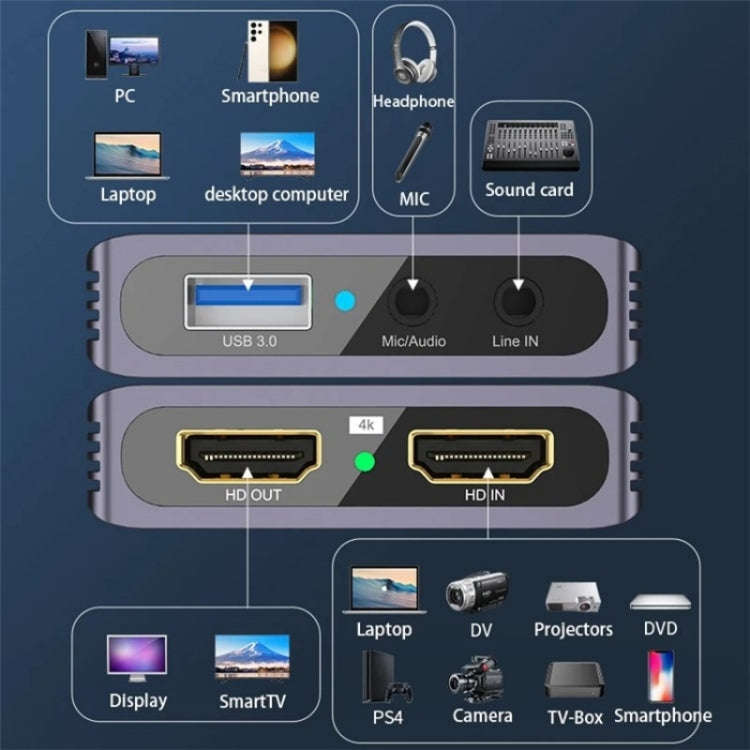

4.Widely compatible with projectors, laptops, cameras, set-top boxes, DVDs, for Nintendo Switch, for PS4/5, for Xbox game consoles, etc.
5.Suitable social media: Youtube Live, Facebook Live, Twitch, Twitter, Wowza, LinkedIn, XSplit, Google Hangouts, Skype, Zoom, Microsoft Teams, etc.
6.Support capture software: OBS, VLR, Potplayer, QuickTime, Amcap, Wirecast, vidblasterX, Resolume, Windows Media encoder, Adobe Flash Media Live encoder, Real Producer Plus, etc.
7.Support HDCP 1.4
Specification:

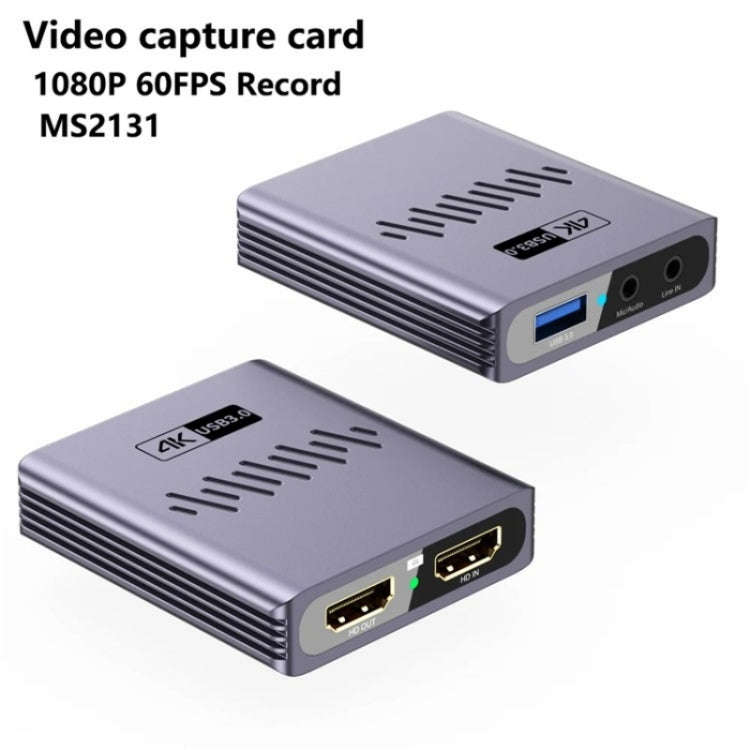

1.Chip: MS2131
2.Input (HDMI): Max 4K 30Hz
3.Output (USB) (recording, up to 4K 30Hz):
4.MJPG 1920X1080P 60FPS/4K 3840X2160 18FPS/2K 2560X1600 30FPS
5.YUY2 1920X1080P 60FPS/4K 3840X2160 18FPS/2K 2560X1600 30FPS
6.Microphone: 3.5mm
7.Audio output: 3.5mm
8.Working temperature: 0-70 degree centigrade
9.Supported operating systems: Android, for Mac OS, Linux, Windows 7 or higher
Note:
1.Before purchasing, make sure the device you need to shoot has video signal output capabilities.
2.The above data comes from the test of the capture card on PotPlayer software.
3.If the capture software is installed on the mobile phone, the maximum capture effect of the mobile phone may only be 1080P. (Because the interface transmission capabilities of most Android phones are insufficient)
4.For better display and less lag, we recommend: desktop PC: CPU: Intel Corei5-6XXX or higher/GUP: NVIDIA GeForce GTX1060 or higher/RAM: 8G, laptop: CPU: for Intel Coreri7-7700HQ or higher/GGP: NVIDIA GeForceGTX1050Ti or higher/RRAM: 8G.
5.If you do not use the cable that comes with this product, the resolution can only reach up to 1280*720P. Or cant work.
6.If the quality of the HDMI cable is not good, the display will also be poor. It is recommended to use HDMI cables above 2.0.
7.For PlayStation 4/PlayStation 5 or other devices, you need to turn off HDCP. After HDCP is turned on, the video signal will be encrypted and cannot be shot. Because the HDCP for Apple TV may not be turned off and can only be forced to crack with the help of other devices.
8.Due to differences between different monitors, pictures may not reflect the actual color of the item.
