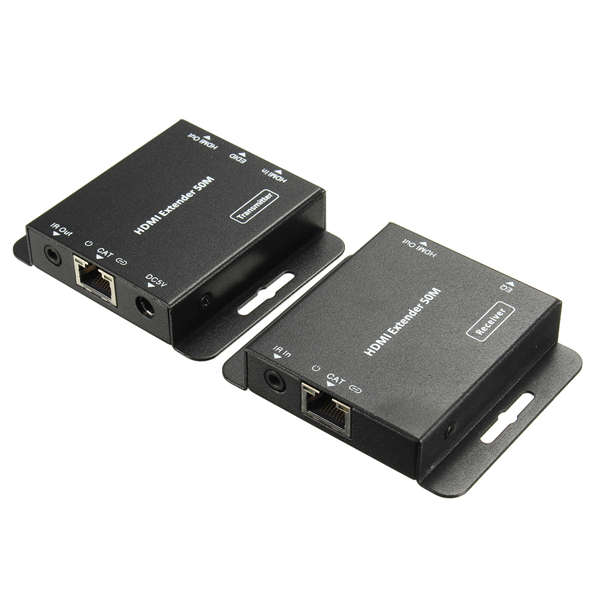

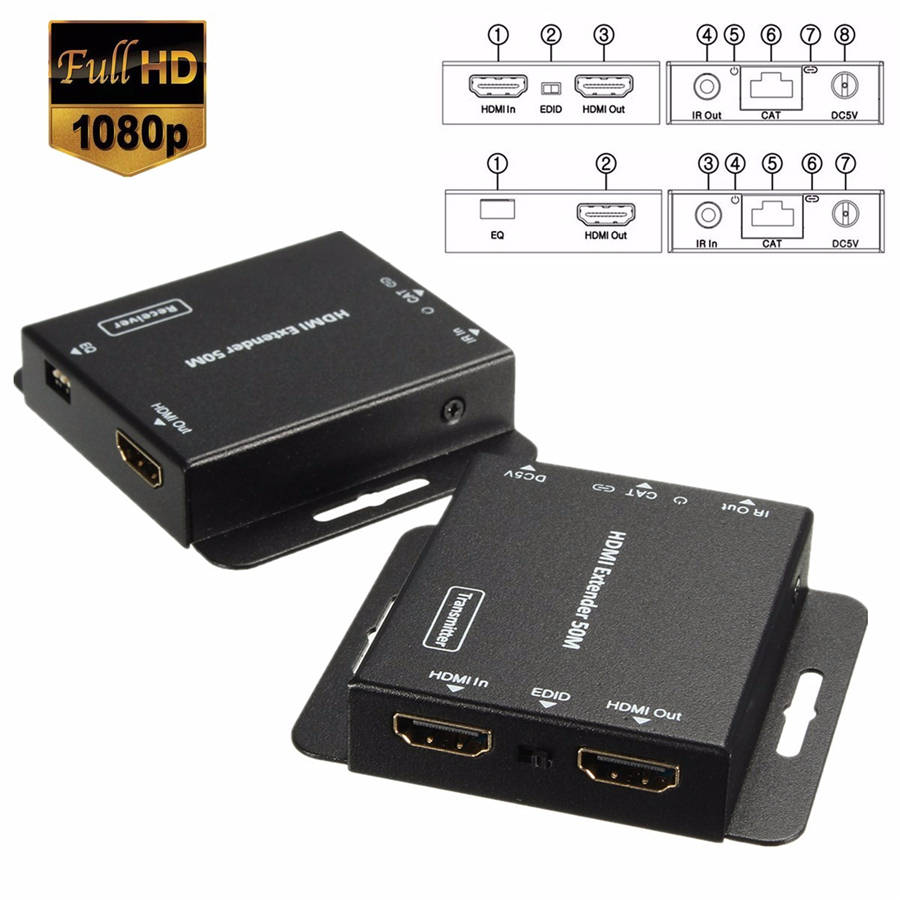

HD 50M EDID IR HDMI Over Ethernet Network RJ45 LAN CAT5e CAT6 Adapter Extender

Features:

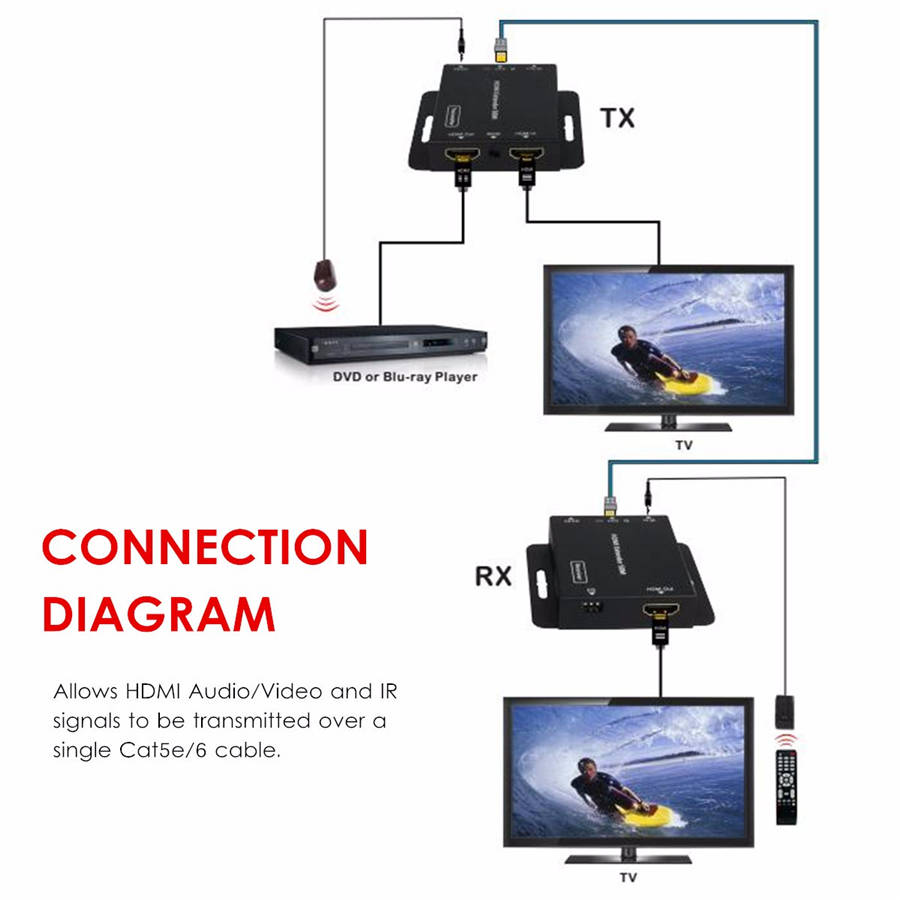

Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable.
Support copy EDID from receiver display or loop out display
Allows for cascading via additional HDMI loop out port.
Support Power over cable function.
Transmission Range: Extends 1080p resolution up to 164ft/50m over a single Cat5e or Cat6 cable.
Works with HDMI and HDCP compliant devices
Supports up to 1080p High Definition resolution.

Specifications:

Video Bandwidth: Single-link 165Mhz [4.95Gbps]
Video Support: 480i/480p/720p/1080i/1080p@60
Audio Support: Surround Sound (up to 7.1 ch) or stereo digital audio
Transmission Range: HD [1080p 24-bit color] – up to 50m [164ft]
Input TMDS Signal: 3.3 volts
Input DDC Signal: 5.0 volts/P-P
ESD Protection: Human Body model: +/- 8 kV (air-gap discharge) +/- 4 kV (contact discharge)

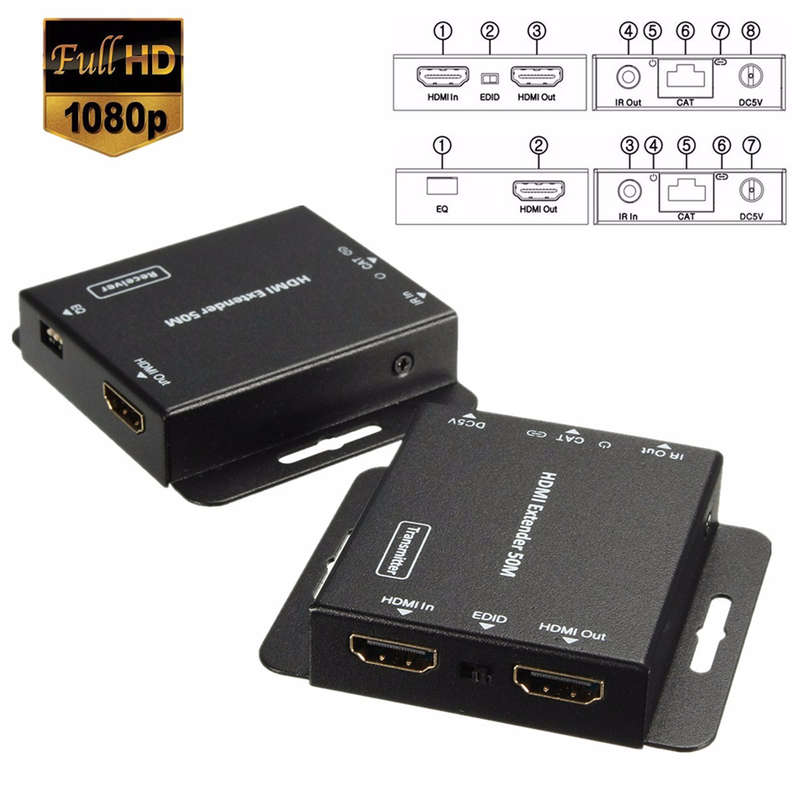

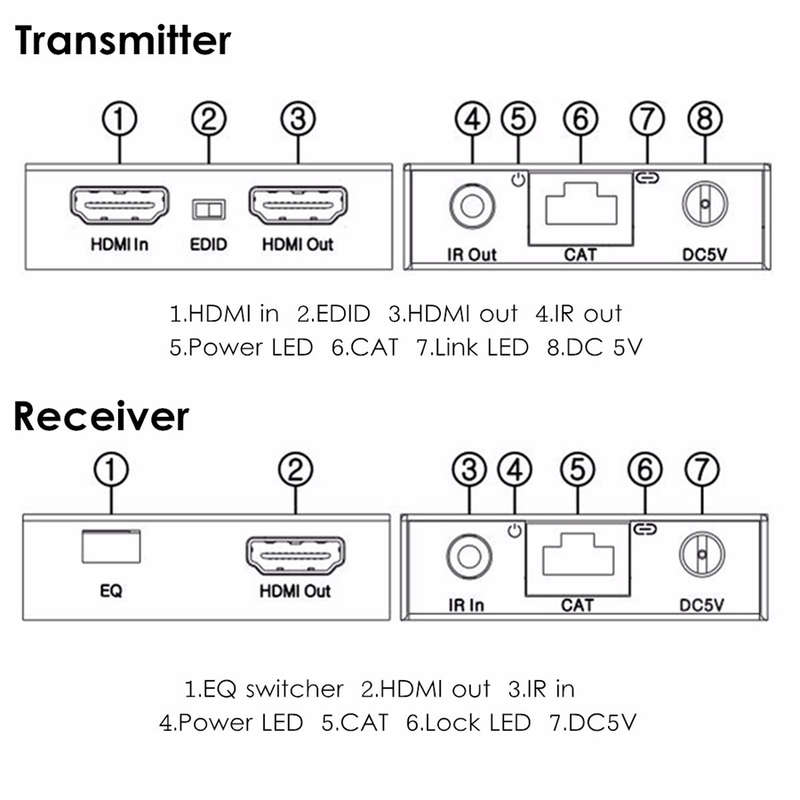

HDMI connector: Type A 19 pin female
RJ-45 connector: WE/SS 8P8C

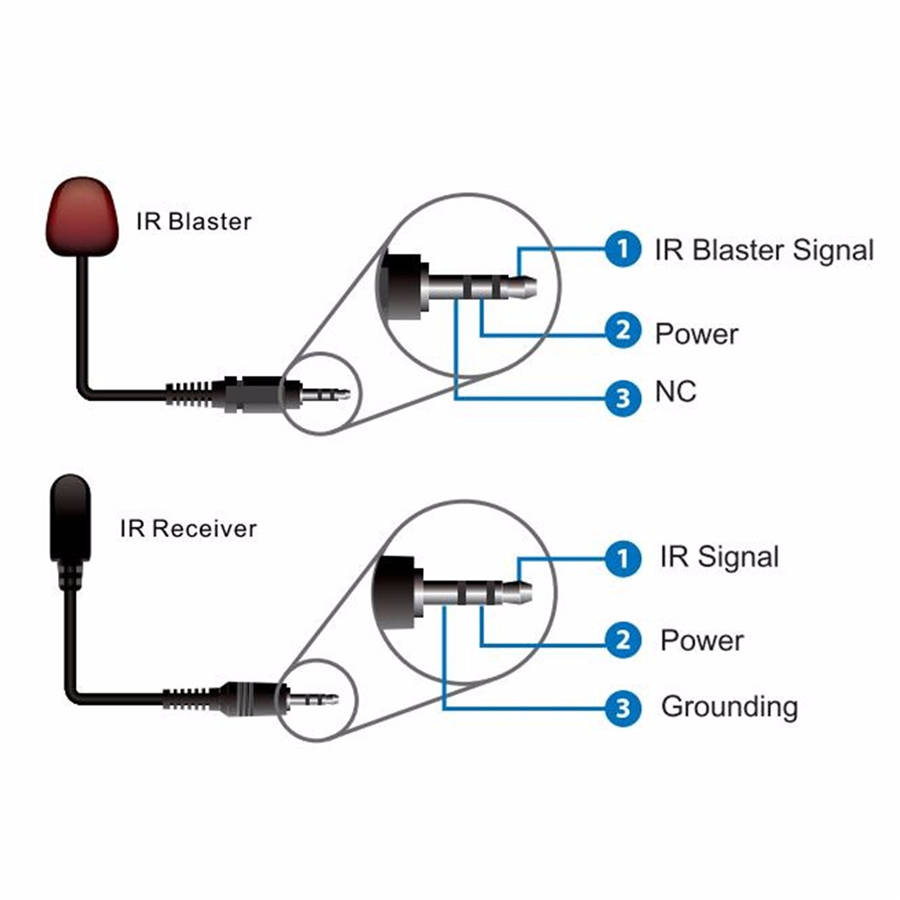

3.5mm connector: (TX and RX) IR Receiver/IR Blaster
Housing: Metal enclosure
Power Supply: (1) 5V1A DC
Power consumption: 1.5 watts (TX); 1.0 watts (RX)
Operation temperature: 32~104 °F
Storage temperature: -4 ~140 °F
Relative humidity: 20~90 % RH (no condensation)

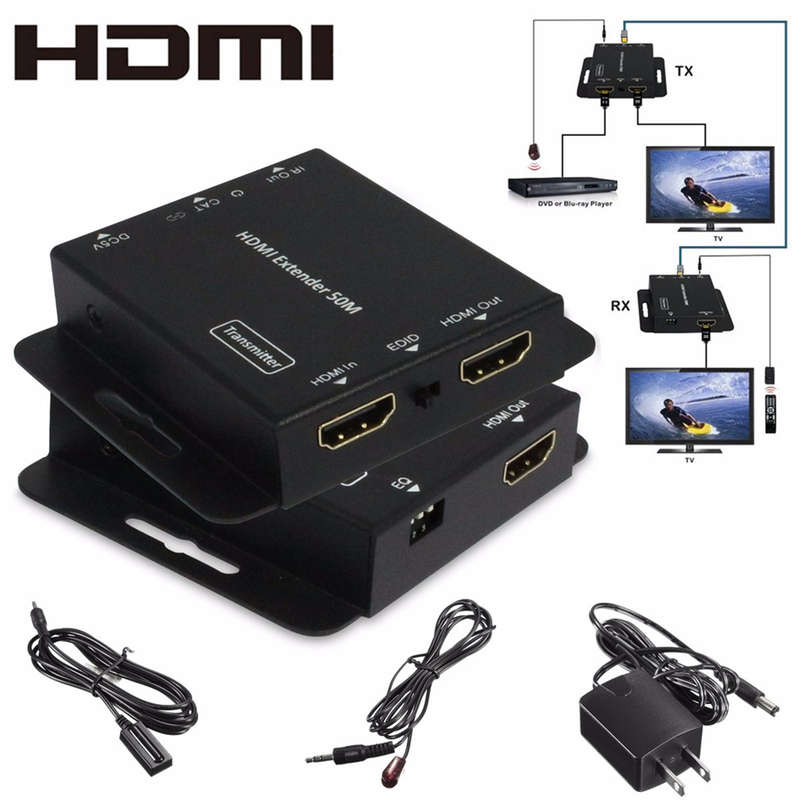

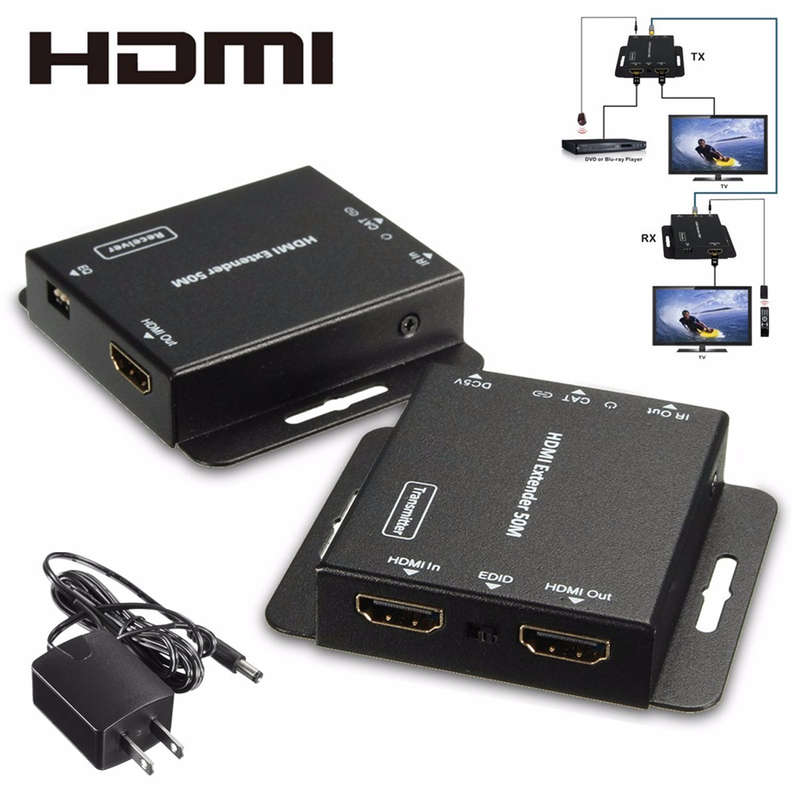

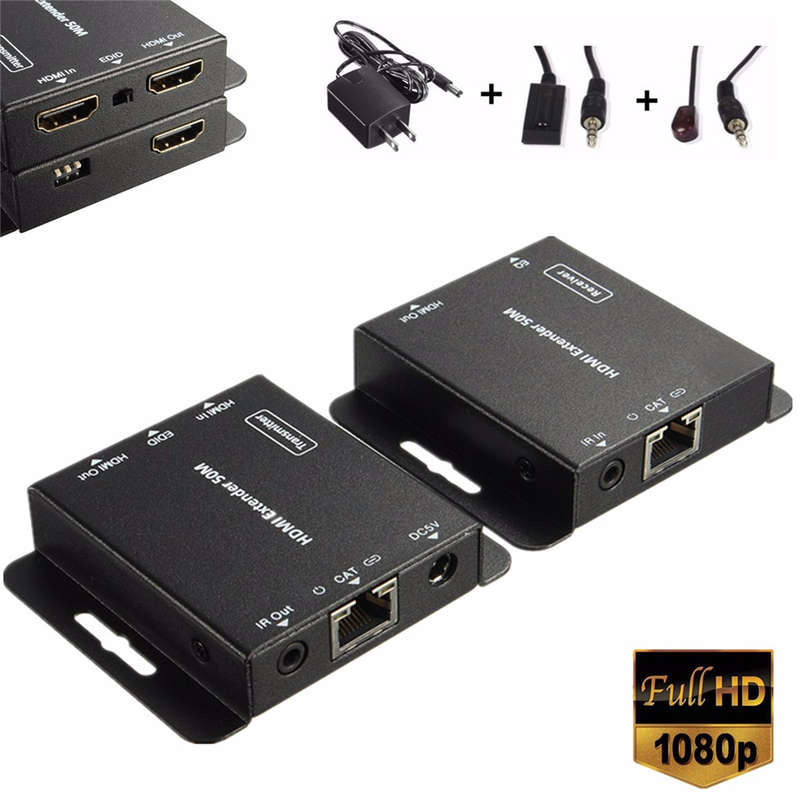

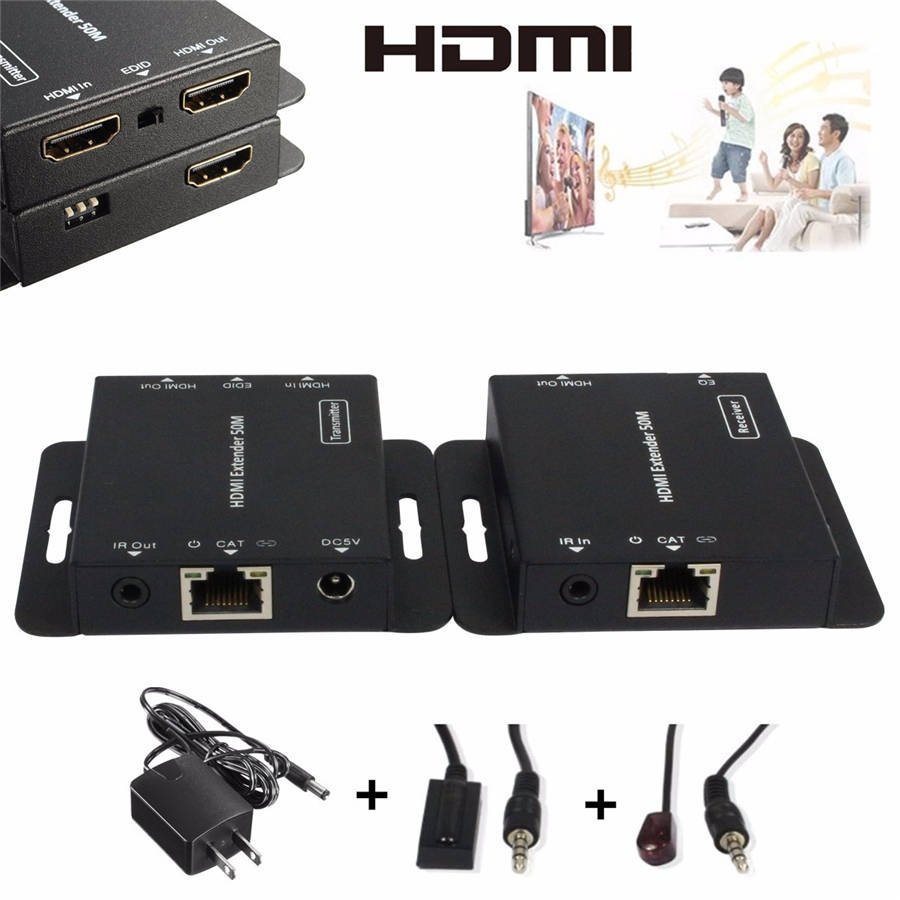

Package Included:

1 x HDMI Transmitter
1 x HDMI Receiver
1 x Windband IR Tx cable
1 x Windband IR Rx cable
1 x Power Adaptor (Free adapter will be sent according to your country)
1 x English User Manual
